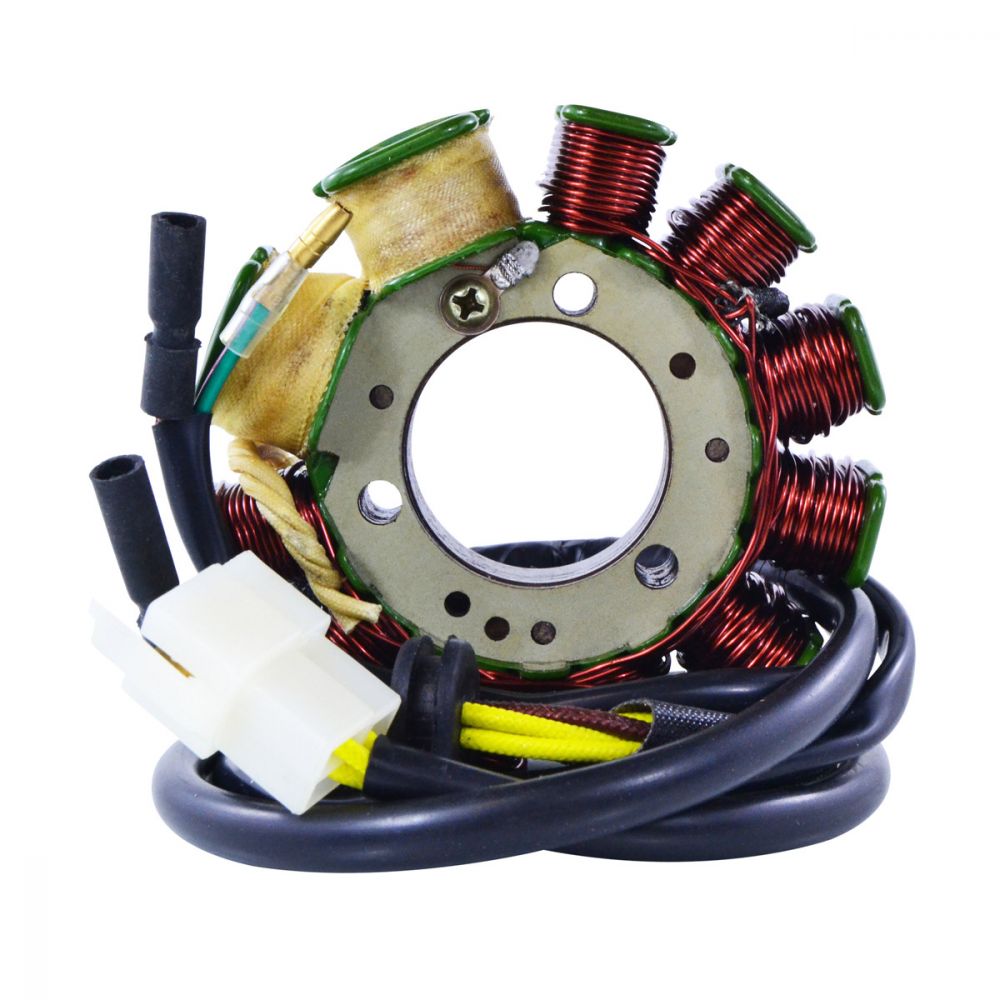

RMStator Stator RMS010-103816

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 18 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 760 mm

Other specifications :

Number of wires : 6
Number of plugs : 4
Number of pins : 6

Wire to wire resistance :

Alternator : Between Each Yellow = 0.4 ohms +-20%
Source : Black/Red to Ground = 200 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-103816

Fitment:

• 1991-1997 Honda Nighthawk 250 CB250
• 1999-2008 Honda Nighthawk 250 CB250

Note: Image is for reference only, actual product may vary slightly.
