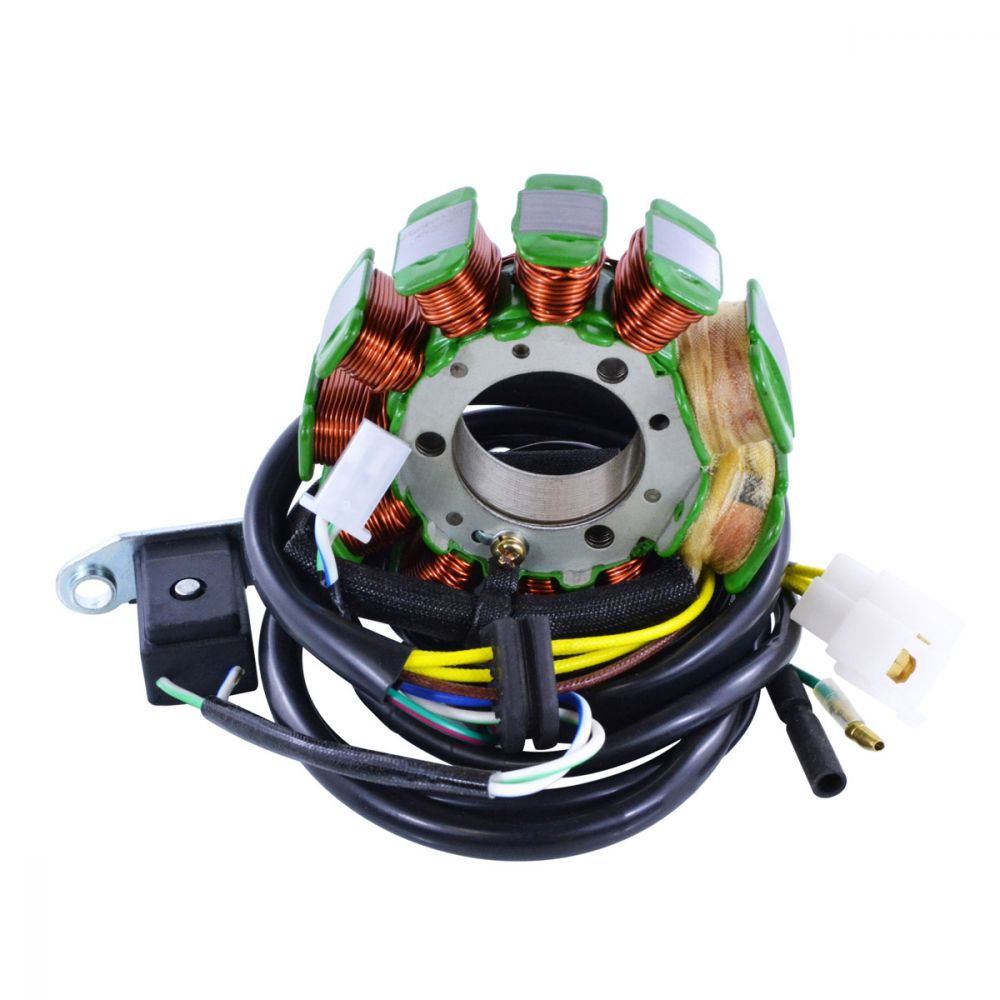

RMStator Stator RMS010-103828
RMStator Stator RMS010-103828
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 18 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 800 mm
Length of pickup coil's wire to grommet : 120 mm
Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Wire to wire resistance :
Alternator : Between Each Yellow = 0.4 ohms +-20%
Pickup : Green/White to Blue/White = 125 ohms +-20%
Source : Black/Red to Ground = 200 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-103828
Fitment:
- 1996-1997 Honda Rebel 250 CMX250C
- 1999-2009 Honda Rebel 250 CMX250C
- 2012-2016 Honda Rebel 250 CMX250C
Note: Image is for reference only, actual product may vary slightly.
