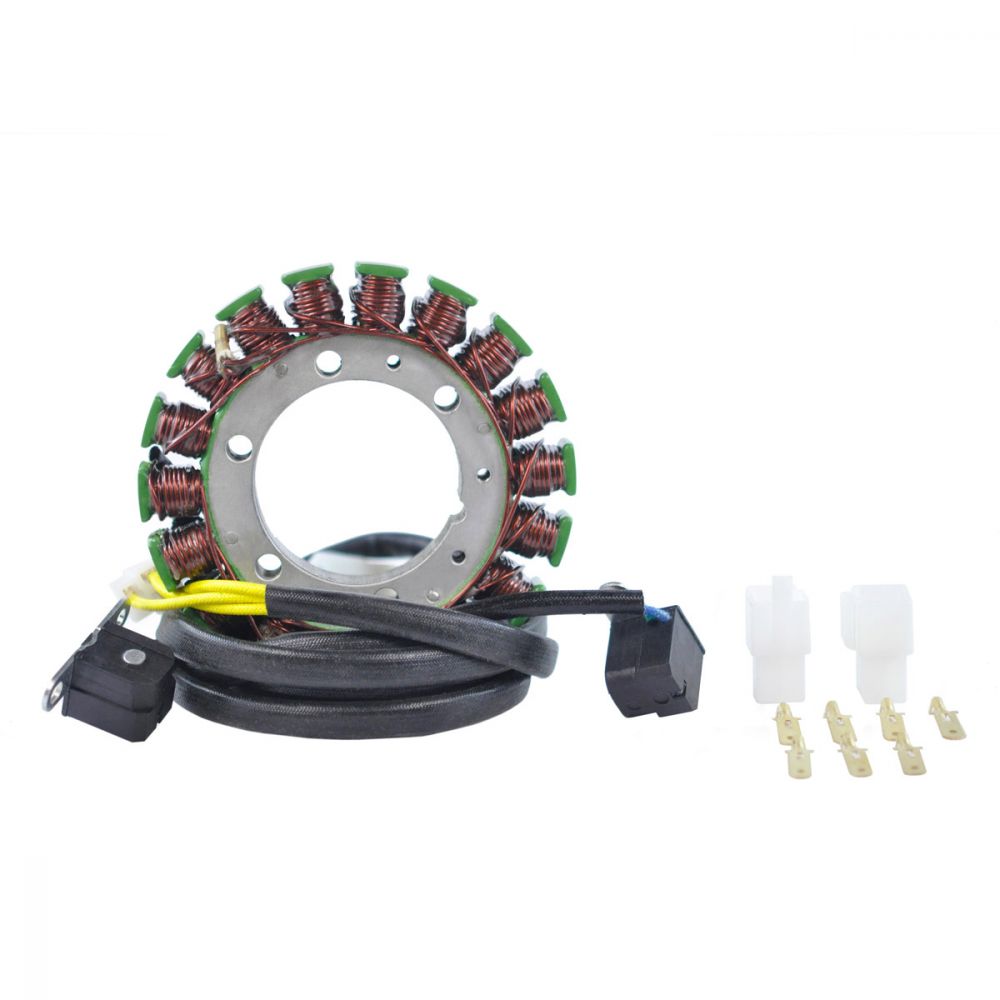

RMStator Generator Stator RMS010-104006

Brand new aftermarket Generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 105 mm
Thickness : 20 mm
Length of wires stator to grommet : 160 mm
Length of wires grommet to plug : 950 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :

Number of wires : 5
Number of plugs : 3
Number of pins : 5

Wire to wire resistance :

Alternator : White between each White = 0.6 ohms +-20%
Pickup : Green to Blue = 500 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104006

Fitment:

• 2012-2021 Kawasaki Brute Force 750 KVF750 4x4i
• 2012-2023 Kawasaki Brute Force 750 KVF750 4x4i EPS
• 2014-2022 Kawasaki Teryx 800 KRF800
• 2012-2013 Kawasaki Teryx4 750 KRT750A 4x4
• 2014-2022 Kawasaki Teryx4 800 KRT800

Note: Image is for reference only, actual product may vary slightly.
