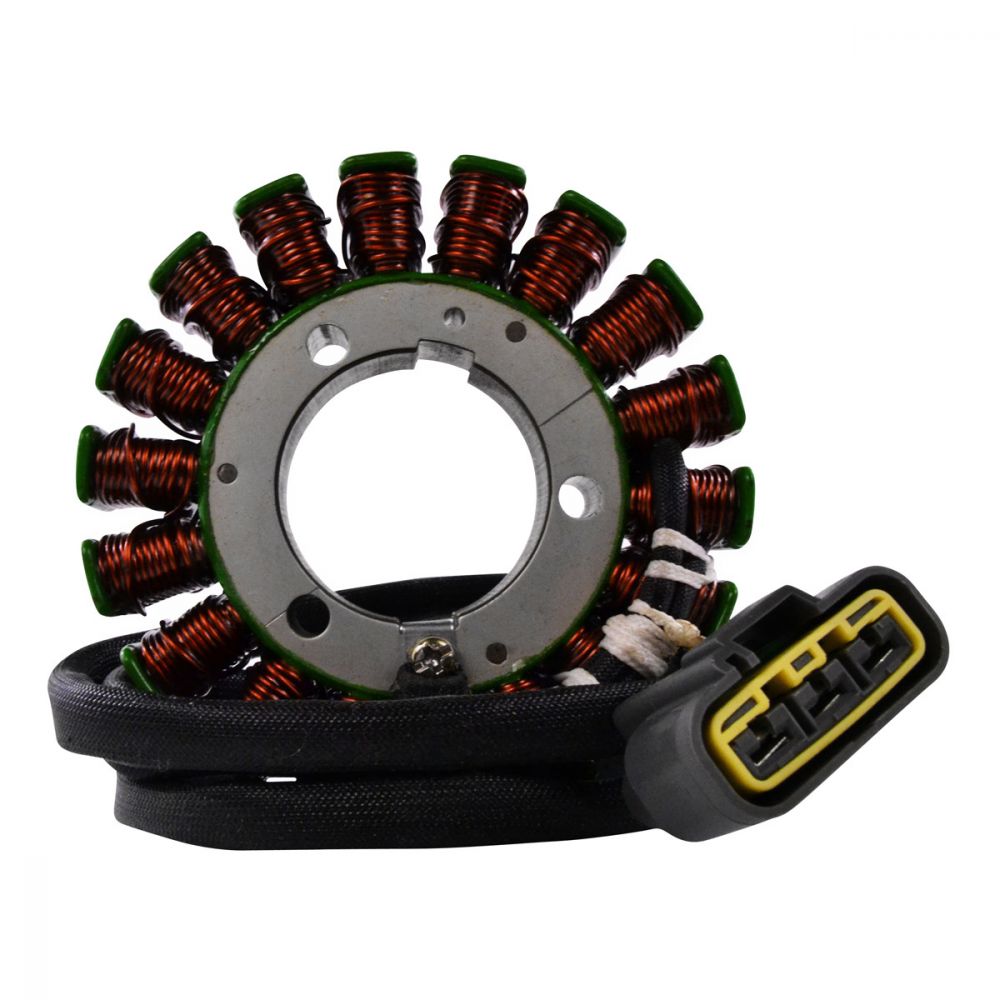

RMStator Stator RMS010-104019
Customer Ratings
RMStator Stator RMS010-104019
RMStator Stator RMS010-104019
Brand new aftermarket stator
- Direct replacement to your original unit
- You must re-install your original grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 53 mm
Exterior diameter : 114 mm
Thickness : 17 mm
Length of wires stator to grommet : 100 mm
Length of wires grommet to plug : 300 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : White to White = 0.4 ohms +-20%
Pickup : Blue to Green = 200 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104019
Fitment:
- 2013-2017 Arctic Cat 1000 4x4 TRV
- 2015-2017 Arctic Cat 1000 4x4 XT
- 2014 Arctic Cat 500 4X4 Utility
- 2014 Arctic Cat 550 4x4 EFI F/C
- 2014-2015 Arctic Cat 550 4x4 TRV Automatic
- 2013-2014 Arctic Cat 700 4X4
- 2013-2014 Arctic Cat 700 4x4 H1 EFI Utility
- 2013-2016 Arctic Cat 700 4x4 TRV
- 2019 Arctic Cat 700 4x4 TRV
- 2016 Arctic Cat Alterra 550 4X4
- 2016-2018 Arctic Cat Alterra 700
- 2017 Arctic Cat Alterra TRV 1000 4x4 XT EPS
- 2017 Arctic Cat Alterra TRV 550 4x4 XT EPS
- 2017 Arctic Cat Alterra TRV 700
- 2013-2017 Arctic Cat MudPro 1000 Limited
- 2013-2018 Arctic Cat MudPro 700 Limited
- 2014-2015 Arctic Cat Prowler 500
- 2017-2018 Arctic Cat Prowler 500
- 2015 Arctic Cat Prowler 550 4x4 Flatbed
- 2016-2017 Arctic Cat Prowler HDX 500 4X4
- 2016-2017 Arctic Cat Prowler HDX 700 4X4
- 2015-2017 Arctic Cat Prowler XT 1000 4x4 EPS
- 2013-2017 Arctic Cat Prowler XTX 700 4X4
- 2013-2019 Arctic Cat TBX 700
- 2017-2018 Arctic Cat VLX 700
- 2015 Arctic Cat XR 550 4X4
- 2015 Arctic Cat XR 700 4X4
Note: Image is for reference only, actual product may vary slightly.
