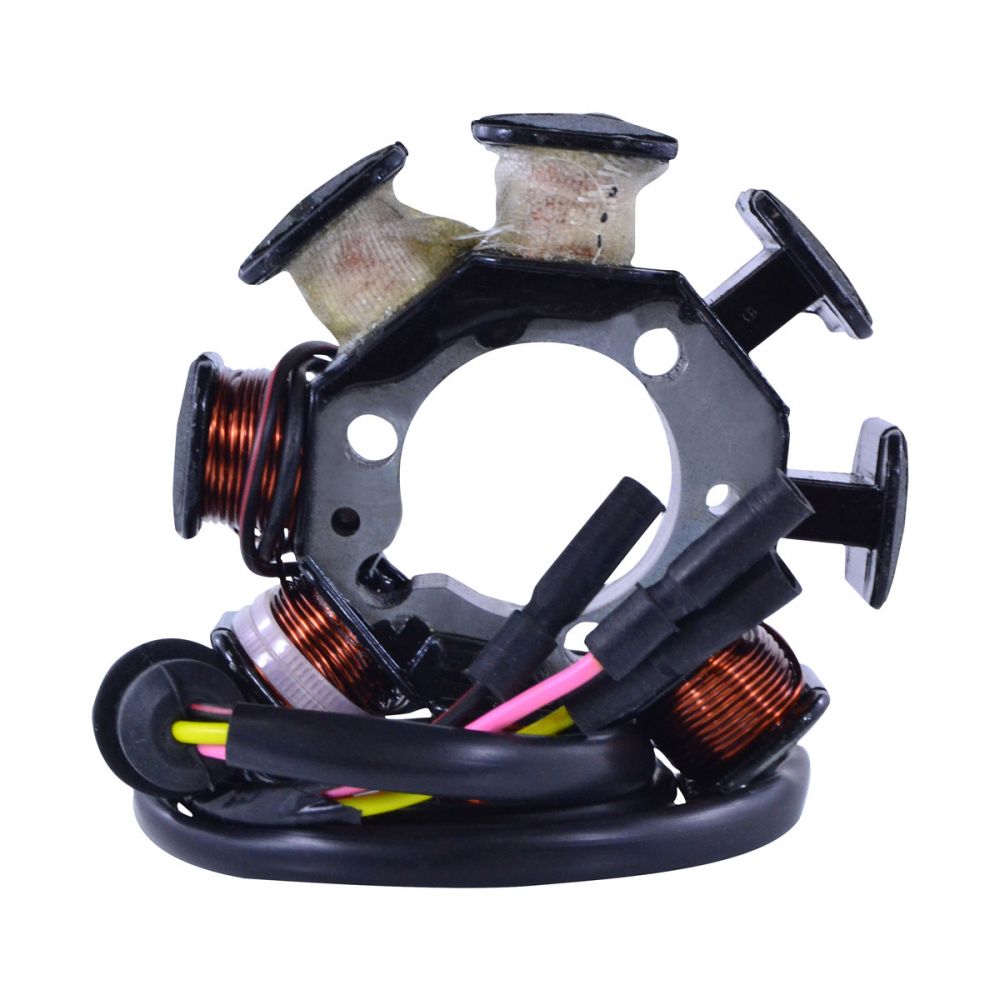

RMStator Denso Stator For 1990-2002 Honda XR200R RMS010-104201
Customer Ratings
RMStator Denso Stator For 1990-2002 Honda XR200R RMS010-104201
RMStator Denso Stator For 1990-2002 Honda XR200R RMS010-104201
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 36 mm
Exterior diameter : 96 mm
Thickness : 37 mm
Length of wires stator to grommet : 30 mm
Length of wires grommet to plug : 645 mm
Other specifications :
Number of wires : 3
Number of plugs : 3
Number of pins : 3
Number of poles : 8
Wire to wire resistance :
Alternator : Yellow to pink = 0.4 ohms +-20%
Alternator to ground = O.L
Source : Black/red to ground = 350 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104201
Fitment:
- 1990-2002 Honda XR200R
Note: Image is for reference only, actual product may vary slightly.
