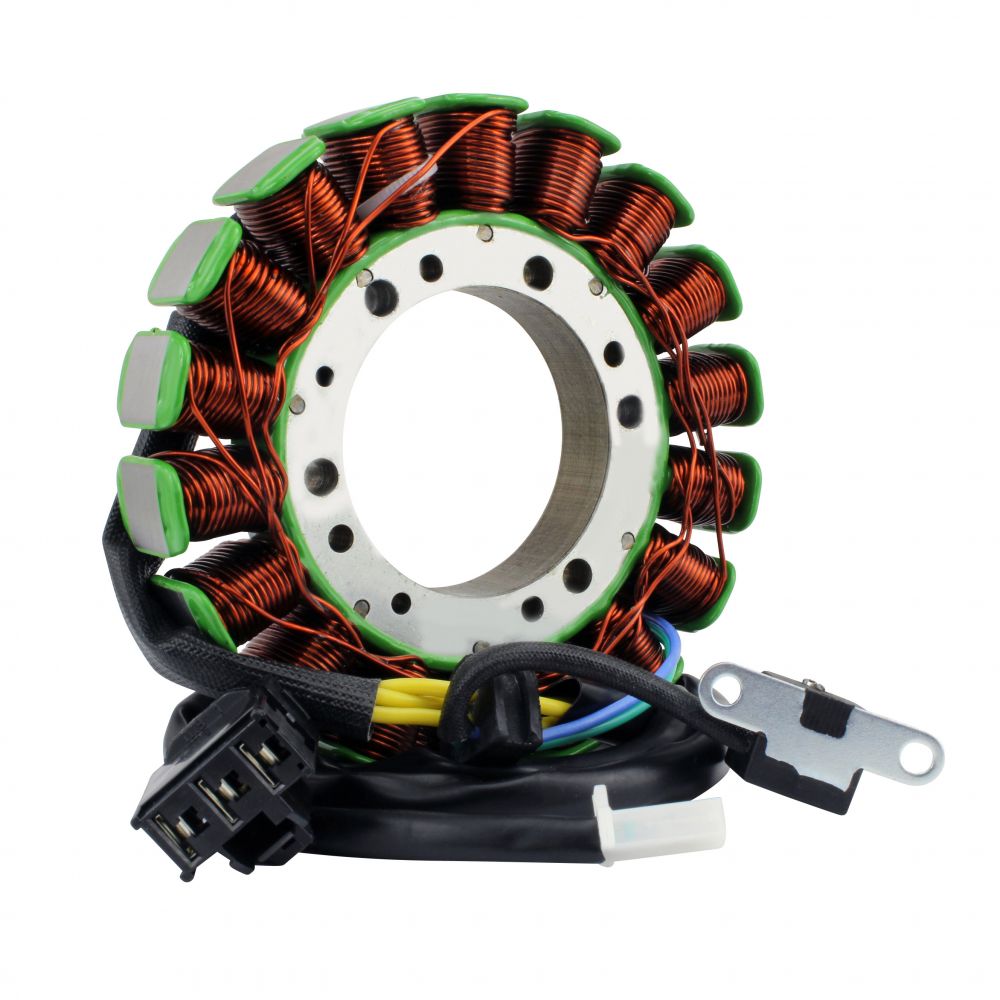

RMStator Stator RMS010-104389
Customer Ratings
RMStator Stator RMS010-104389
RMStator Stator RMS010-104389
Brand new aftermarket stator
- Direct replacement to your original unit
- You must re-install your original grommet (see picture).
- Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 58 mm
Exterior diameter : 130 mm
Thickness : 20 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 800 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Blue to Green = 500 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104389
Fitment:
- 2003-2009 Suzuki Burgman 650 AN650
- 2011-2012 Suzuki Burgman 650 AN650
Note: Image is for reference only, actual product may vary slightly.
