RMStator 4-Pole Stator RMS010-104525

Brand new aftermarket 4-Poles stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 36 mm
Exterior diameter : 84 mm
Thickness : 12 mm
Length of stator to grommet : 75 mm
Length of wires grommet to plug : 480 mm
Length of pickup coil's wire to grommet : 40 mm

Other specifications :

Number of wires : 2
Number of plugs : 1
Number of pins : 2
Number of poles : 4

Wire to wire resistance :

Alternator : Black / Red to Ground = 1.0 ohms +-20%
Pickup : Black / Blue to Ground = 200 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104525

Fitment:

• 2006-2009 Suzuki Quadsport Z50 LTZ50 2x4
• 2016-2019 Suzuki Quadsport Z50 LTZ50 2x4
• 2007-2009 Suzuki Quadsport Z90 LTZ90 2x4
• 2014 Suzuki Quadsport Z90 LTZ90 2x4
• 2016-2020 Suzuki Quadsport Z90 LTZ90 2x4

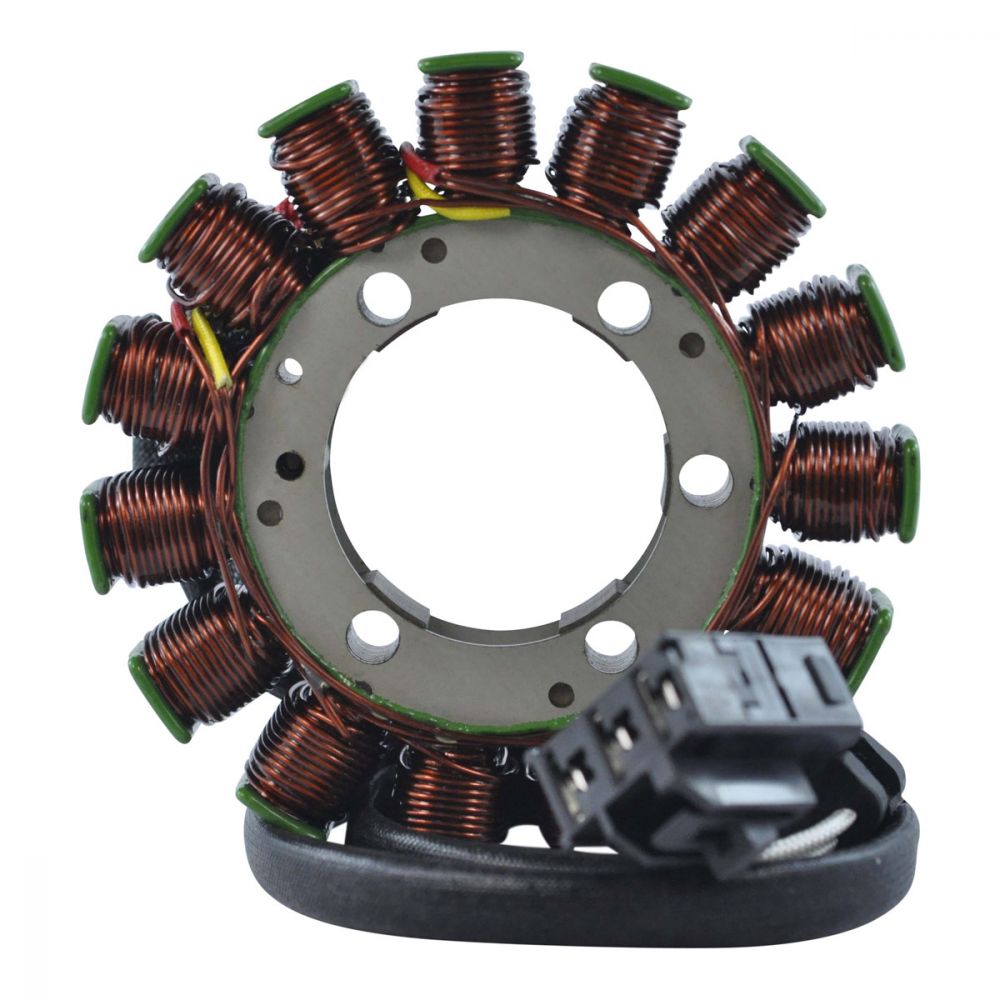

Note: Image is for reference only, actual product may vary slightly.
