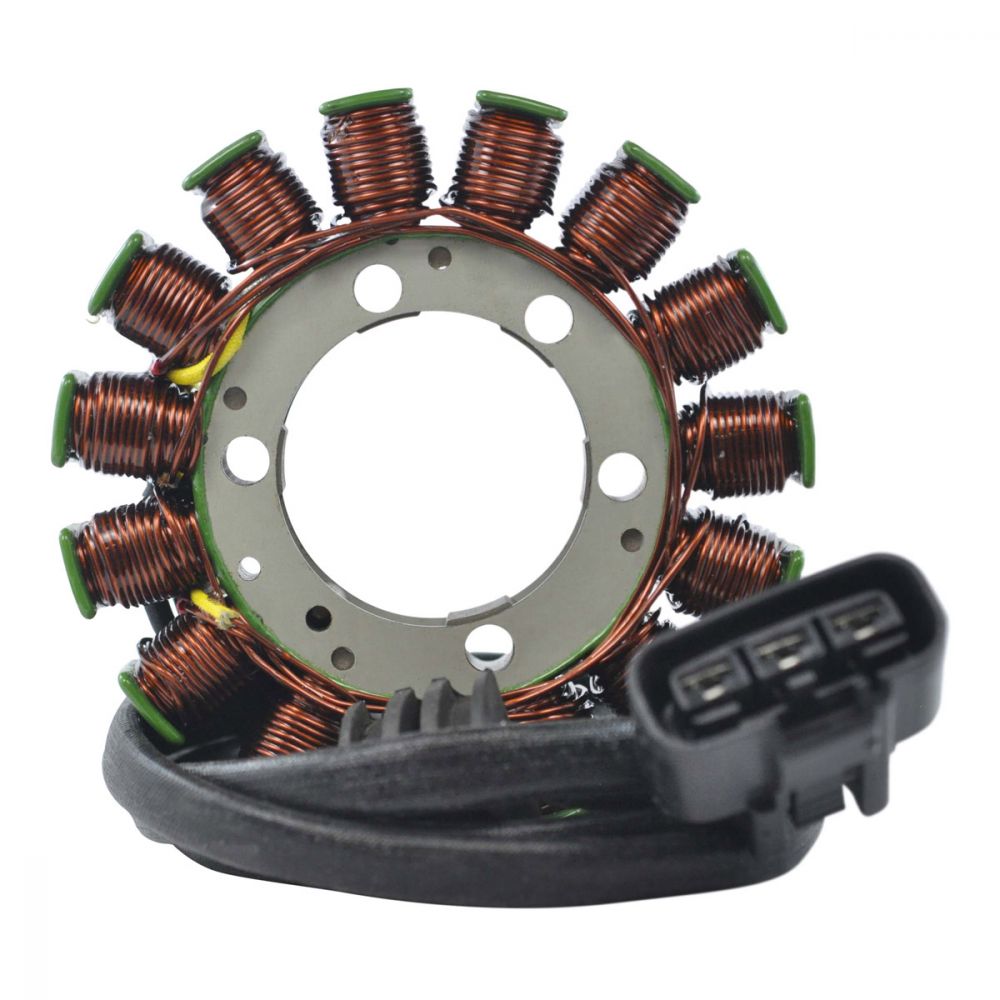

RMStator Generator Stator RMS010-104660

Brand new aftermarket generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 70 mm
Exterior diameter :145 mm
Thickness : 12 mm
Length of wires stator to plug : 680 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18

Wire to wire resistance :

Alternator : Yellow between each Yellow = 0.4 ohms +-20%
Alternator to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104660

Fitment:

• 2009-2012 Kawasaki Mule 4000 KAF620
• 2014-2020 Kawasaki Mule 4000 KAF620
• 2009-2020 Kawasaki Mule 4010 KAF620 4x4

Note: Image is for reference only, actual product may vary slightly.
