RMStator Generator Stator For 1998-2004 Yamaha FZS 600 Fazer RMS010-104668
Customer Ratings
RMStator Generator Stator For 1998-2004 Yamaha FZS 600 Fazer RMS010-104668
RMStator Generator Stator For 1998-2004 Yamaha FZS 600 Fazer RMS010-104668
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 18 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 740 mm
Length of pickup coil's wire to grommet : 50 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +-20%
Pickup : Blue to Yellow = 550 ohms +-20%
Alternator to ground = O.L
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104668
Fitment:
- 1998-2004 Yamaha FZS 600 Fazer

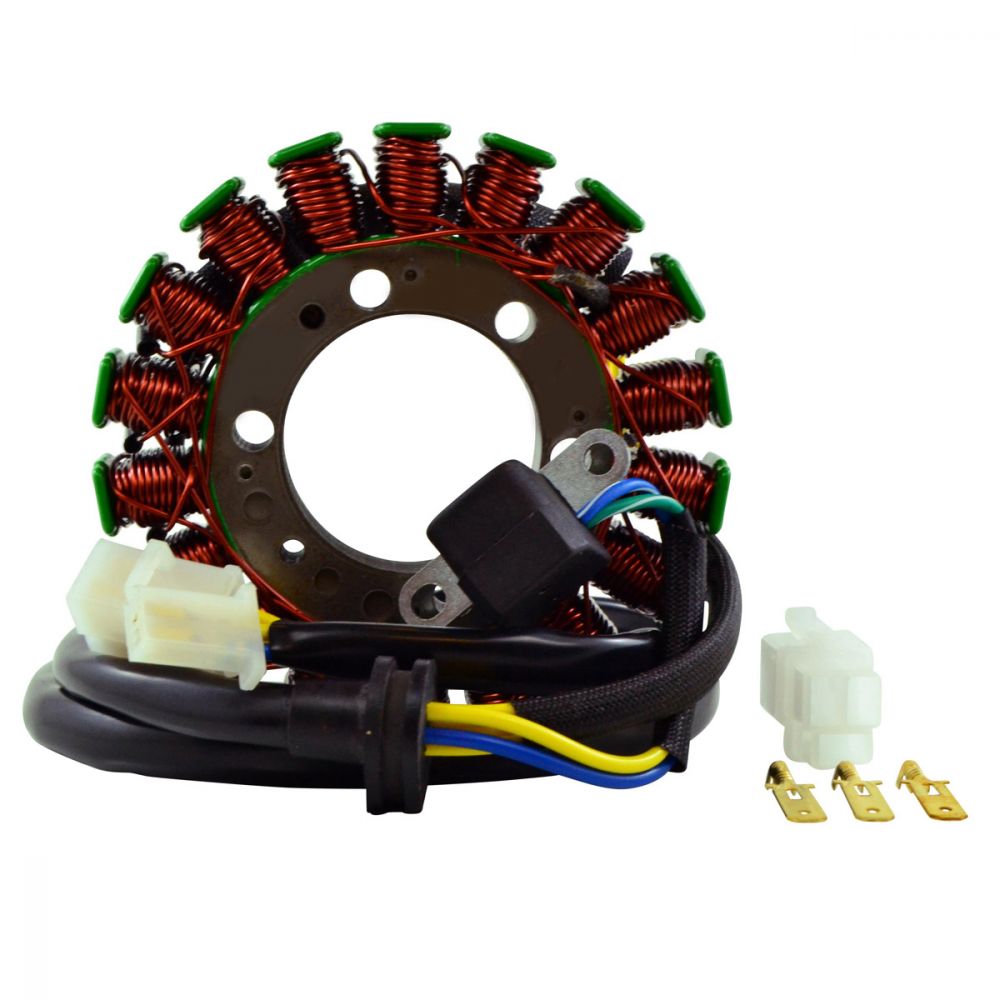

Note: Image is for reference only, actual product may vary slightly.
