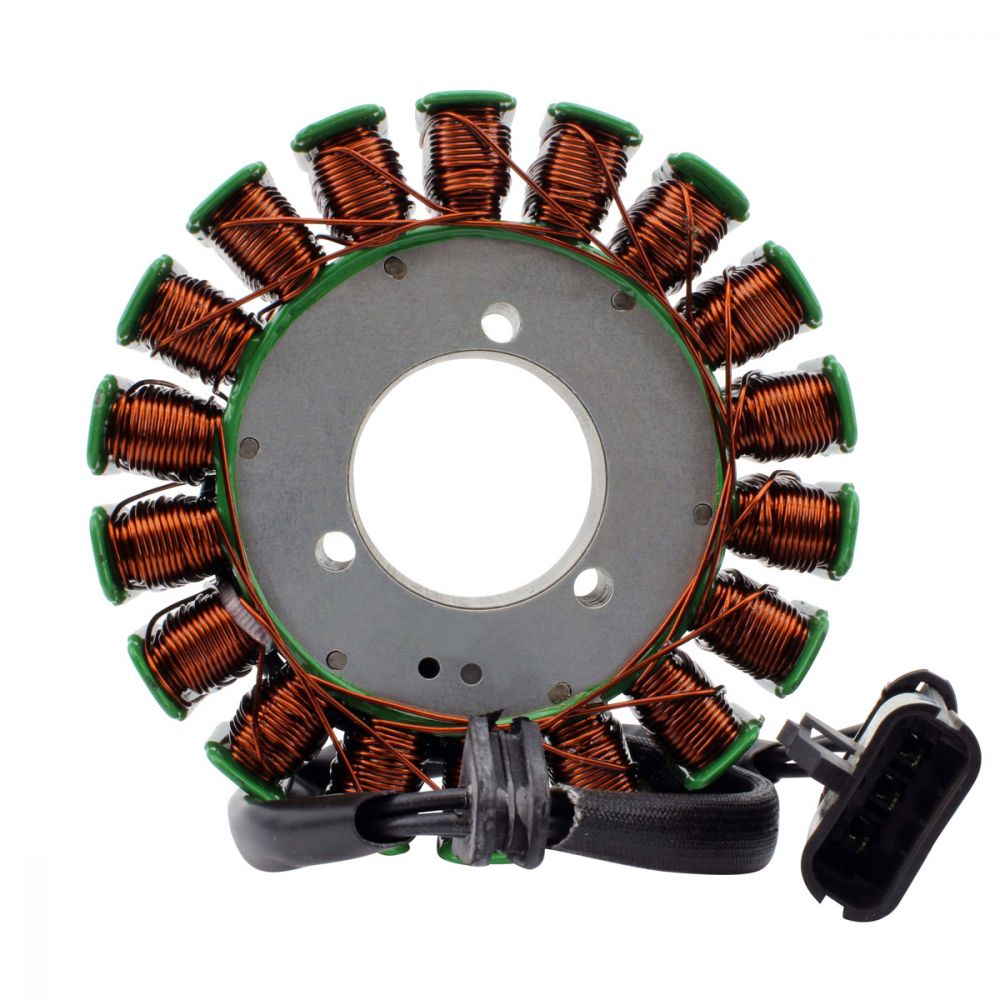

RMStator Generator Stator RMS010-104709

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 41 mm
Exterior diameter : 124 mm
Thickness : 34 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 220 mm

Other specifications :

Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :

Alternator : Black between each Black = 0.7 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104709

Fitment:

• 2003 Victory Classic Cruiser
• 2003-2006 Victory Jackpot Cory Ness
• 2004-2005 Victory Kingpin
• 2001-2002 Victory Standard Cruiser
• 2002-2006 Victory Touring Cruiser
• 2002 Victory V92C Deluxe Cruiser
• 2003-2006 Victory Vegas
• 2003-2006 Victory Vegas 8 Ball

Note: Image is for reference only, actual product may vary slightly.
