RMStator Stator RMS010-104843
Customer Ratings
RMStator Stator RMS010-104843
RMStator Stator RMS010-104843
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Pick up pulsar coil included

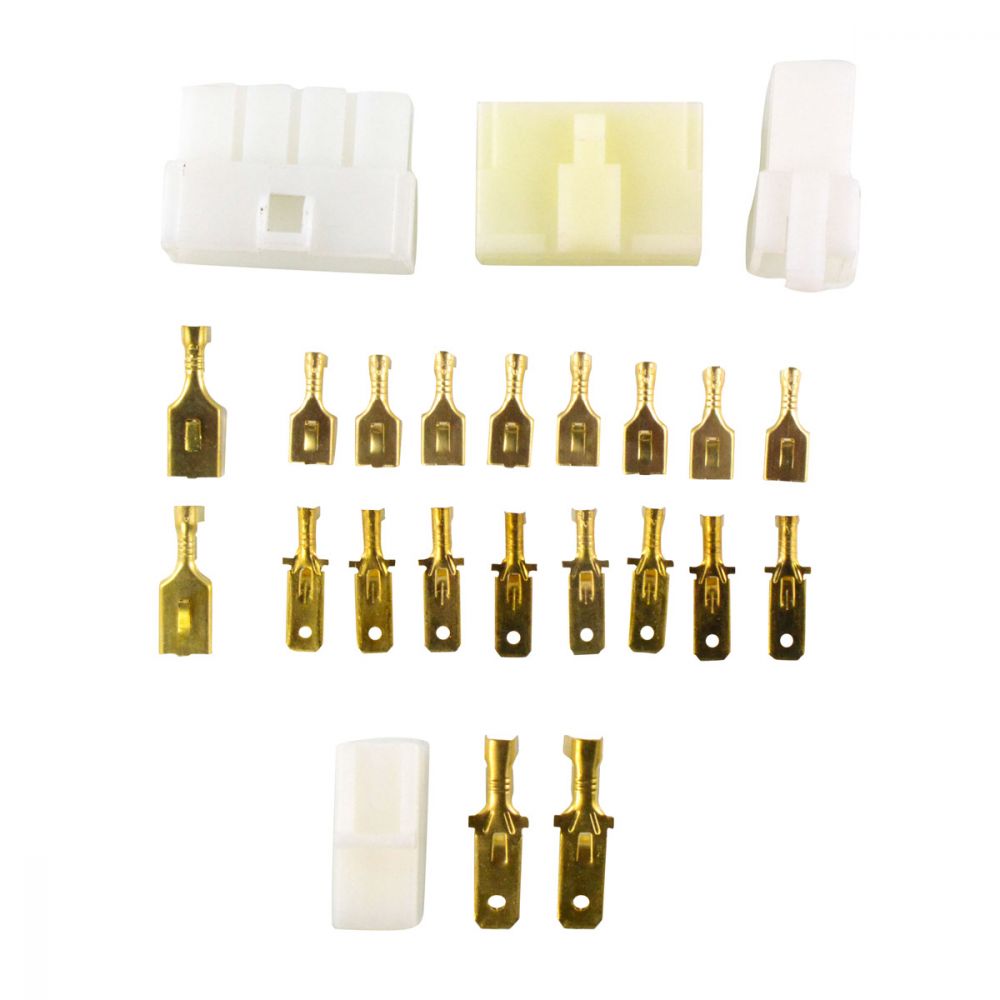

- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 126 mm
Thickness : 20 mm
Length of wires stator to grommet : 120 mm
Length of wires grommet to plug : 400 mm
Length of pickup coil's wire to grommet : 40 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Black between each Black = 0.4 ohms +-20%
Pickup : Brown to White = 100 ohms +-20%
Alternator to ground = O.L
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-104843
Fitment:
- 2016-2017 Arctic Cat Bearcat 3000 LT
- 2018-2019 Arctic Cat Norseman 3000 ES F/C EFI
- 2016-2019 Arctic Cat Pantera 3000
- 2015-2017 Arctic Cat Wildcat Sport 700 4X4
- 2014-2017 Arctic Cat Wildcat Trail 700 4X4
- 2018-2019 Arctic Cat ZR 3000 129in EFI F/C
- 2017 Arctic Cat ZR 3000 LXR
- 2018-2019 Textron Off Road Wildcat Sport 700 4x4 Limited EPS
- 2018-2019 Textron Off Road Wildcat Trail 700 4X4
Note: Image is for reference only, actual product may vary slightly.
