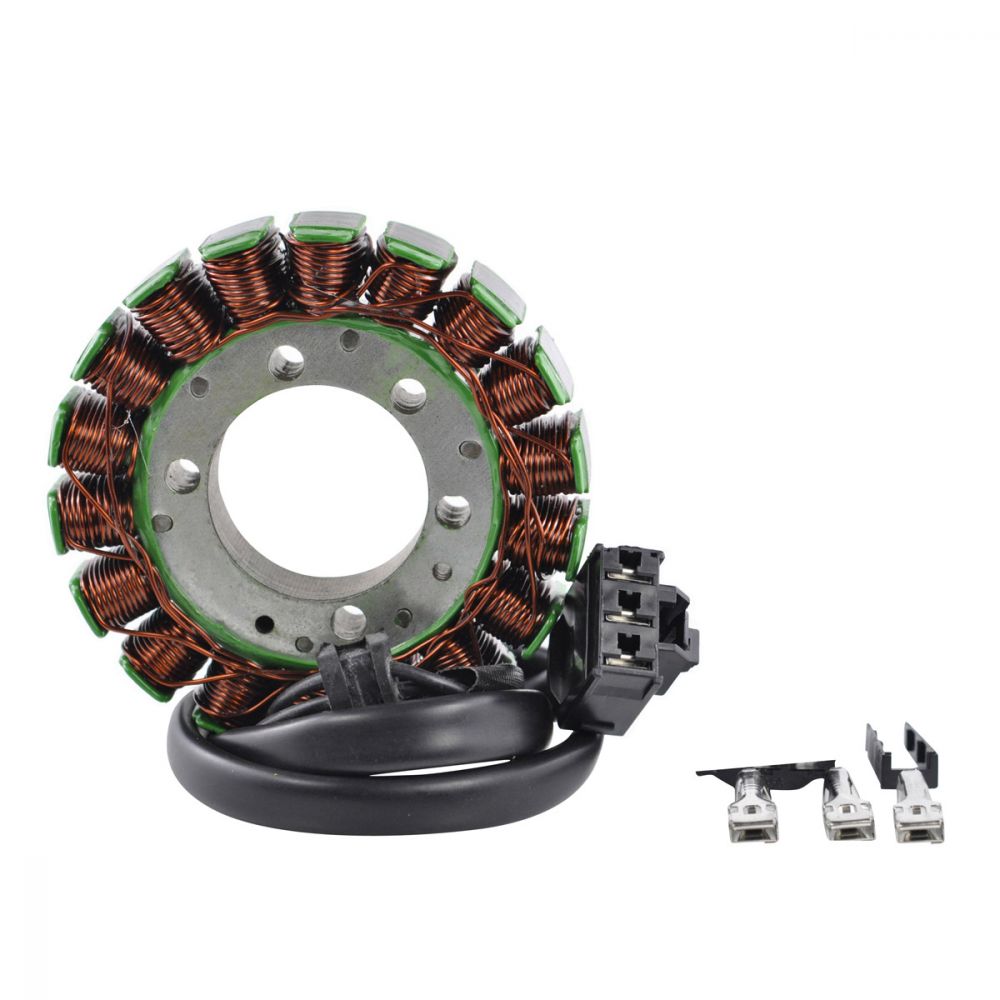

RMStator Generator Stator For 2008-2015 Can-Am DS450 RMS010-104851

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 35 mm
Exterior diameter : 93 mm
Thickness : 22 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 931 mm and 420 mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.4 ohms +-20%
Pickup : Between Blue and White = 250 ohms +-20%
Alternator to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-104851

Fitment:

• 2008-2015 Can-Am DS450

Note: Image is for reference only, actual product may vary slightly.
