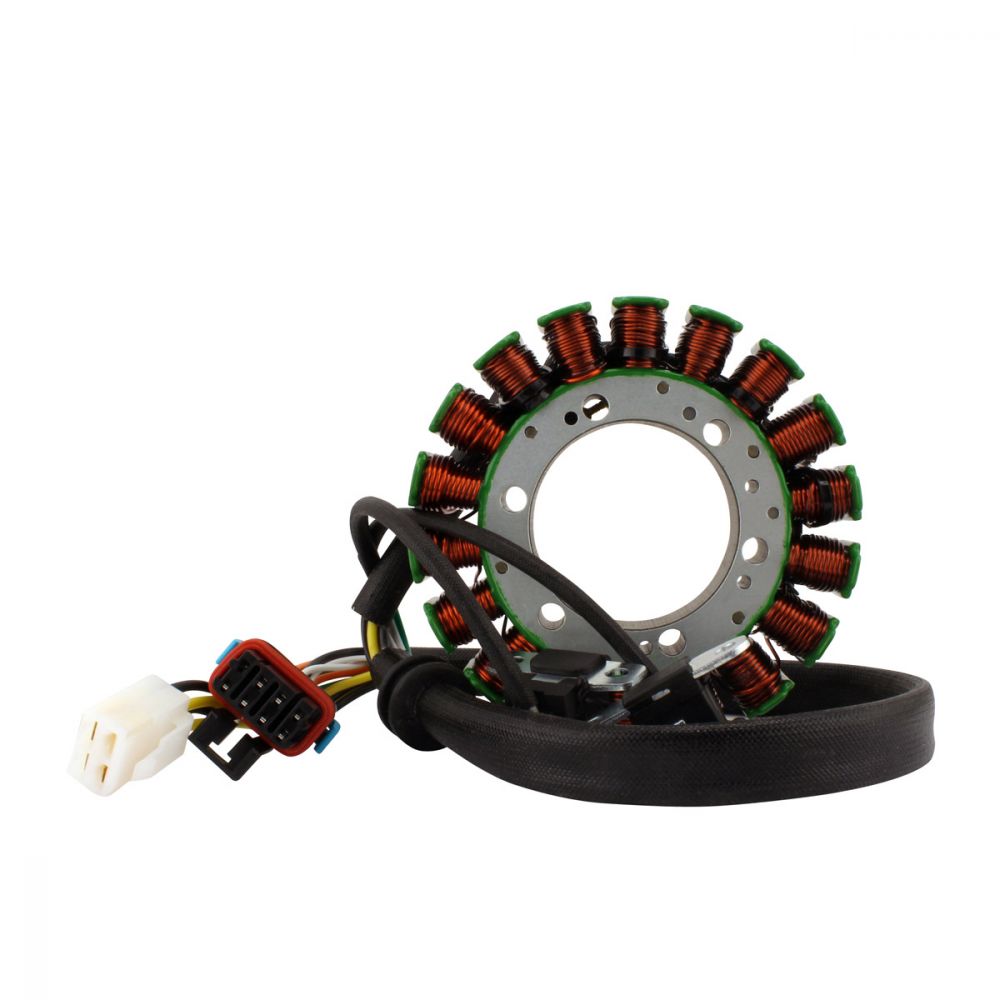

RMStator Stator RMS010-105020

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54 mm
Exterior diameter : 120 mm
Thickness : 24 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 450 mm
Length of pickup coil's wire to grommet : 100 mm

Other specifications :

Number of wires : 11
Number of plugs : 2
Number of pins : 11
Number of poles : 18

Wire to wire resistance :

Alternator 3P : Between each yellow = 0.4 ohms +-20%
Alternator 1p #1 : Between each black = 0.4 ohms +-20%
Alternator 1p #2 : Between each orange =0.8 ohms +-20%
Pickup #1: White / Red to White = 200 ohms +-20%
Pickup #2: White / Green to Green = 200 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-105020

Fitment:

• 2013-2017 Polaris Indy 600 EFI L/C
• 2019-2021 Polaris Indy 600 EFI L/C
• 2014-2021 Polaris Indy 600 Voyager EFI L/C
• 2014-2016 Polaris Indy 800 SP EFI L/C
• 2019-2020 Polaris Indy 800 SP EFI L/C
• 2021 Polaris IQ 600 Racer EFI L/C
• 2013-2015 Polaris Pro RMK 600 155in
• 2013-2020 Polaris Pro RMK 800 LE 163in
• 2013-2021 Polaris RMK 600 144in EFI
• 2013-2021 Polaris RMK 600 155in EFI L/C
• 2013-2016 Polaris RMK 800 EFI L/C
• 2013-2015 Polaris RMK Assault 800
• 2013 Polaris Rush 600
• 2015-2016 Polaris Rush 600 Pro-X EFI L/C
• 2013-2014 Polaris Rush 600 Pro R EFI L/C
• 2015-2020 Polaris Rush 600 Pro S
• 2017-2019 Polaris Rush 600 XCR
• 2013 Polaris Rush 800 EFI L/C
• 2013-2015 Polaris Rush 800 Pro R
• 2015 Polaris Rush 800 Pro S
• 2015 Polaris Rush 800 Pro X
• 2016-2018 Polaris Rush 800 Pro X EFI L/C
• 2016-2017 Polaris Rush 850 Pro S
• 2017-2020 Polaris Rush 850 XCR
• 2016-2021 Polaris SKS 800
• 2020 Polaris SKS 850 146in
• 2013-2014 Polaris SwitchBack 600 EFI L/C
• 2018-2021 Polaris SwitchBack 600 EFI L/C
• 2015 Polaris SwitchBack 600 Pro-X
• 2013-2019 Polaris SwitchBack 600 Adventure
• 2013-2017 Polaris SwitchBack 600 Pro R
• 2016 Polaris SwitchBack 600 Pro S
• 2018-2021 Polaris SwitchBack 600 Pro S
• 2017 Polaris SwitchBack 600 SP 144in
• 2013-2014 Polaris SwitchBack 800 EFI L/C
• 2018 Polaris SwitchBack 800 EFI L/C
• 2014 Polaris SwitchBack 800 Adventure
• 2016-2019 Polaris SwitchBack 800 Adventure
• 2013-2014 Polaris SwitchBack 800 Pro R
• 2015-2020 Polaris SwitchBack 800 Pro S
• 2015-2018 Polaris SwitchBack 800 Pro X
• 2014-2021 Polaris Switchback Assault 600 144in
• 2013-2020 Polaris Switchback Assault 800 LE 144in

Note: Image is for reference only, actual product may vary slightly.
