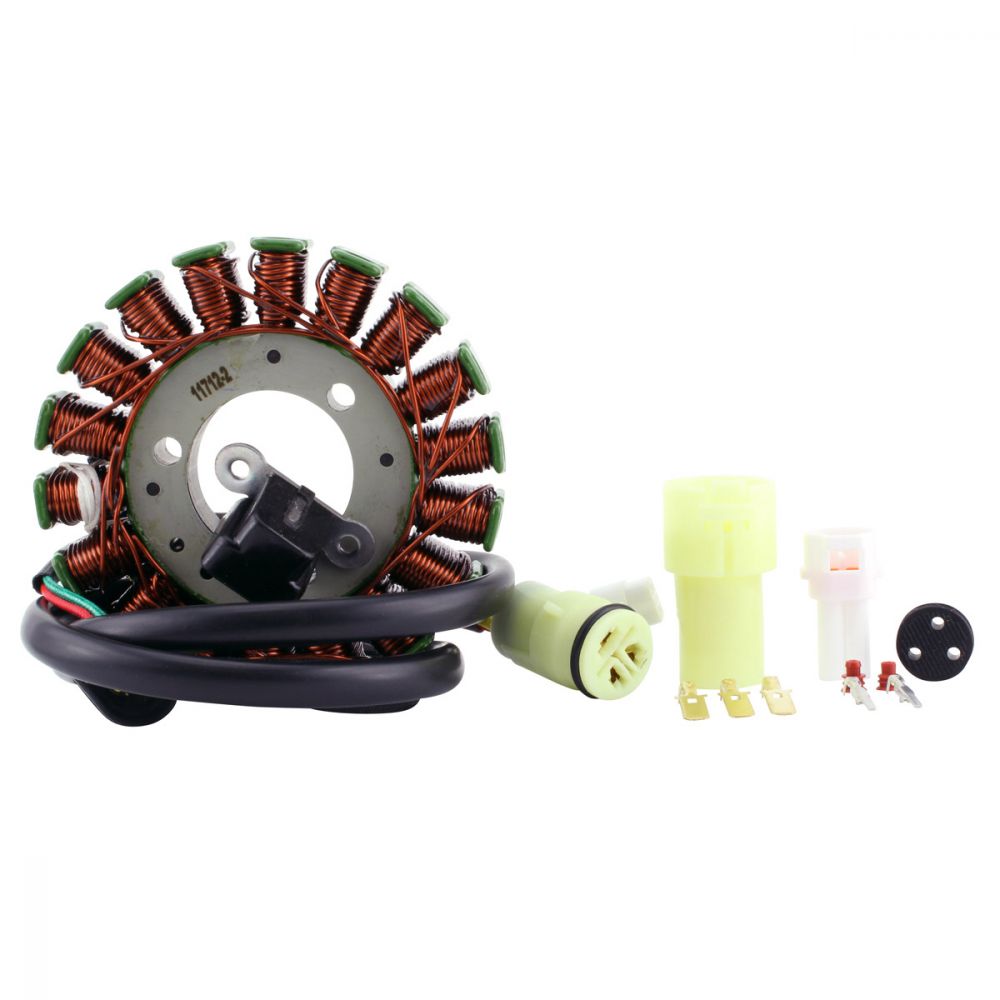

RMStator Stator RMS010-105032
RMStator Stator RMS010-105032
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius.
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 38 mm
Exterior diameter : 61 mm
Thickness : 19 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 640 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
Source : Green to Red = 100 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-105032
Fitment:
- 2008 Husqvarna SM610
- 2011 Husqvarna SMS630
- 2008 Husqvarna TE610
- 2011 Husqvarna TE630
Note: Image is for reference only, actual product may vary slightly.
