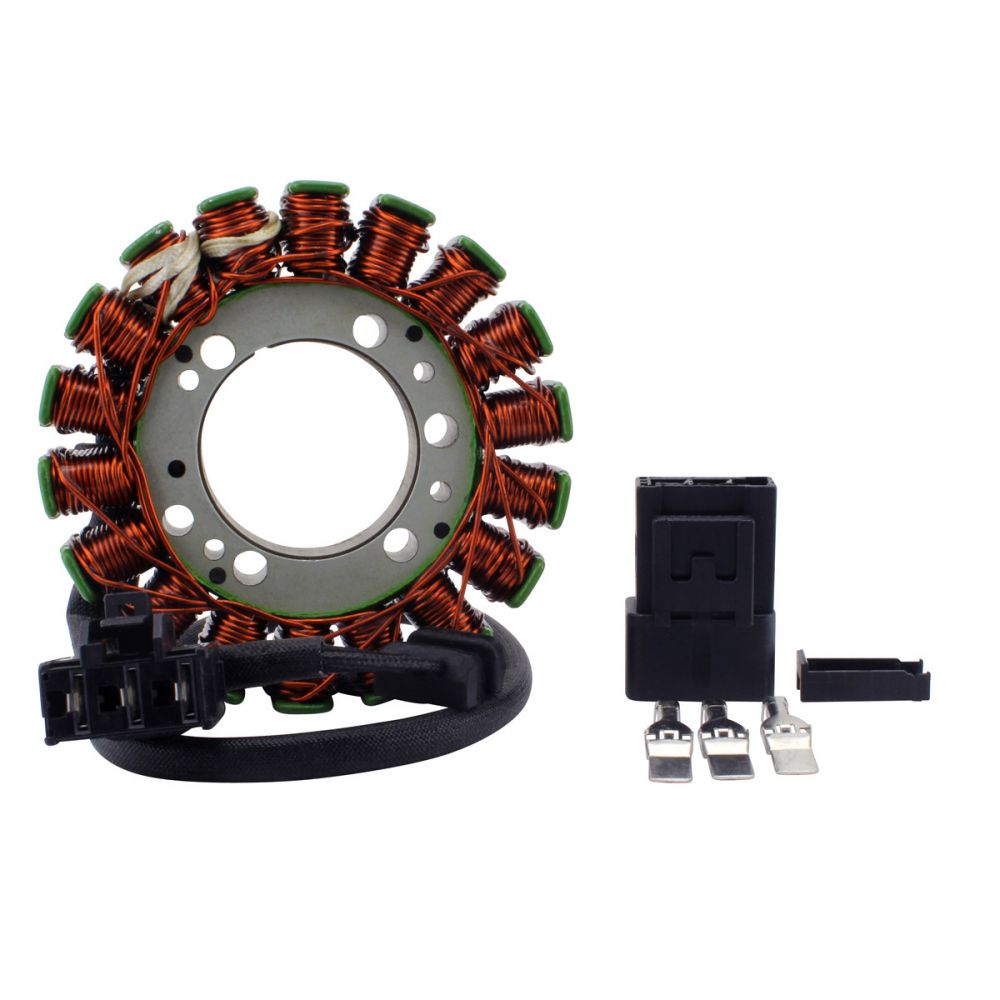

RMStator Stator RMS010-105876

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 18 mm
Length of wires stator to grommet: 12 5mm
Length of wires grommet to plug: 420 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: = 0.4ohms +-20%
Alternator: to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-105876

Fitment:

• 2007-2009 Kawasaki Z1000
• 2007-2012 Kawasaki Z750
• 2011-2012 Kawasaki Z750R
• 2013-2016 Kawasaki Z800

Note: Image is for reference only, actual product may vary slightly.
