RMStator Generator Stator RMS010-105880
Customer Ratings

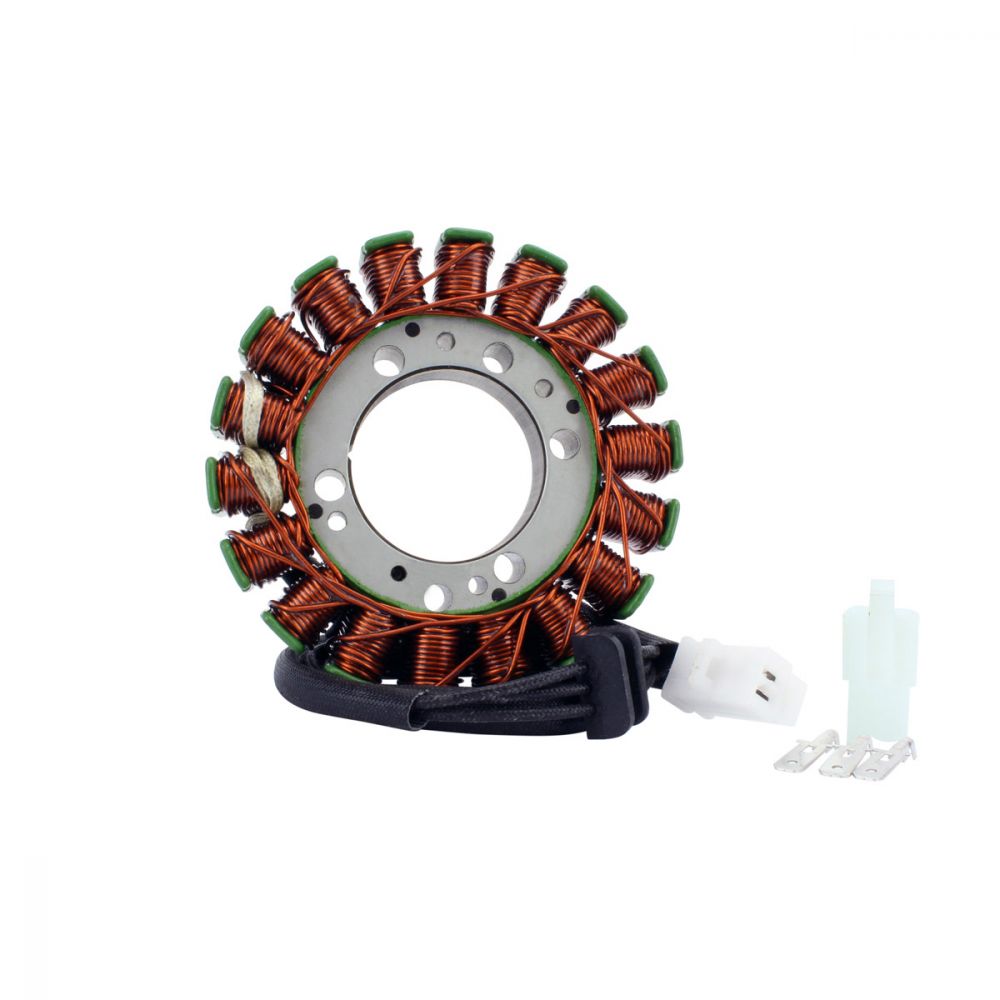

RMStator Generator Stator RMS010-105880
RMStator Generator Stator RMS010-105880
Brand new aftermarket stator generator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 104 mm
Thickness : 27 mm
Length of wires stator to grommet : 90 mm
Length of wires grommet to plug : 345 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Between each Black = 0.5 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-105880
Fitment:
- 2005-2006 Kawasaki Ninja ZX6R ZX600F
- 2005-2006 Kawasaki Ninja ZX6RR ZX600K
Note: Image is for reference only, actual product may vary slightly.
