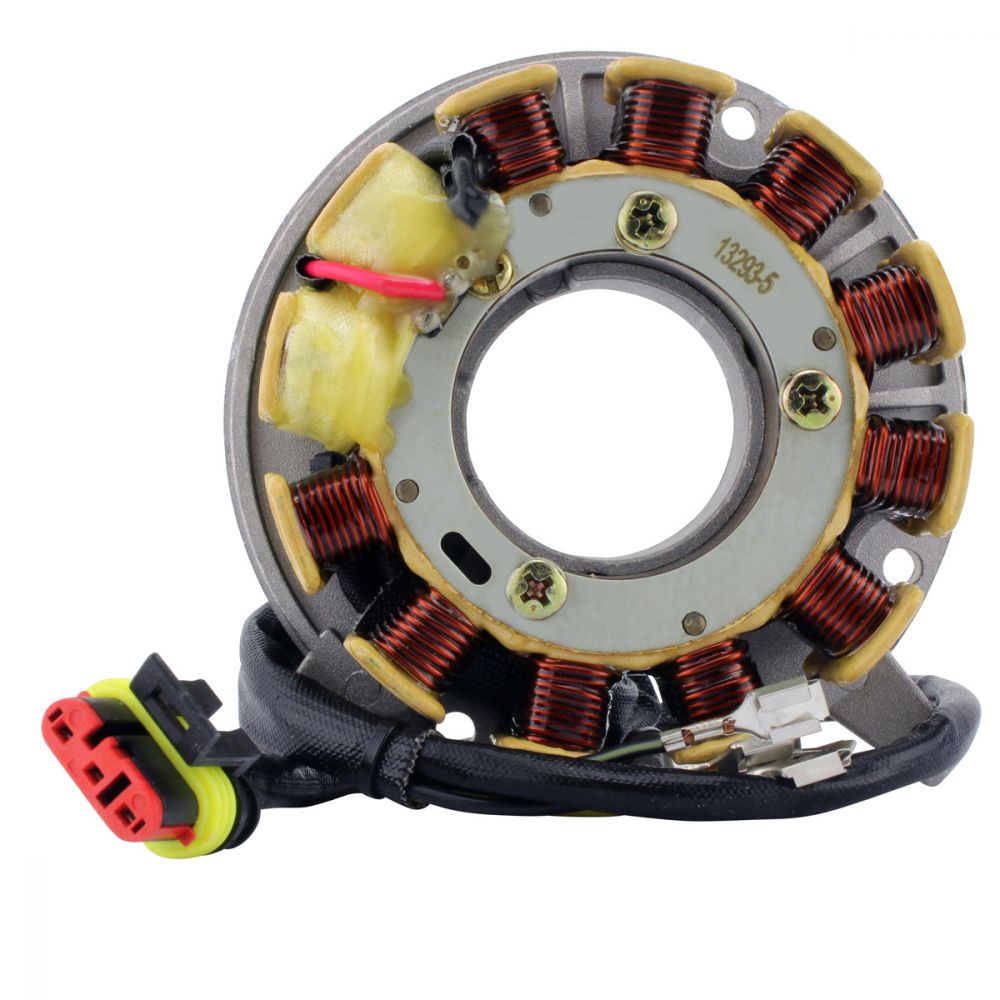

RMStator Stator RMS010-105937

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 43 mm
Exterior diameter: 110 mm
Thickness: 32 mm
Length of wires clamp to plug: 500 mm

Other specifications:

Number of wires: 6
Number of plugs: 1
Number of pins: 6
Number of poles: 12

Wire to wire resistance :
Alternator: Yellow between each yellow = 0.4 ohms +-20%
Alternator to ground = O.L
Source: Red to black = 8 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-105937

Fitment:

• 1998-2000 Ski-doo Tundra R 280 Carb F/C
• 2002-2005 Ski-doo Tundra R 280 Carb F/C

Note: Image is for reference only, actual product may vary slightly.
