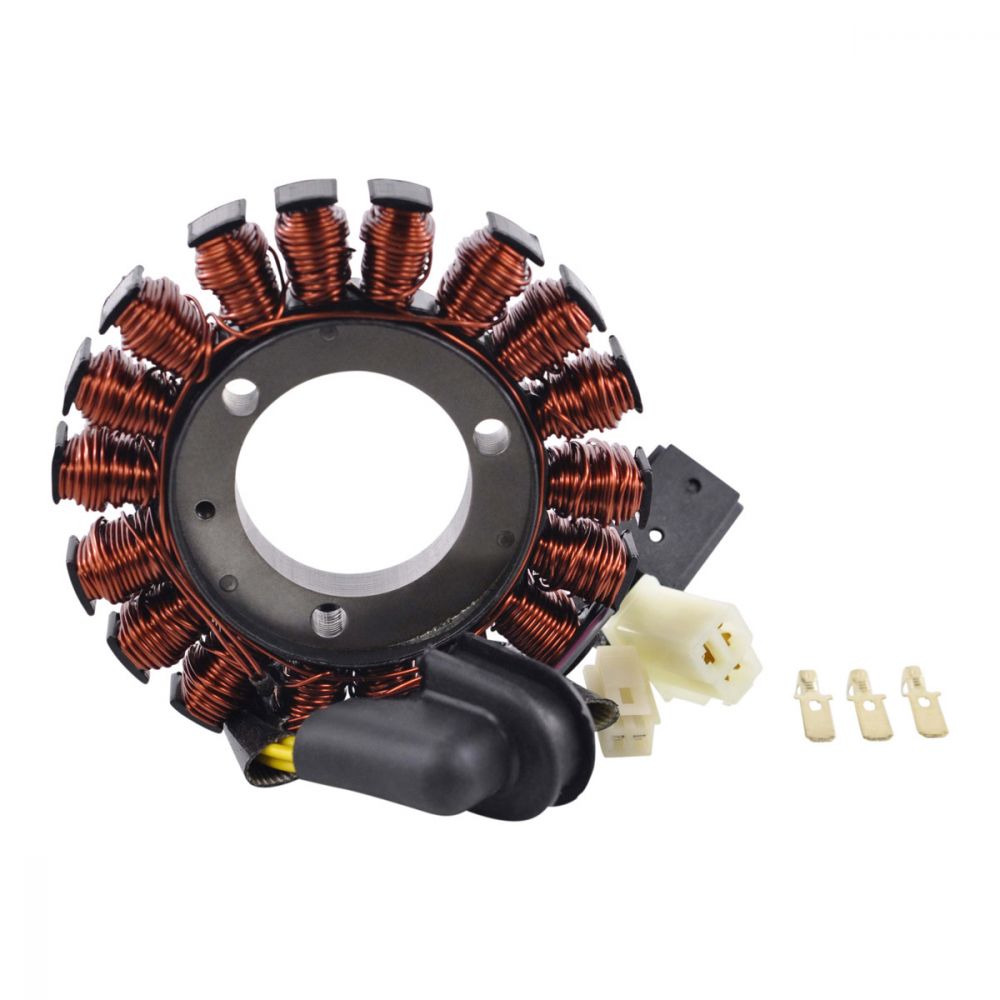

RMStator Stator RMS010-106262

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 40 mm
Exterior diameter : 105 mm
Thickness : 35 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 940 mm
Length of pickup coil's wire to grommet : 60 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :

Alternator 3p : Between each Yellow = 0.5 ohms +-20%
Source : Blue/Yellow to Green = 240 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106262

Fitment:

• 2014-2020 Honda Foreman 500 TRX500FE 4x4 ES Fourtrax
• 2014-2020 Honda Foreman 500 TRX500FM 4x4 S Fourtrax
• 2014 Honda Foreman Rubicon 500 TRX500FA 4x4 Fourtrax
• 2018-2019 Honda Foreman Rubicon 500 TRX500FA 4x4 Fourtrax
• 2020 Honda Foreman Rubicon 500 TRX520FM6 EPS Fourtrax

Note: Image is for reference only, actual product may vary slightly.
