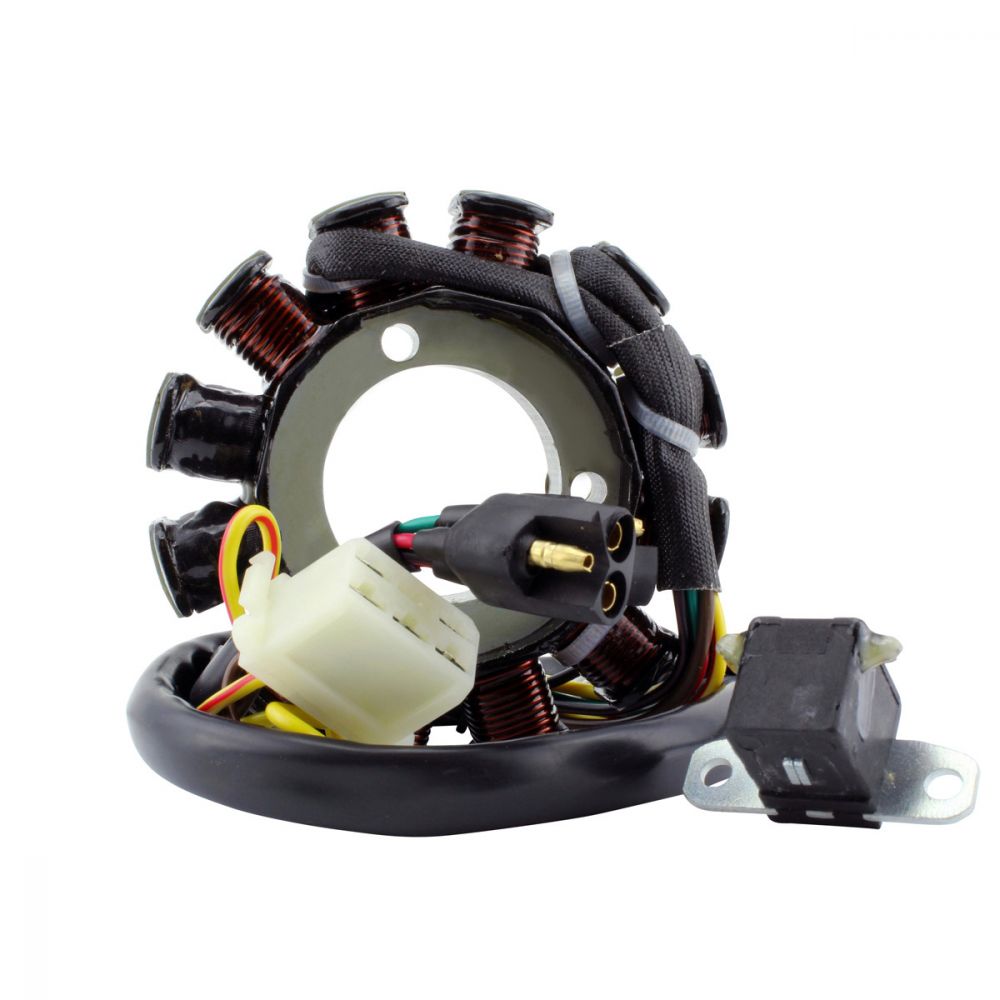

RMStator Stator RMS010-106266

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 40 mm
Exterior diameter : 100 mm
Thickness : 35 mm
Length of wires stator to grommet : 50 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 90 mm

Other specifications :

Number of wires : 11
Number of plugs : 3
Number of pins : 11
Number of poles : 12

Wire to wire resistance :

Alternator : Yellow to Yellow/Red = 0.4 ohms +-20%
Pickup : White to White/Red = 325 ohms +-20%
Source 1 : Green to Red = 13.8 ohms +-20%
Source 2 : Green to Black/Red = 13.8 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106266

Fitment:

• 2014-2020 Polaris Indy 550 Carb
• 2019-2020 Polaris Indy 550 Evo Carb L/C
• 2014-2020 Polaris Indy 550 Adventure Carb
• 2014-2020 Polaris Indy 550 LXT Carb
• 2014-2020 Polaris Indy 550 Voyager Carb
• 2020 Polaris RMK 500 Carb L/C
• 2016 Polaris WideTrak 550 LX Carb L/C
• 2018-2019 Polaris WideTrak 550 LX Carb L/C

Note: Image is for reference only, actual product may vary slightly.
