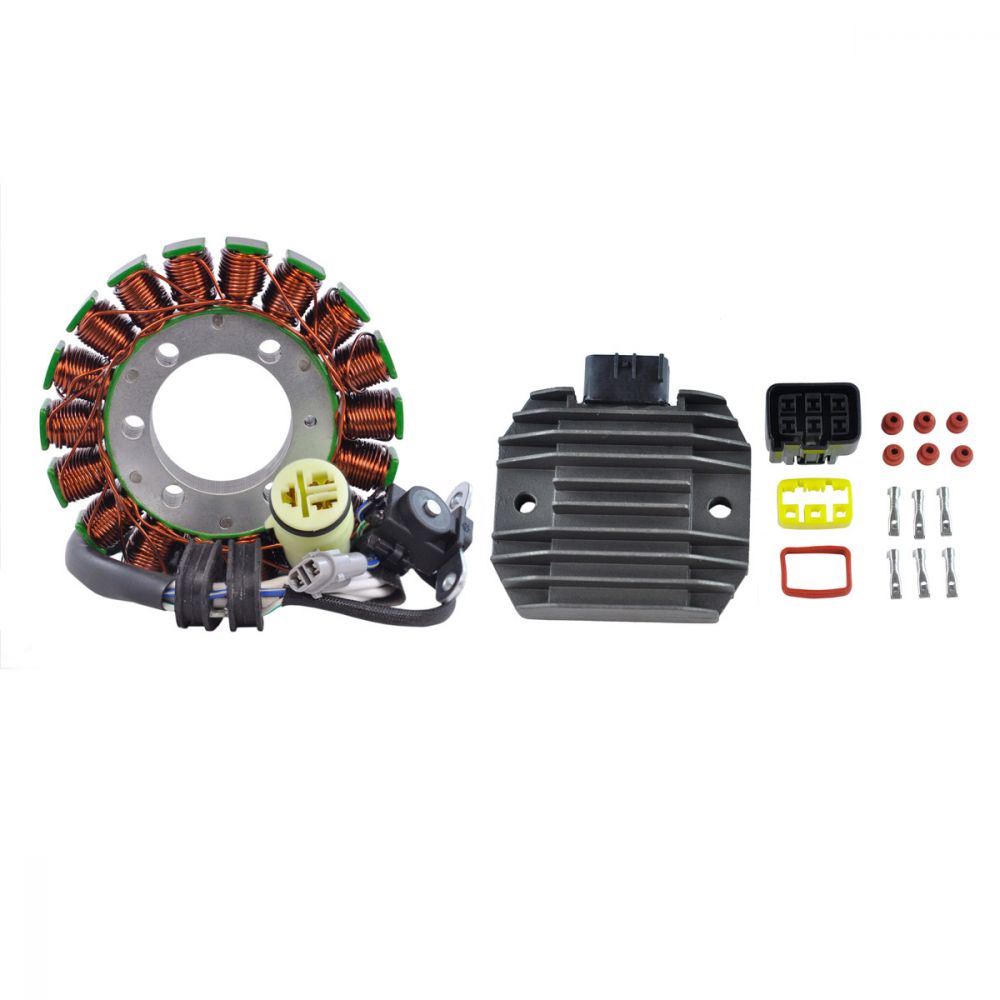

RMStator Stator RMS010-106763

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 28 mm
Exterior diameter : 59.4 mm
Thickness : 8 mm
Length of wires stator to grommet : 40 mm
Length of wires grommet to plug : 530 mm
Length of pickup coil's wire to grommet : 40 mm

Other specifications :

Number of wires : 6
Number of plugs : 1
Number of pins : 6
Number of poles : 4

Wire to wire resistance :

Source Coil 1 : Green to Brown = 860 ohms +-20%
Source Coil 2 : Pink to Black = 55 ohms +-20%
Pickup Coil : Red to White = 290 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106763

Fitment:

• 2001-2005 Yamaha YZ250F
• 2010-2013 Yamaha YZ250F
• 1998 Yamaha YZ400
• 1999 Yamaha YZ400F
• 2000-2002 Yamaha YZ426F
• 2003-2005 Yamaha YZ450F

Note: Image is for reference only, actual product may vary slightly.
