RMStator Stator RMS010-106977
Customer Ratings
RMStator Stator RMS010-106977
RMStator Stator RMS010-106977
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010&rdquo.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 22 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 315 mm
Length of pickup coil's wire to grommet : 70 mm
Other specifications :
Number of wires : 5
Number of plugs : 3
Number of pins : 5
Number of poles : 18
Wire to wire resistance :
Alternator : White to White = 0.5 ohms +-20%
Pickup : Grey to Black = 509 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-106977
Fitment:
- 2019-2021 Yamaha Wolverine X2 850 YXE85 4x4 XT-R
- 2018-2021 Yamaha Wolverine X4 850 YXF85 4x4 XT-R
- 2021 Yamaha YXF 850 Wolverine XE

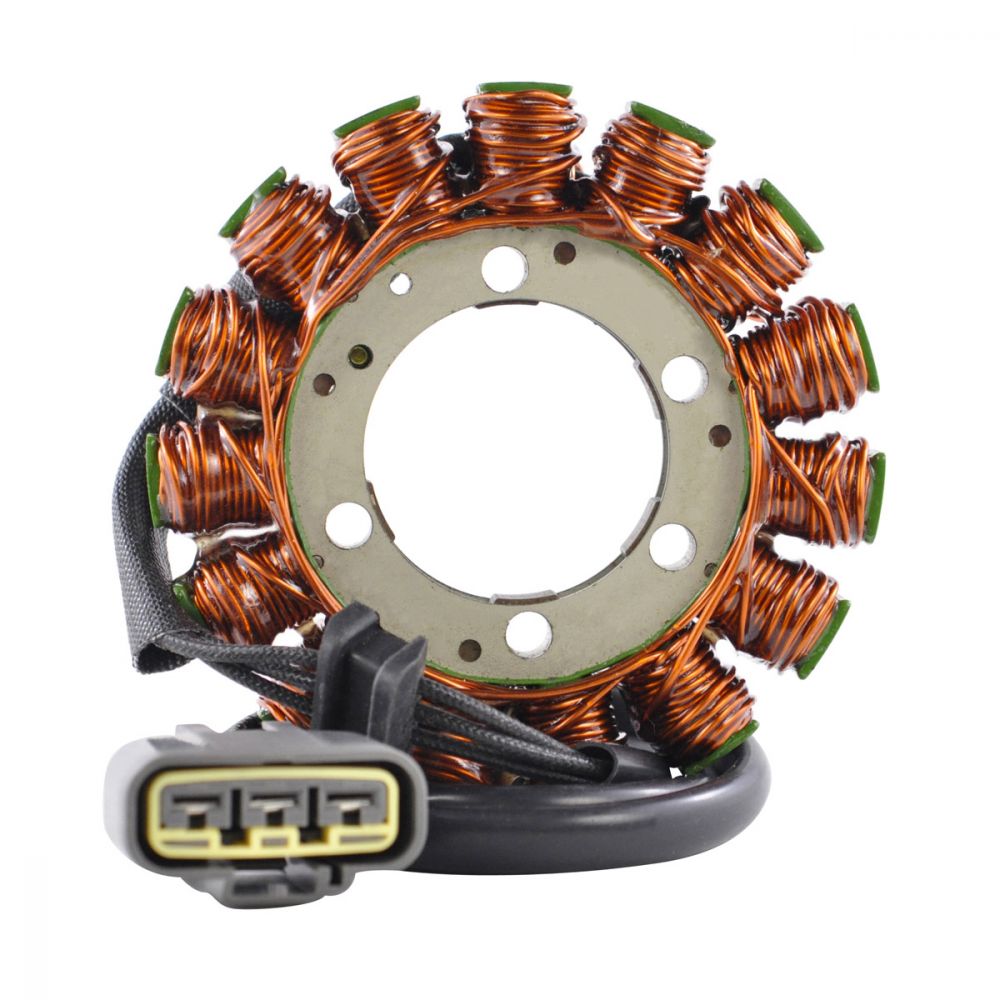

Note: Image is for reference only, actual product may vary slightly.
