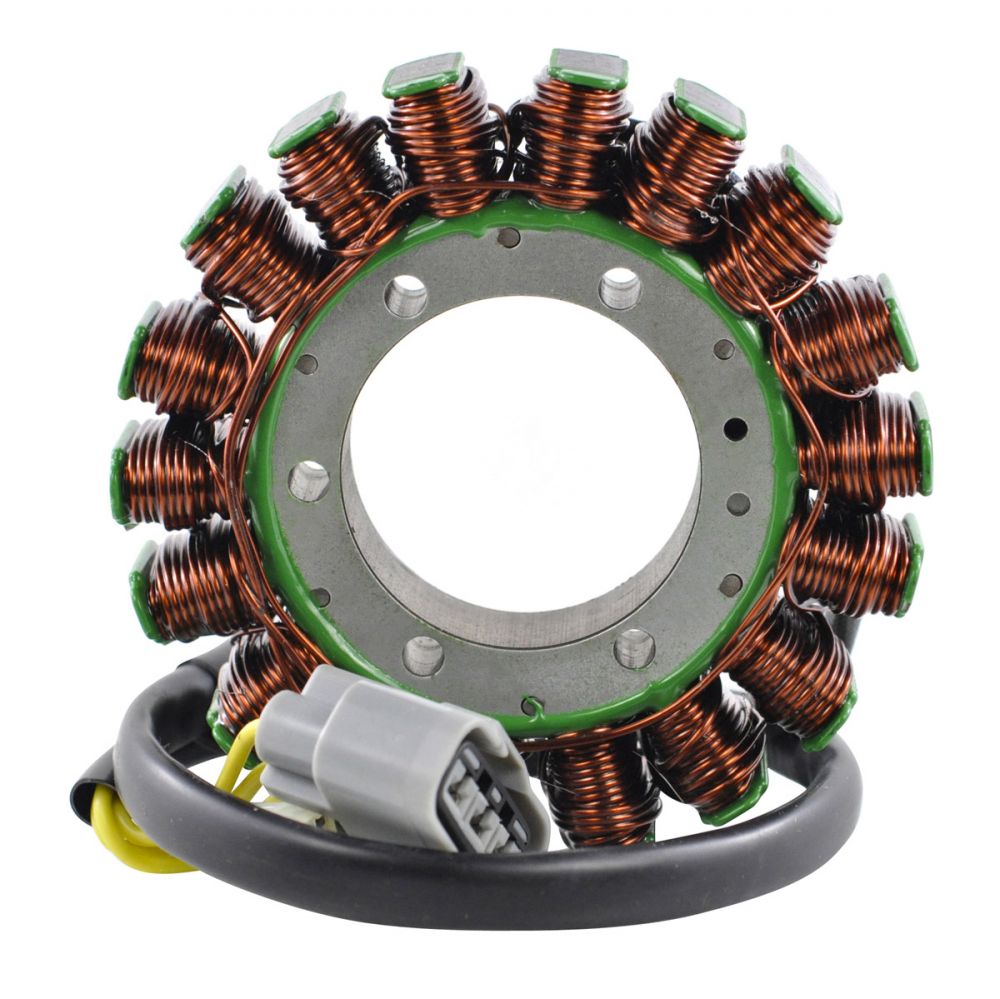

RMStator Generator Stator RMS010-106985

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 21 mm
Length of wires stator to grommet : 175 mm
Length of wires grommet to plug : 310 mm
Length of pickup coil's wire to grommet : 120 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :

Alternator : Black to Black = 0.5 ohms +-20%
Pickup : White to Blue = 209 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106985

Fitment:

• 2019-2021 Suzuki King Quad 500 LTA500 4x4 AXi
• 2019-2021 Suzuki King Quad 500 LTA500 4x4 AXi EPS
• 2019-2021 Suzuki King Quad 500 LTA500 4x4 AXi SE EPS

Note: Image is for reference only, actual product may vary slightly.
