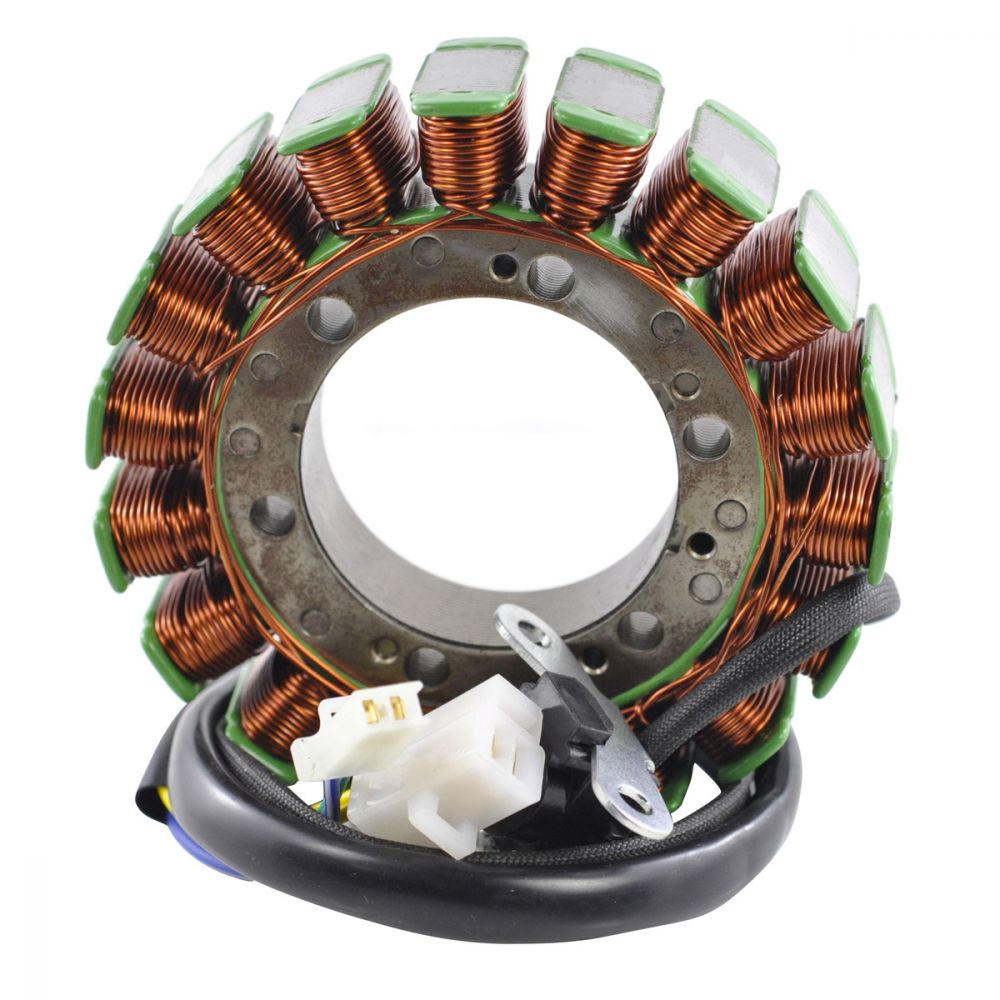

RMStator Generator Stator RMS010-106987
Customer Ratings
RMStator Generator Stator RMS010-106987
RMStator Generator Stator RMS010-106987
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 29 mm
Exterior diameter : 88 mm
Thickness : 10 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug : 325 mm
Length of pickup coil's wire to grommet : 30 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 8
Wire to wire resistance :
Alternator #1 : Yellow to White = 0.5 ohms +-20%
Alternator #2 : Yellow to ground = 1 ohms +-20%
Alternator #3 : White to ground = 1.1 ohms +-20%
Pickup : Blue / Yellow to Ground = 104 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-106987
Fitment:
- 2007-2017 Kawasaki KFX90
- 2019-2021 Kawasaki KFX90
- 2009-2010 KYMCO Mongoose 90
Note: Image is for reference only, actual product may vary slightly.
