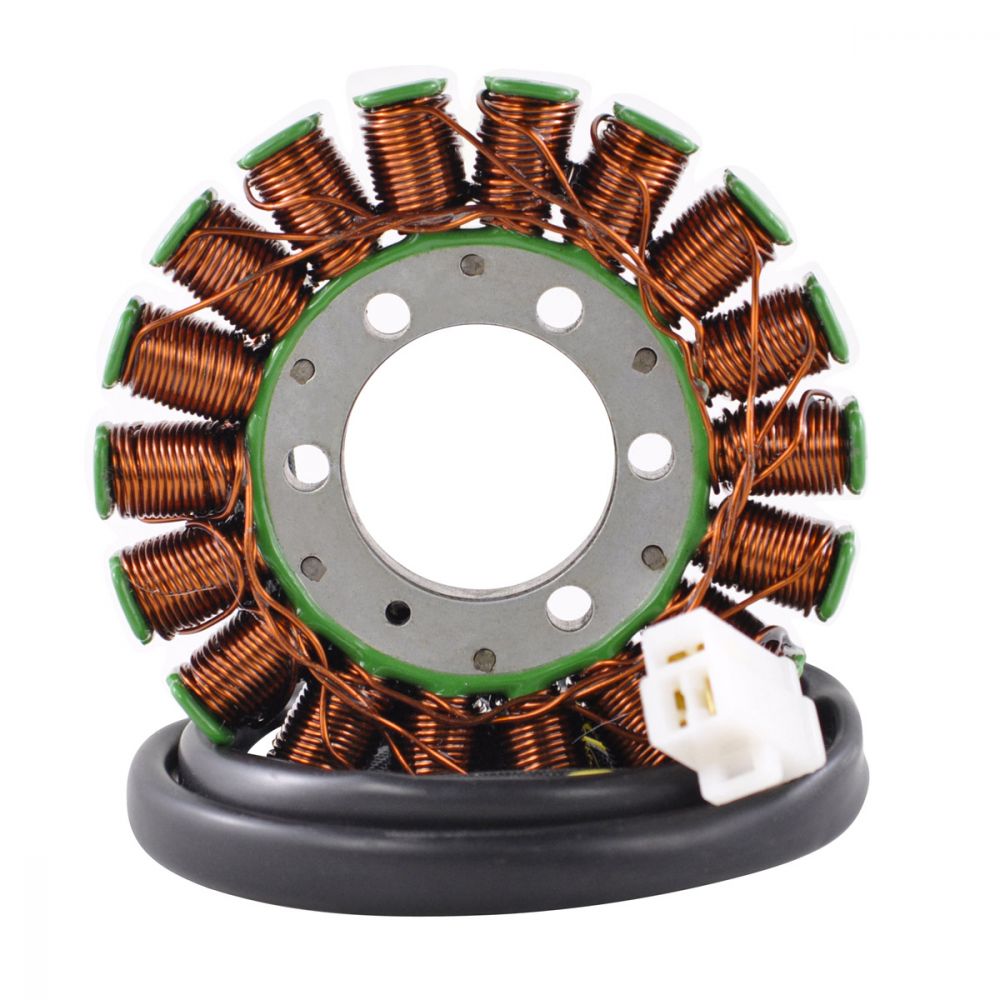

RMStator Generator Stator RMS010-106989

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Pick-up coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions :

Interior diameter : 42 mm
Exterior diameter : 107 mm
Thickness : 20 mm
Length of wires stator to grommet : 110 mm
Length of wires grommet to plug # 1 : 385 mm
Length of wires grommet to plug # 2 : 835 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :

Number of wires : 5
Number of plugs : 2
Number of pins : 5
Number of poles : 18

Wire to wire resistance :

Alternator : Yellow to Yellow = 0.6 ohms +-20%
Pickup : Blue to Green = 241 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-106989

Fitment:

• 2014-2021 Honda Rancher 420 TRX420FE 4x4 ES
• 2014-2021 Honda Rancher 420 TRX420FM 4x4
• 2014-2016 Honda Rancher 420 TRX420TE 2x4 ES
• 2020-2021 Honda Rancher 420 TRX420TE 2x4 ES
• 2014-2021 Honda Rancher 420 TRX420TM 2x4

Note: Image is for reference only, actual product may vary slightly.
