RMStator Generator Stator RMS010-107076
Customer Ratings

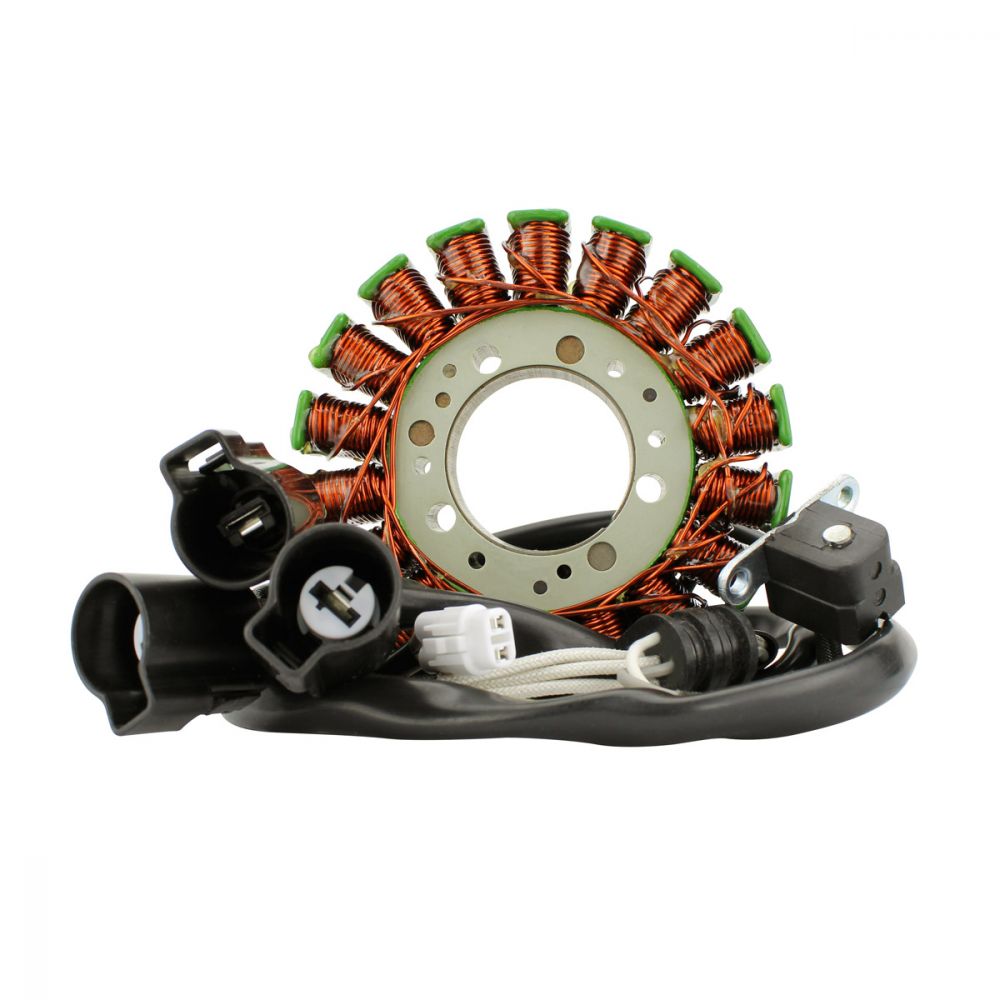

RMStator Generator Stator RMS010-107076
RMStator Generator Stator RMS010-107076
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 23 mm
Length of wires stator to grommet : 200 mm
Length of wires grommet to plug : 1020 mm
Length of pickup coil's wire to grommet : 110 mm
Other specifications :
Number of wires : 5
Number of plugs : 4
Number of holes : 5
Number of poles : 18
Alternator : White to White = 0.5 ohms +-20%
Pickup : Black to Grey = 512 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107076
Fitment:
- 2019-2022 Yamaha YXZ1000R EPS
- 2019-2022 Yamaha YXZ1000R SS EPS
Note: Image is for reference only, actual product may vary slightly.
