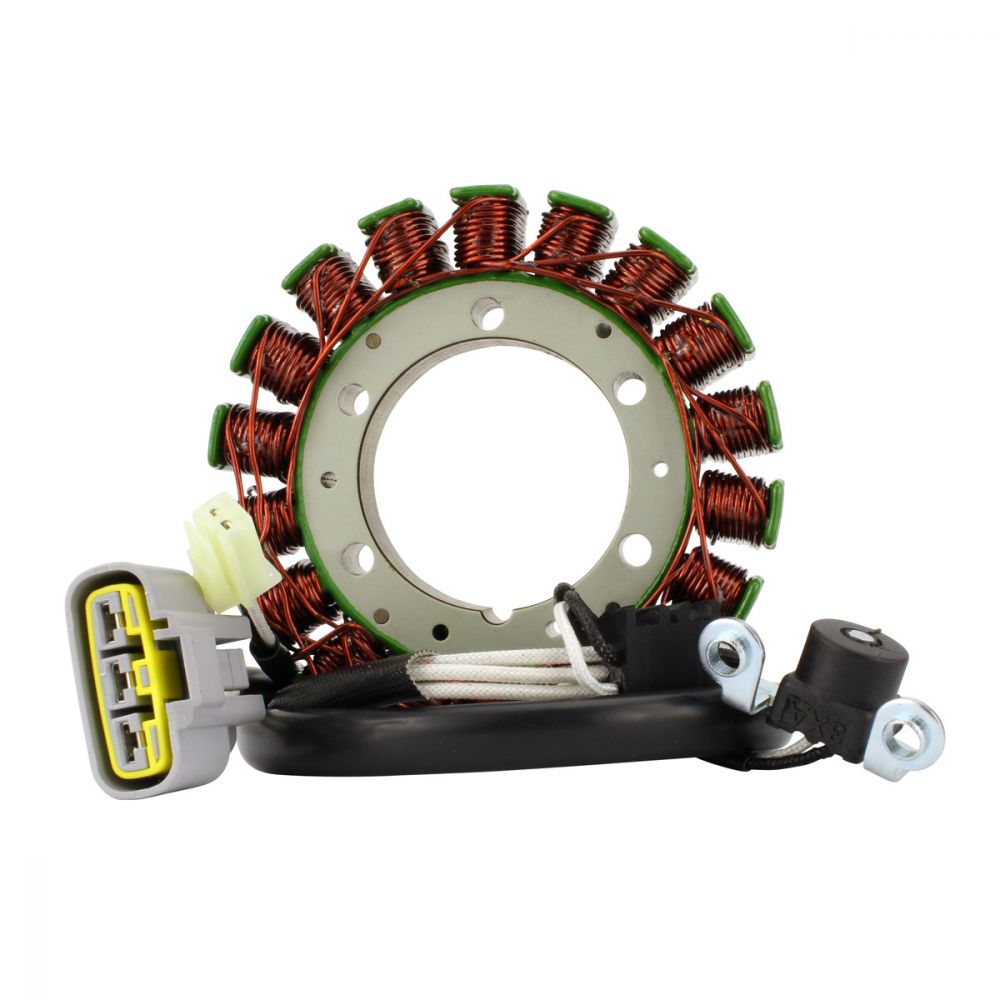

RMStator Generator Stator RMS010-107082
Customer Ratings
RMStator Generator Stator RMS010-107082
RMStator Generator Stator RMS010-107082
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions :
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 16 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 5
Number of plugs : 2
Number of holes : 3
Number of poles : 18
Alternator : White to White = 0.5 ohms +-20%
Pickup : Black to Grey = 269 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107082
Fitment:
- 2015-2017 Yamaha FZ700
- 2018-2021 Yamaha MT-07
- 2021 Yamaha Tenere 700 XTZ07
- 2018-2021 Yamaha XSR700
- 2022 Yamaha YZF R7
Note: Image is for reference only, actual product may vary slightly.
