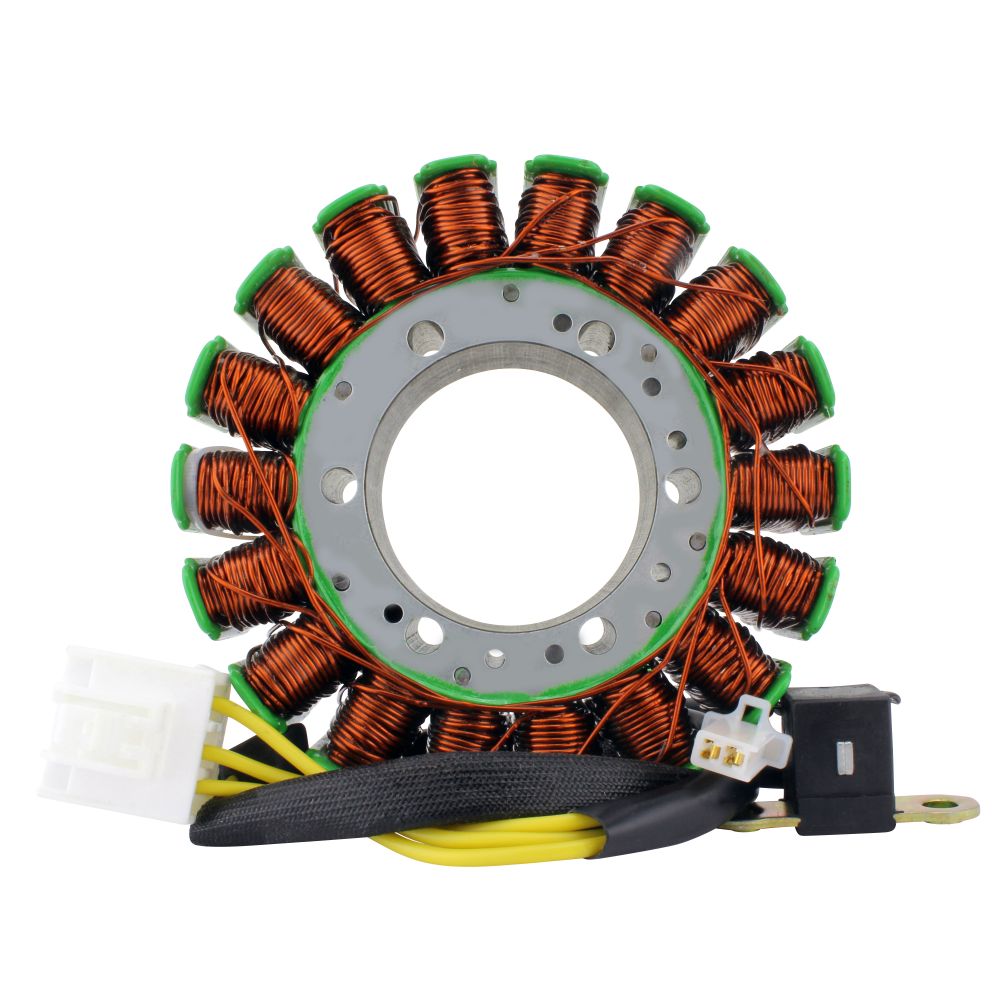

RMStator Generator Stator RMS010-107375
Customer Ratings
RMStator Generator Stator RMS010-107375
RMStator Generator Stator RMS010-107375
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 54 mm
Exterior diameter: 126 mm
Thickness: 32 mm
Length of wires stator to grommet: 240 mm
Length of wires grommet to plug #1: 100 mm
Length of wires grommet to plug #2: 190 mm
Length of pickup coil's wire to grommet: 180mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.7 ohms +-20%
Pickup: Green to White/Blue = 194 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107375
Fitment:
- 2005-2007 Honda VTX1800 F
- 2002-2007 Honda VTX1800C
- 2004-2008 Honda VTX1800N
- 2002-2007 Honda VTX1800R Retro
- 2002-2006 Honda VTX1800S Spoke Wheel
- 2007-2008 Honda VTX1800T1
Note: Image is for reference only, actual product may vary slightly.
