RMStator Generator Stator RMS010-107395

Brand new aftermarket Stator

• Direct replacement to your original unit
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 104 mm
Thickness: 24 mm
Length of stator to grommet: 130 mm
Length of wires grommet to plug: 1160 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.8 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107395

Fitment:

• 2022 Sea-Doo FISH PRO 130 Scout
• 2019 Sea-Doo FISH PRO 155
• 2020-2021 Sea-Doo FISH PRO 170
• 2022 Sea-Doo FISH PRO 170 Sport
• 2018-2022 Sea-Doo GTI 130
• 2018-2019 Sea-Doo GTI 155 SE
• 2020 Sea-Doo GTI 170 SE
• 2022 Sea-Doo GTI 170 SE
• 2018-2022 Sea-Doo GTR 230
• 2021-2022 Sea-Doo GTX 130 Pro
• 2018-2019 Sea-Doo GTX 155
• 2020-2022 Sea-Doo GTX 170
• 2018-2022 Sea-Doo GTX 230
• 2018-2022 Sea-Doo GTX 300 Limited
• 2018-2022 Sea-Doo RXP X 300
• 2018-2019 Sea-Doo RXT 230
• 2018-2022 Sea-Doo RXT X 300
• 2018-2019 Sea-Doo Wake 155
• 2020 Sea-Doo Wake 170
• 2022 Sea-Doo Wake 170
• 2018-2022 Sea-Doo Wake Pro 230

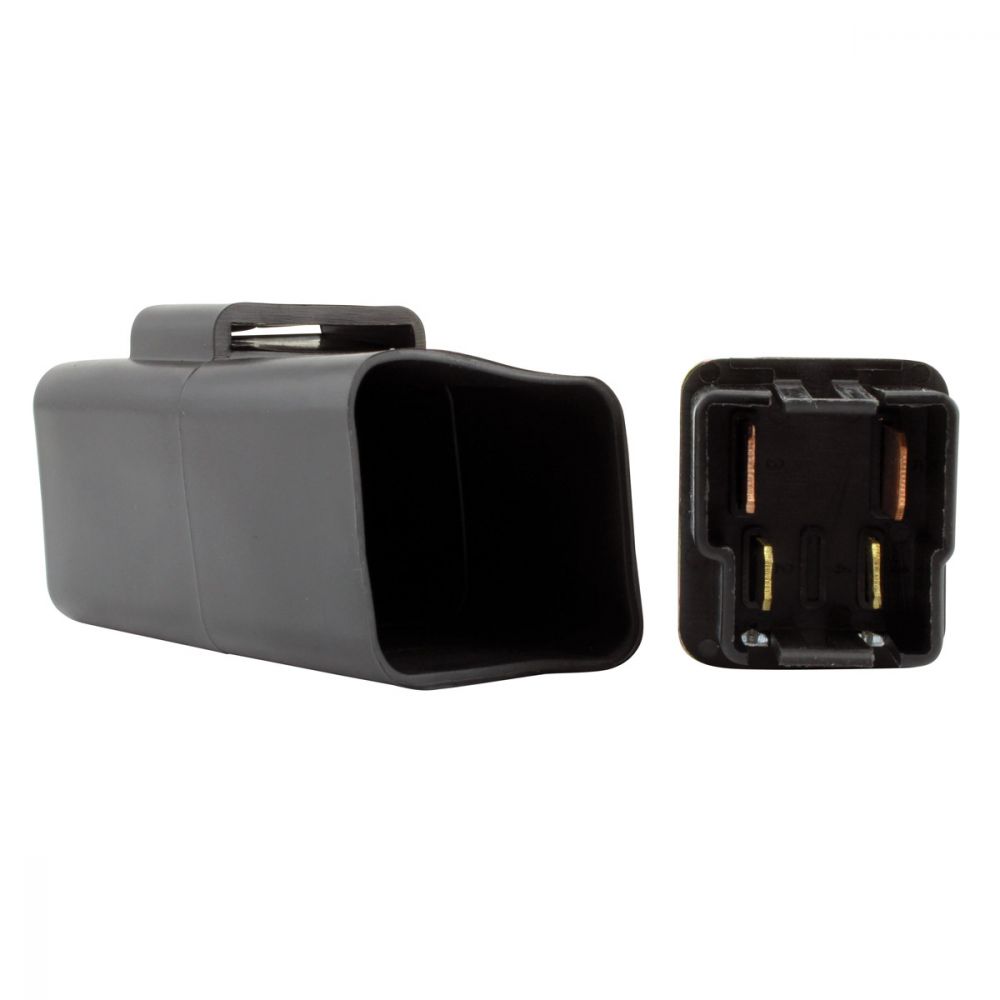

Note: Image is for reference only, actual product may vary slightly.
