RMStator Generator Stator RMS010-107397
RMStator Generator Stator RMS010-107397
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 42mm
Exterior diameter: 104mm
Thickness: 22mm
Length of wires stator to grommet: 50mm
Length of wires grommet to plug: 280mm
Length of pickup coil's wire to grommet: 130mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Green to Green = 0.7 ohms +-20%
Pickup: Black to White = 500 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107397
Fitment:
- 2018-2020 Yamaha 210 FSH
- 2017 Yamaha AR 190
- 2018-2020 Yamaha AR 210
- 2017 Yamaha SX 190
- 2018-2020 Yamaha SX 210
- 2017-2022 Yamaha WaveRunner EX EX1050
- 2017-2022 Yamaha WaveRunner EX Deluxe EX1050
- 2021 Yamaha WaveRunner EX Limited EX1050
- 2019-2021 Yamaha WaveRunner EXR ER1050
- 2021 Yamaha WaveRunner Superjet SJ1050
- 2016 Yamaha WaveRunner V1 VX1050E
- 2016-2022 Yamaha WaveRunner VX VX1050C
- 2016-2022 Yamaha WaveRunner VX Cruiser VX1050A
- 2021-2022 Yamaha WaveRunner VX Deluxe VX1050B
- 2017-2022 Yamaha WaveRunner VX Limited VX1050F
- 2019-2021 Yamaha WaveRunner VX-C VX1050G

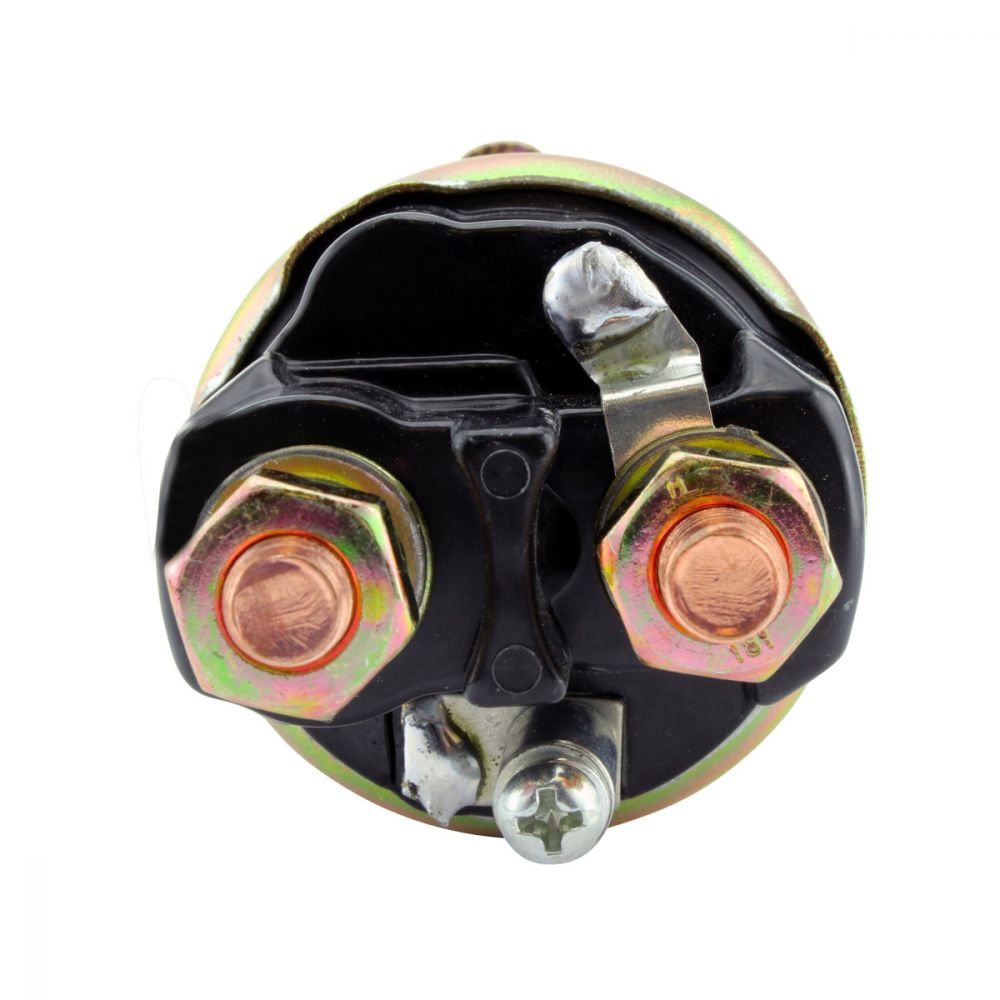

Note: Image is for reference only, actual product may vary slightly.
