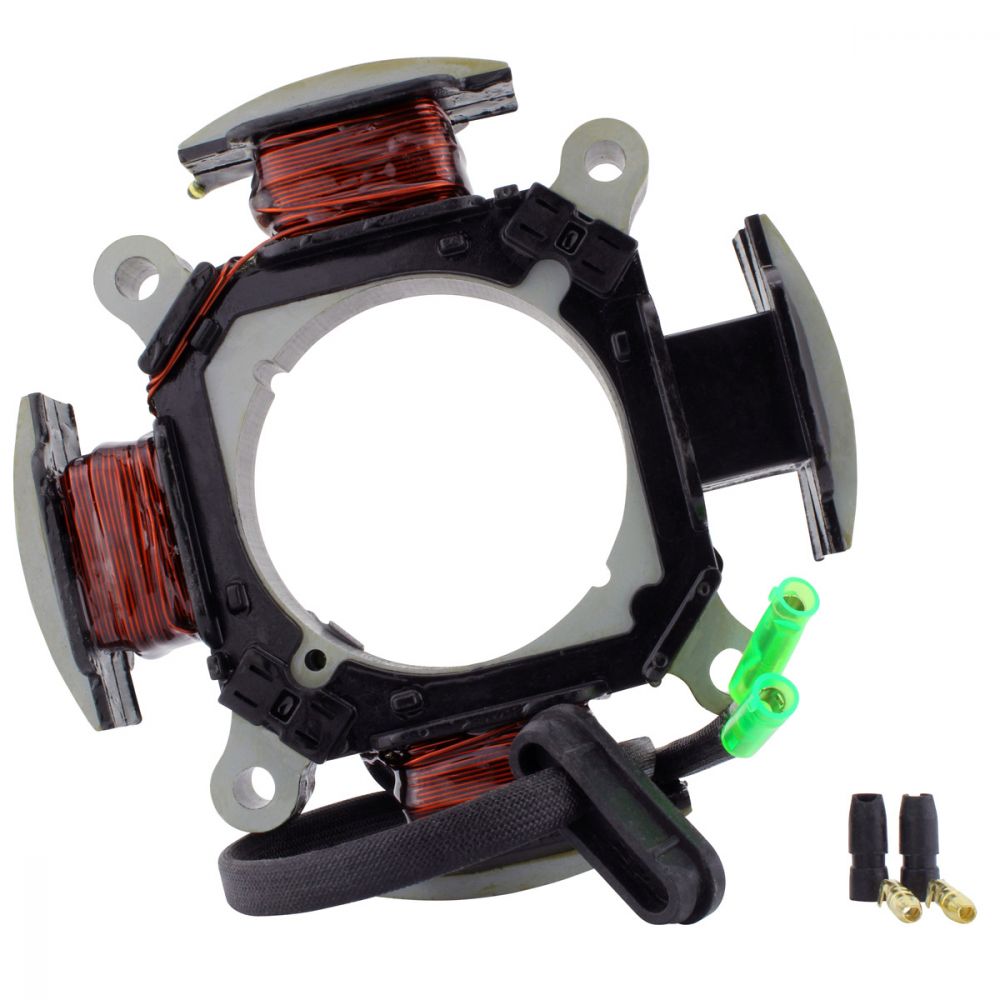

RMStator Generator Stator RMS010-107443

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 61mm
Exterior diameter: 132mm
Thickness: 16mm
Length of wires stator to grommet: 90mm
Length of wires grommet to plug: 210mm

Other specifications:

Number of wires: 2
Number of plugs: 2
Number of pins: 2
Number of poles: 4
Wire to wire resistance:
Alternator: White to white = 0.7ohms +-20%
Alternator: to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107443

Fitment:

• 2010-2013 Arctic Cat Sno Pro 120 Carb F/C
• 2014-2019 Arctic Cat ZR 120 Carb A/C
• 2020-2021 Arctic Cat ZR 120 Carb F/C
• 2005 Yamaha MZ 125
• 2014-2022 Yamaha SRX120
• 2013 Yamaha SX 120

Note: Image is for reference only, actual product may vary slightly.
