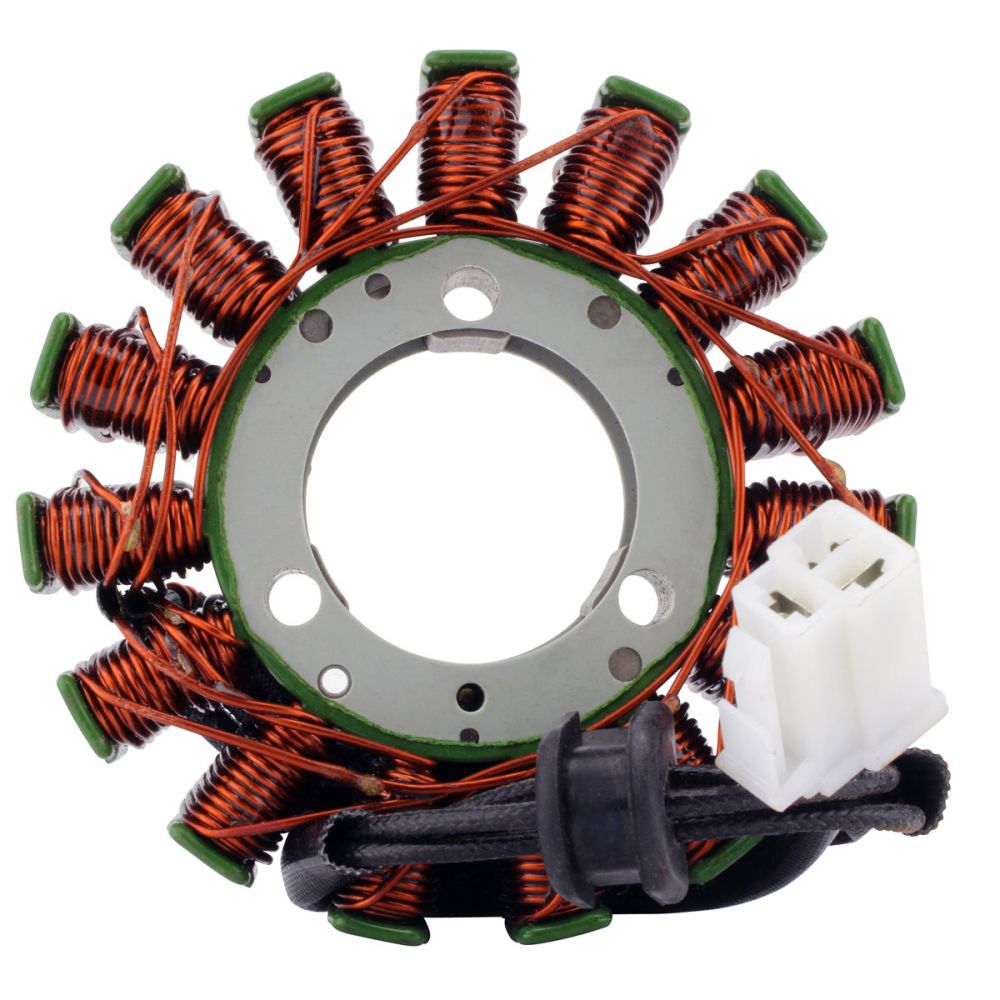

RMStator Generator Stator RMS010-107522

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

Technical Data

Dimensions:
Interior diameter: 39 mm
Exterior diameter: 105 mm
Thickness: 16 mm
Length of clamp to grommet: 85 mm
Length of wires grommet to plug: 180 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 15
Wire to wire resistance:
Alternator: Black to Black = 0.4 ohms +-20%
Alternator: to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107522

Fitment:

• 2016-2021 Suzuki GSXS1000
• 2016-2018 Suzuki GSXS1000 ABS

Note: Image is for reference only, actual product may vary slightly.
