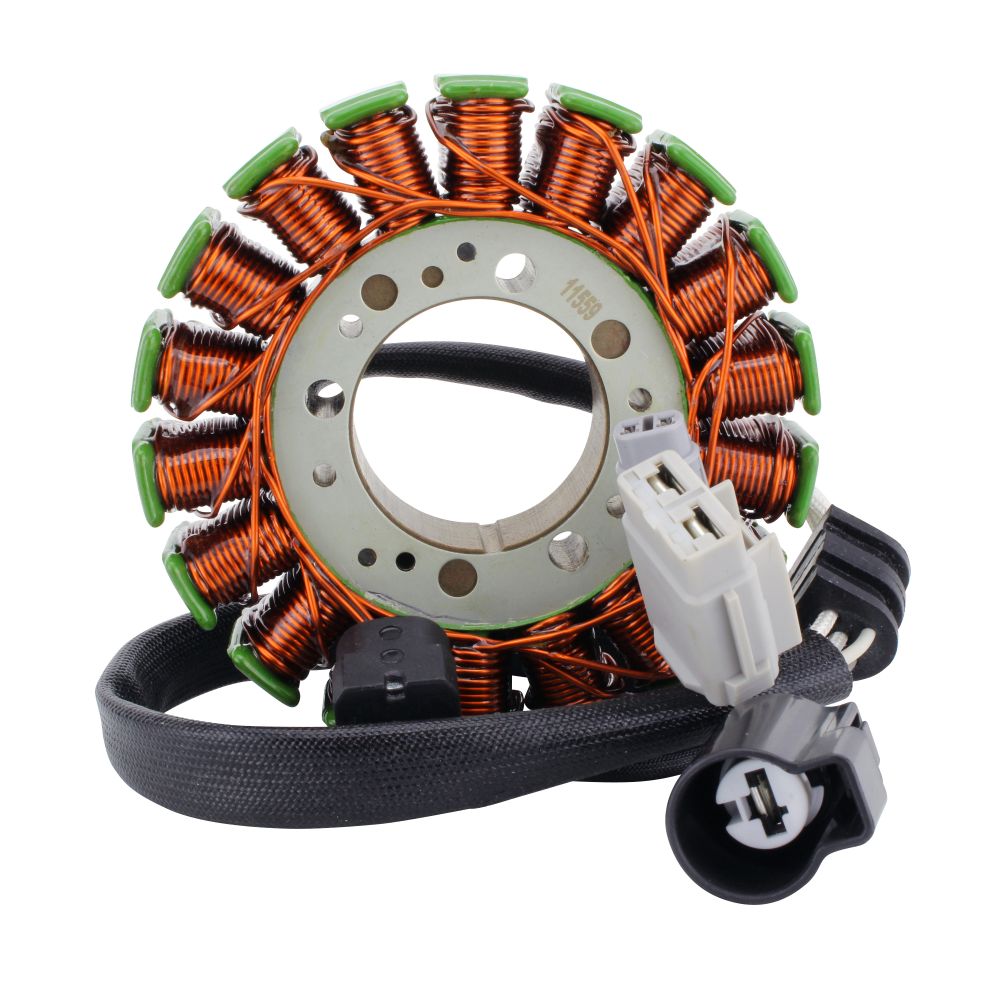

RMStator Generator Stator RMS010-107579

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 54 mm
Exterior diameter: 119 mm
Thickness: 26 mm
Length of wires stator to grommet: 170 mm
Length of wires grommet to plug: 270 mm
Length of pickup coil's wire to grommet: 150 mm

Other specifications:

Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6 ohms +-20%
Alternator: Yellow to ground = O.L
Pickup: Green to Red = 192 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107579

Fitment:

• 2014-2016 Suzuki Vstrom 1000 DL1000
• 2018-2019 Suzuki Vstrom 1000 DL1000

Note: Image is for reference only, actual product may vary slightly.
