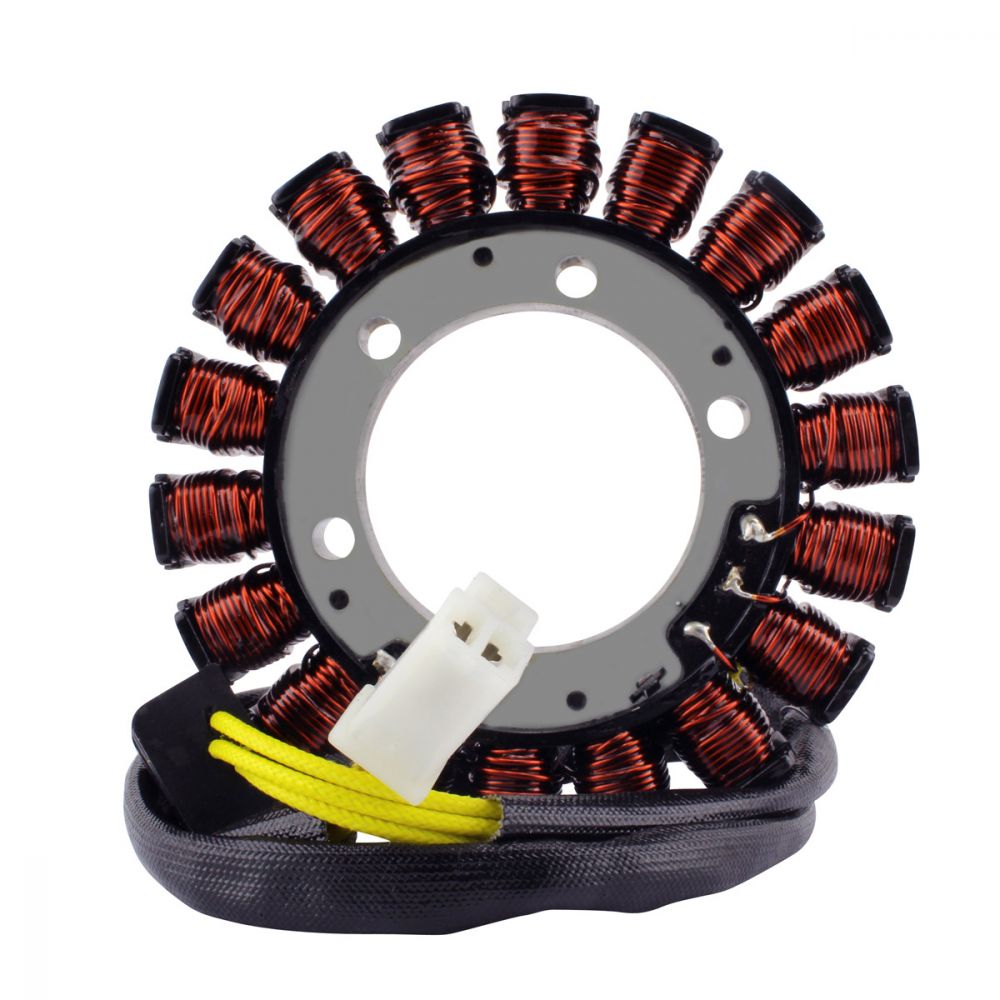

RMStator Generator Stator For 2011-2018 Kawasaki KLR650 RMS010-107602
Customer Ratings
RMStator Generator Stator For 2011-2018 Kawasaki KLR650 RMS010-107602
RMStator Generator Stator For 2011-2018 Kawasaki KLR650 RMS010-107602
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 54mm
Exterior diameter: 119mm
Thickness: 12mm
Length of wires stator to grommet: 90mm
Length of wires grommet to plug: 730mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: = 1 ohms +-20%
Alternator: to ground = O.L
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107602
Fitment:
- 2011-2018 Kawasaki KLR650
Note: Image is for reference only, actual product may vary slightly.
