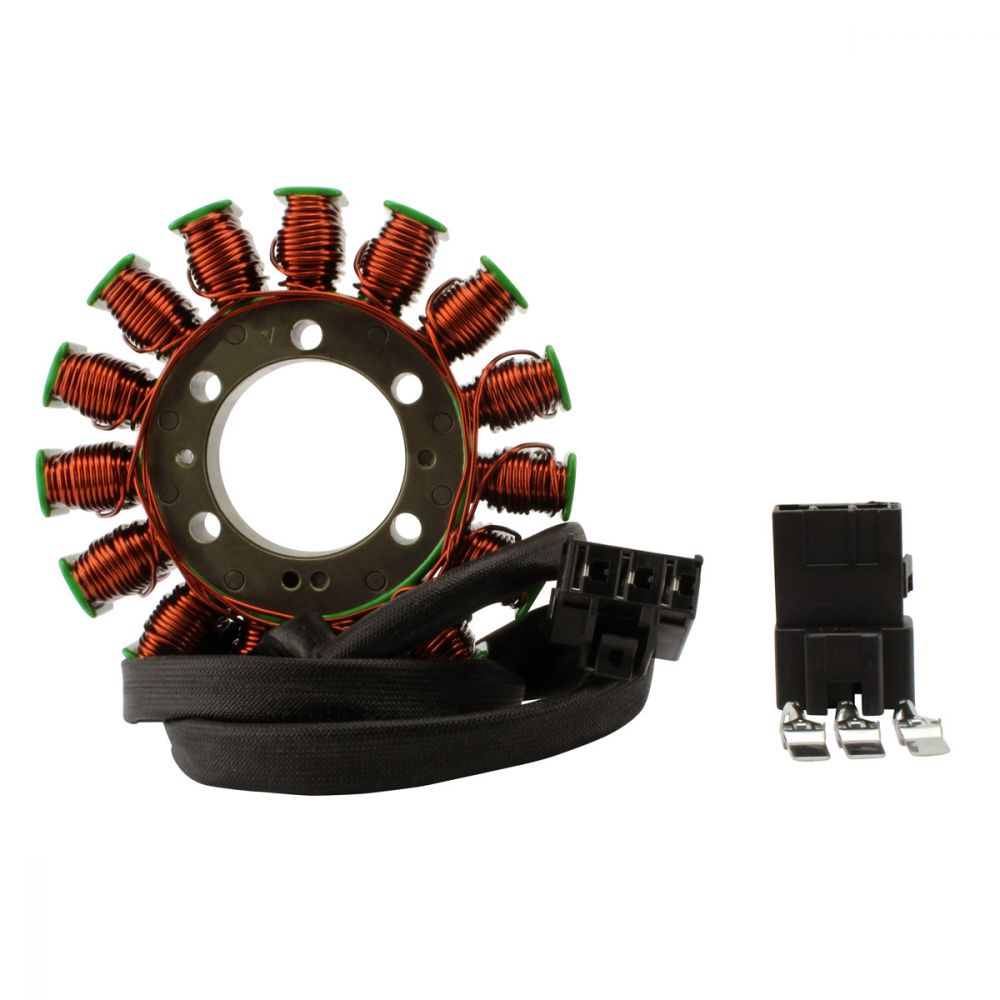

RMStator Generator Stator For 2010-2011 Honda NT700V RMS010-107692

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 20 mm
Length of wires stator to grommet: 145 mm
Length of wires grommet to plug: 650 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 15
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.4 ohms +-20%
Alternator: Yellow to Ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107692

Fitment:

• 2010-2011 Honda NT700V

Note: Image is for reference only, actual product may vary slightly.
