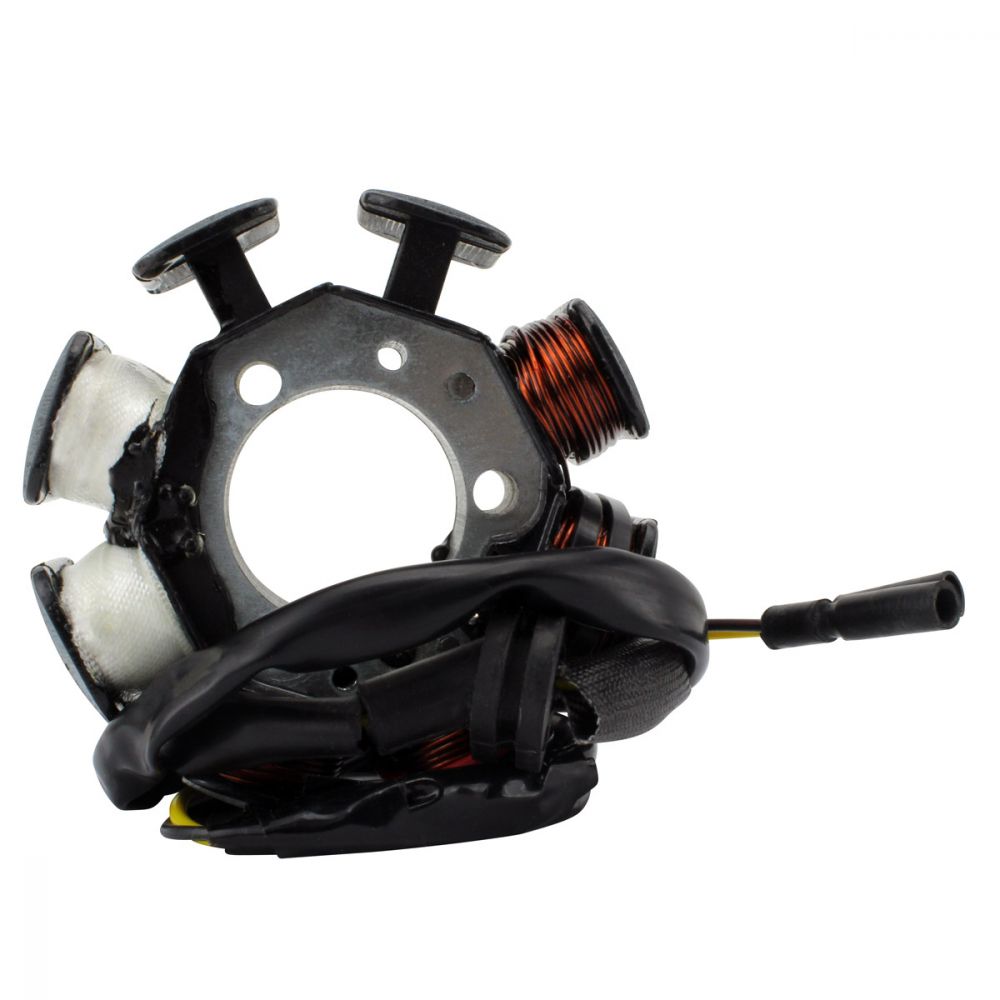

RMStator Generator Stator RMS010-107738
Customer Ratings
RMStator Generator Stator RMS010-107738
RMStator Generator Stator RMS010-107738
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 93 mm
Thickness: 18 mm
Length of wires stator to grommet: 60 mm
Length of wires grommet to plug: 525 mm
Other specifications:
Number of wires: 2
Number of plugs: 2
Number of pins: 2
Number of poles: 8
Wire to wire resistance:
Alternator: Blue to Ground = 0.7 ohms +-20%
Source: Black to Ground = 130 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107738
Fitment:
- 1984-1985 Honda XR200R
- 1984-1985 Honda XR250R
Note: Image is for reference only, actual product may vary slightly.
