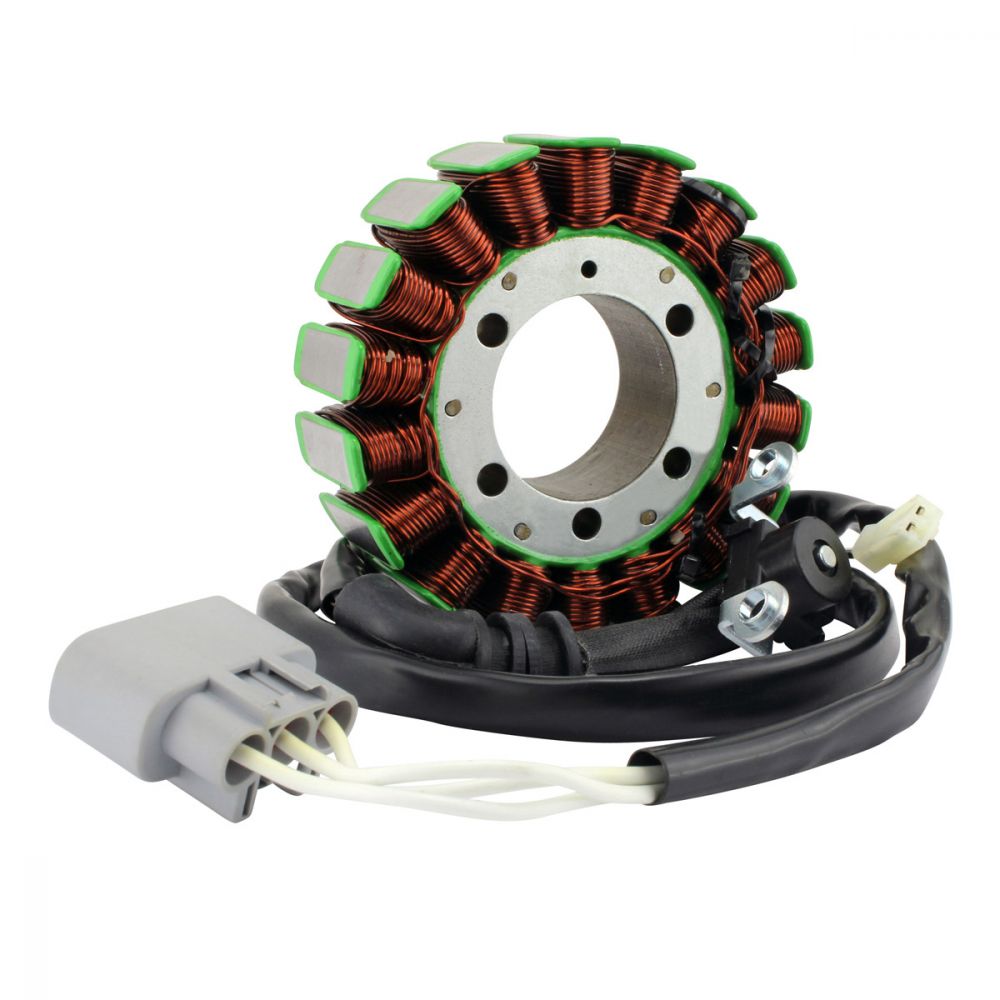

RMStator Stator RMS010-107777
Customer Ratings
RMStator Stator RMS010-107777
RMStator Stator RMS010-107777
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 105 mm
Thickness: 27 mm
Length of wires stator to grommet: 155 mm
Length of wires grommet to plug: 600 mm & 800 mm
Length of pickup coil's wire to grommet: 60 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.5 ohms +-20%
Alternator: White to ground = O.L
Pickup: Black to Grey = 272 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107777
Fitment:
- 2015-2017 Yamaha FJ09
- 2014-2017 Yamaha FZ09
- 2018-2020 Yamaha MT-09
- 2019-2020 Yamaha Tracer 900
- 2016-2021 Yamaha XSR900
Note: Image is for reference only, actual product may vary slightly.
