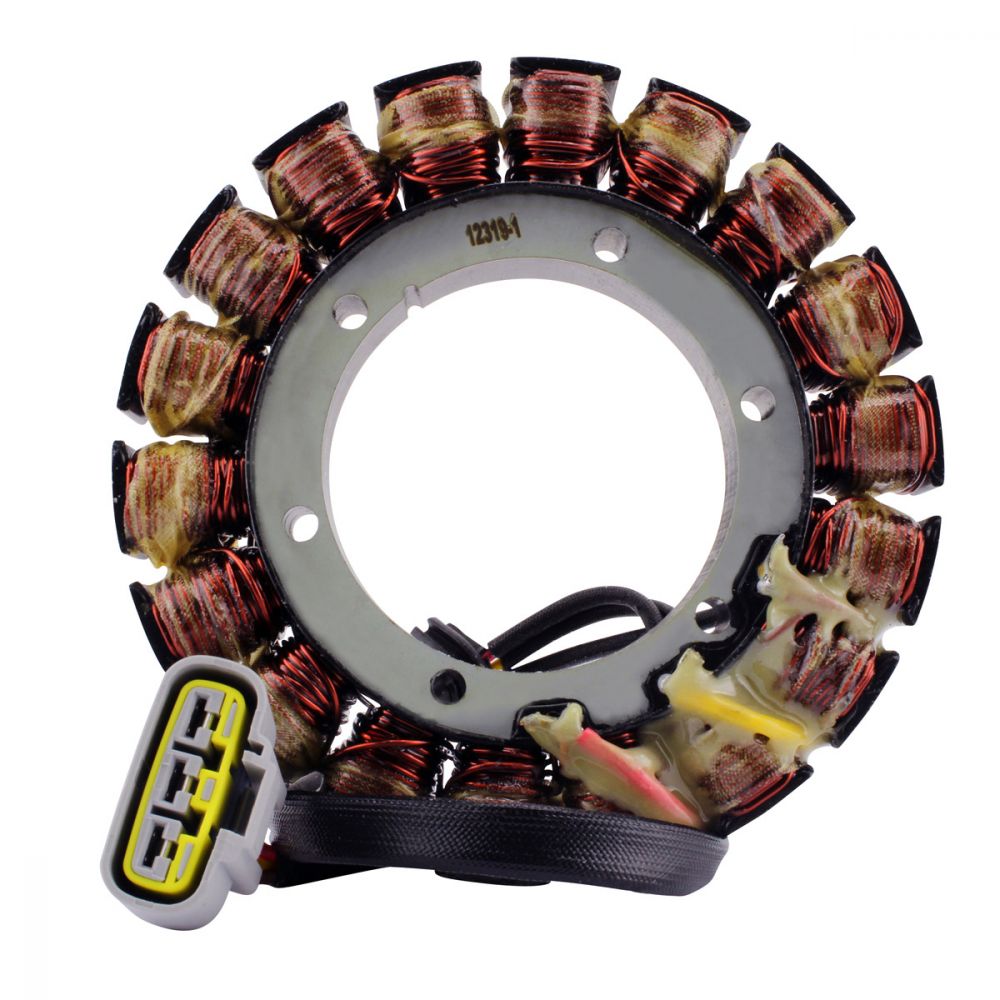

RMStator Stator RMS010-107844

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Connectors included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 74 mm
Exterior diameter: 148 mm
Thickness: 20 mm
Length of wires stator to grommet: 75 mm
Length of wires grommet to plug: 300 mm

Other specifications:

Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles: 18
Wire to wire resistance:
Alternator: Orange to Brown = 0.4 ohms +-20%
Alternator: Orange to ground = O.L

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-107844

Fitment:

• 2021-2023 Ski-doo Backcountry 600 Sport EFI L/C
• 2021-2023 Ski-doo Expedition 600 Sport EFI L/C
• 2021-2023 Ski-doo MXZ 600 Sport EFI L/C
• 2021-2023 Ski-doo Renegade 600 Sport EFI L/C
• 2021-2023 Ski-doo Skandic 600 Sport EFI L/C
• 2021-2022 Ski-doo Skandic 600 WT EFI F/C
• 2023 Ski-doo Summit 600R Sport
• 2021-2023 Ski-doo Tundra 600 LT EFI F/C
• 2021-2023 Ski-doo Tundra 600 Sport EFI L/C

Note: Image is for reference only, actual product may vary slightly.
