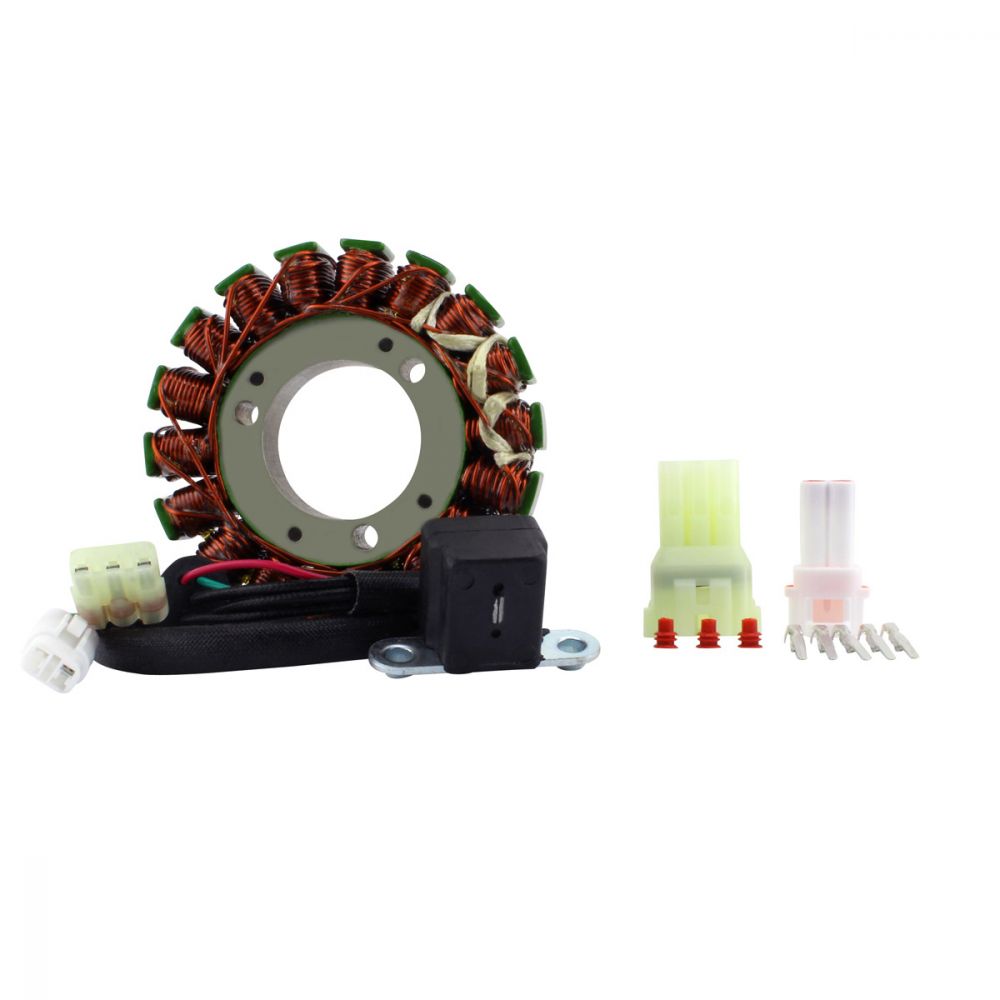

RMStator Stator RMS010-107849
Customer Ratings
RMStator Stator RMS010-107849
RMStator Stator RMS010-107849
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connectors included
- Rubber grommet included
- All products shipped are tested
20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 89 mm
Thickness: 16 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 510 mm
Length of pickup coil's wire to grommet: 85 mm
Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.7 ohms +-20%
Alternator: Black to ground = O.L
Pickup: Green to Red = 100 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107849
Fitment:
- 2017-2019 KTM 250 EXC F
- 2017-2023 KTM 300 EXC F
- 2021 KTM 350 XCF-W
- 2017 KTM 450 EXC F
- 2019-2020 KTM 450 EXC F
- 2023 KTM 450 XCF-W
- 2017-2023 KTM 500 EXC F
- 2020-2021 KTM 500 XCF-W
Note: Image is for reference only, actual product may vary slightly.
