RMStator Stator RMS010-107884
Customer Ratings

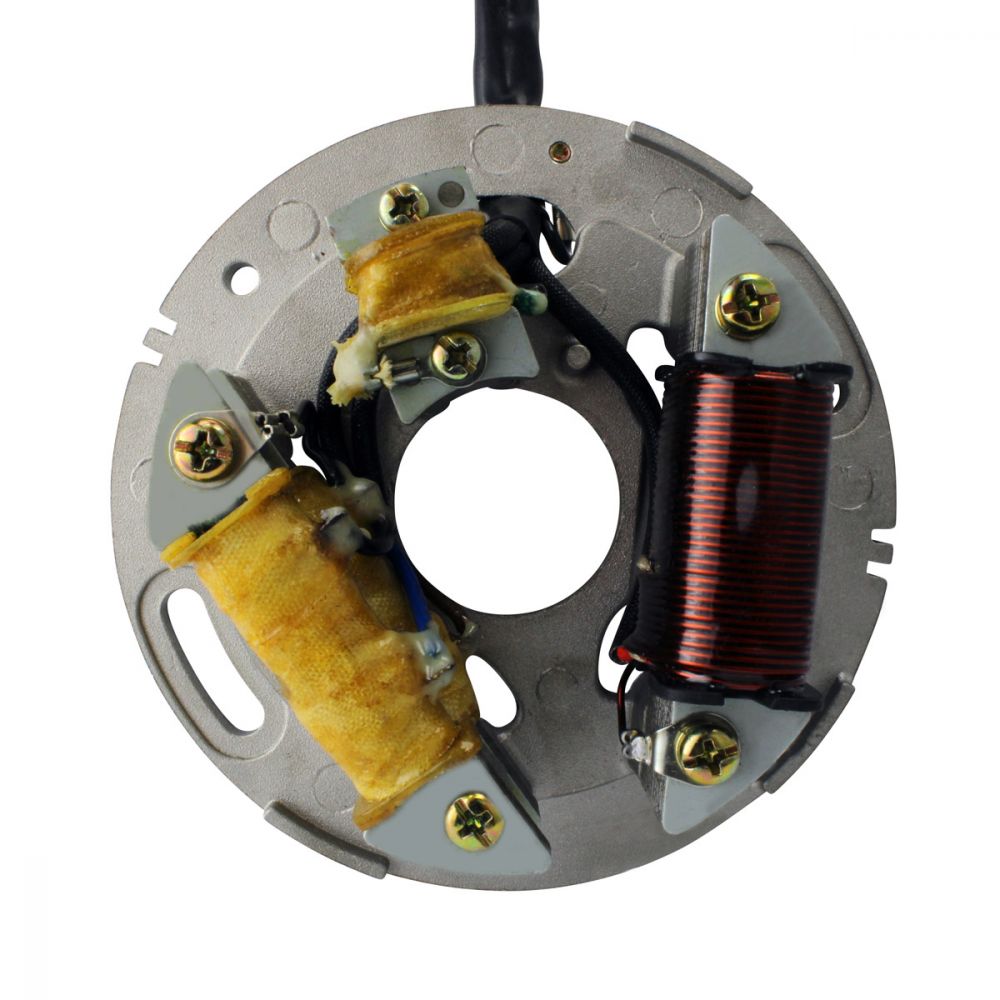

RMStator Stator RMS010-107884
RMStator Stator RMS010-107884
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 126 mm
Thickness: 22 mm
Length of wires stator to grommet: 25 mm
Length of wires grommet to plug: 80 mm
Length of pickup coil's wire to grommet: NA
Other specifications:
Number of wires: 5
Number of plugs: 5
Number of pins: 5
Number of poles: 1
Wire to wire resistance:
Alternator: Yellow to Black = 0.6 ohms +-20%
Pickup: White/Red to Black = 9.8 ohms +-20%
Source 1 : Blue to Black = 16.2 ohms +-20%
Source 2 : Brown to Black = 358 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107884
Fitment:
- 1984 Yamaha Enticer 300 ET300
- 1984-1986 Yamaha Enticer 340 ET340 LT
- 1984-1986 Yamaha Enticer 340 ET340
Note: Image is for reference only, actual product may vary slightly.
