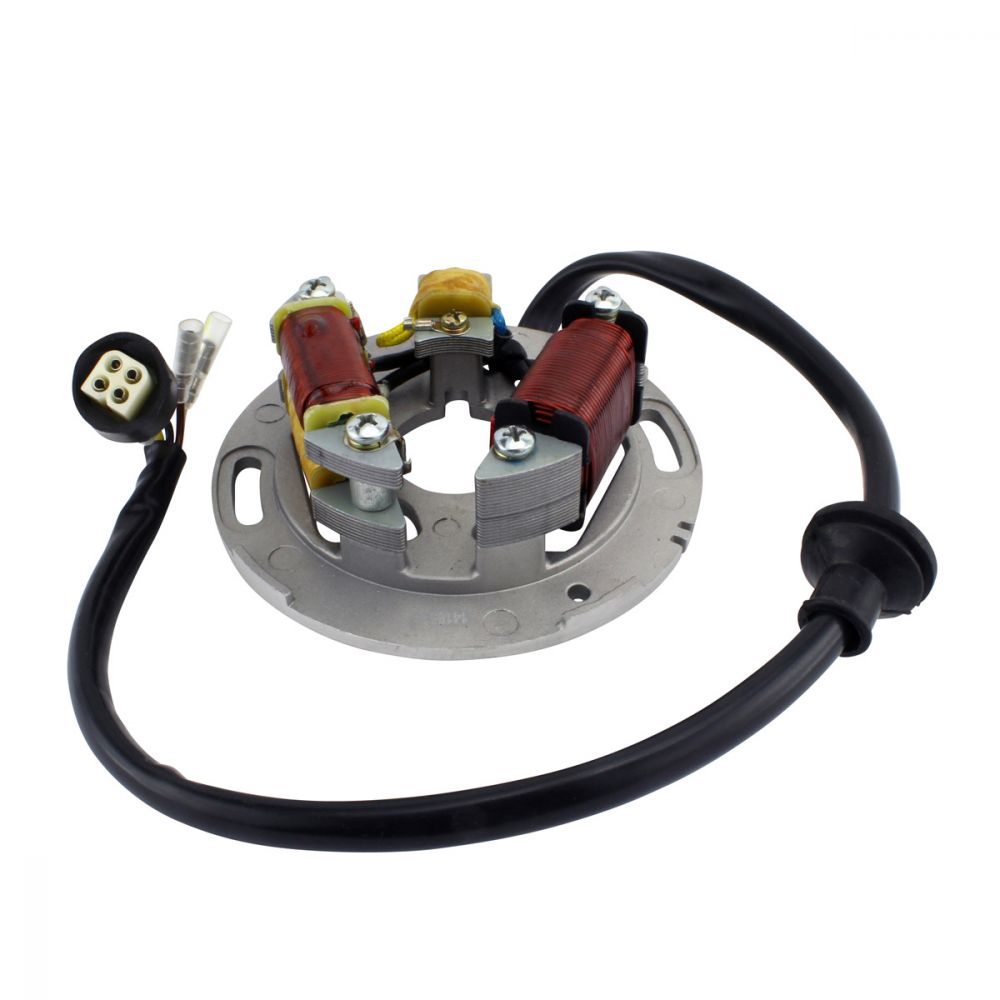

RMStator Stator RMS010-107886
Customer Ratings
RMStator Stator RMS010-107886
RMStator Stator RMS010-107886
Brand new aftermarket Stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Rubber grommet included
- Back Plate included
- All products shipped are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
Technical Data
Dimensions:
Interior diameter: 35 mm
Exterior diameter: 126 mm
Thickness: 22 mm
Length of wires stator to grommet: 25 mm
Length of wires grommet to plug: 480 mm
Other specifications:
Number of wires: 6
Number of plugs: 3
Number of pins: 6
Number of poles: 1
Alternator #1 1p : Yellow to Black = 0.6 ohms +-20%
Alternator # 2 1p : Yellow/Black to Black = 1.2 ohms +-20%
Alternator 3p : Black to ground = Grounded
Pickup: White/Red to Black = 13.8 ohms +-20%
Source 1: Brown to Black = 570 ohms +-20%
Source 2: White to Black = 0.4 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS010-107886
Fitment:
- 1990 Yamaha Exciter EX570 High Altitude
- 1990 Yamaha Exciter EX570 LE
- 1990 Yamaha Exciter EX570 LE High Altitude
- 1987-1990 Yamaha Exciter EX570
- 1988-1989 Yamaha Exciter EX570E Deluxe
Note: Image is for reference only, actual product may vary slightly.
