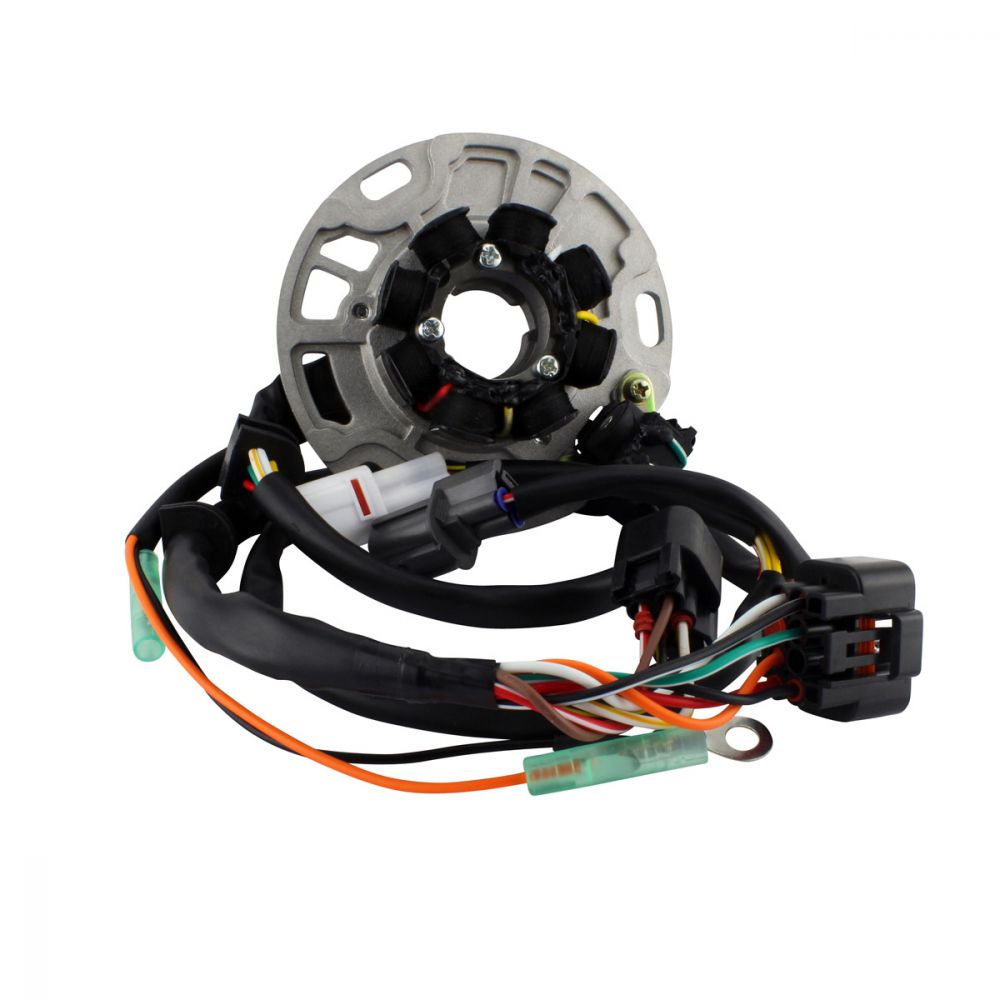

RMStator Stator For 1998 Kawasaki KX250 RMS010-108073

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• Back Plate included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Technical Data

Dimensions:
Interior diameter: 28 mm
Exterior diameter: 61 mm
Thickness: 14 mm
Length of wires stator to grommet: 45 mm
Length of wires grommet to plug: 925 mm
Length of pickup coil's wire to grommet: 70 mm

Other specifications:

Number of wires: 18
Number of plugs: 7
Number of pins: 18
Number of poles: 8
Wire to wire resistance:
Alternator: Yellow to Yellow/White = 2.4 ohms +-20%
Pickup: White/Yellow to Green/White = 245 ohms +-20%
Source: Red to White = 11.2 ohms +-20%

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS010-108073

Fitment:

• 1998 Kawasaki KX250

Note: Image is for reference only, actual product may vary slightly.
