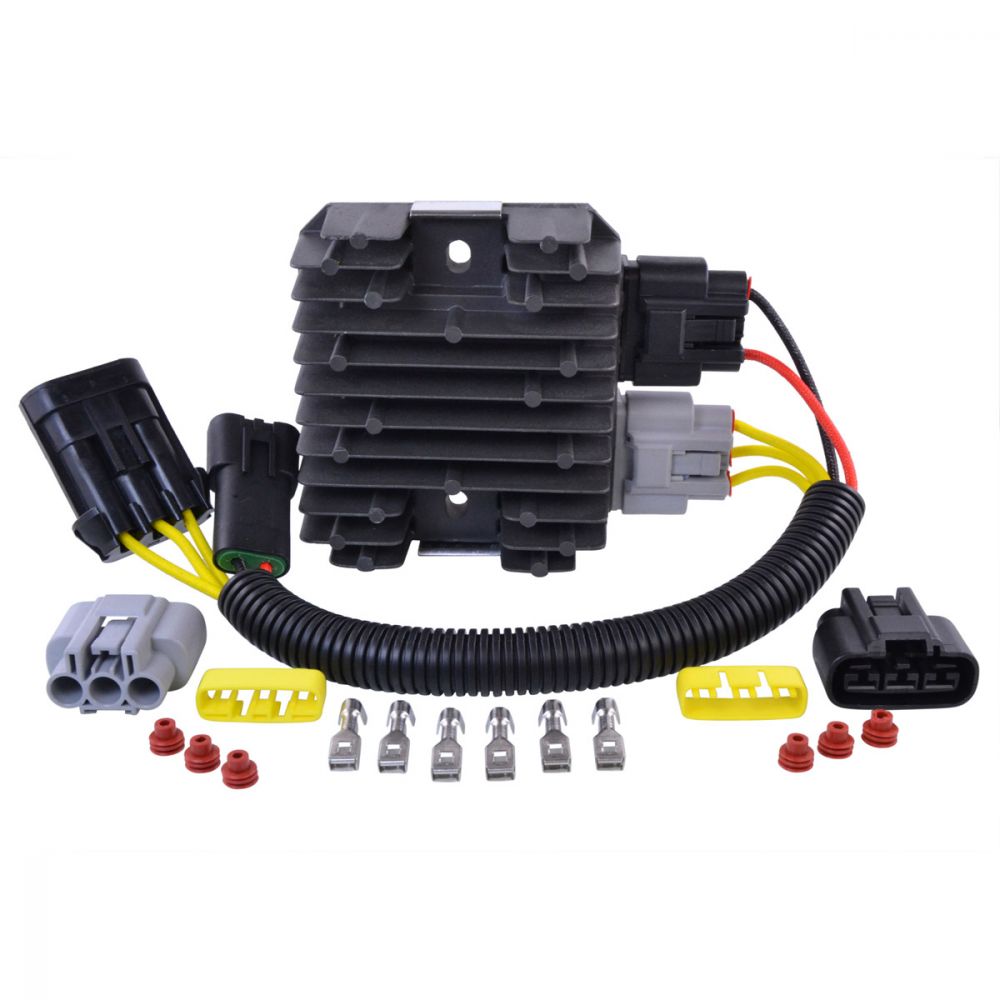

RMStator Mosfet Upgraded Performance Rectifier RMS020-102158
Customer Ratings
RMStator Mosfet Upgraded Performance Rectifier RMS020-102158
RMStator Mosfet Upgraded Performance Rectifier RMS020-102158
Don't settle for an unreliable charging system!
2013-2018 RZR 900/1000 models are well known for repeated voltage regulator failures due to manufacturing quality issues and poor placement on the vehicle.Fix and forget the problem with RMS Lab's advanced technologies!
With increased demand for an alternative solution to subpar OEM parts and unproven manufacturer recalls, we had our RMS Labs' engineers tackle the problem. They came up with a permanent solution to give Polaris RZR owners confidence in their vehicles once and for all.
This STAGE 2 Kit Includes:
- Meets & exceeds Polaris RZR regulator recall Z-16-01-C specifications
- Improved heavy duty Polaris recommended voltage regulator housing
- RMSTATOR renowned MOSFET regulation circuit for low operating temperature
- Plug & Ride Design
- Automotive grade stock location wiring harness with OEM-quality heavy-duty connectors
You might want to consider our other kits
- RMS020-103779 Heavy Duty Mosfet Voltage Regulator Performance Upgrade ? STAGE 3 ?Front Hood Relocation Kit
RMSTATOR renowned MOSFET voltage regulation design
Significantly decreases internal operating temperature with highly efficient MOSFET transistor regulation circuit. This technology runs much cooler than the OEM silicon rectifier regulation circuit and requires much less power to operate.
Automotive grade wiring harness with OEM-quality heavy-duty connectors
Made with the same Delphi connectors as OEM Polaris parts, our wiring harnesses are manufactured in a factory with controlled quality processes. They use the same Cross-Link braided copper wire as the OEM parts, and resist heat, oil, acid, gas and more with very low electrical resistance.
Plug & Ride design
Our voltage regulator housings are manufactured to OEM specifications for a fast and easy installation.
WARNING : This product is suitable for certain 2016-2017 models whose regulator connects directly to the main harness of the vehicle without conversion harness.
If you own a 2016 RZR 1000 or any other RZR from a year prior to 2016, you must use a conversion harness to install this regulator.
Please refer to the section below to determine the product number that applies to your model year.
RZR 900 XP 2013-2014
RZR XP 1000 2014-2016
OEM: 2206367
Upgrade Kit : RMS020-103793
Relocation Kit : RMS020-103775
RZR 900 2015, RZR 900 XC
RZR 900 S, RZR 4 900
OEM: 2206620, 2206473
Upgrade Kit : RMS020-103771
Relocation Kit : RMS020-103779
Technical Data
Dimensions:
Width: 110 mm
Length: 121 mm
Height: 43 mm
Fixation holes center to center: 85 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Wires Length: 300 mm
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-102158
Fitment:
- 2017-2019 Polaris ACE 500
- 2017-2019 Polaris ACE 570 EFI
- 2017-2019 Polaris ACE 900 SP
- 2016-2024 Polaris General 1000 EPS
- 2017-2024 Polaris General 4 1000
- 2021-2024 Polaris General XP 1000 Deluxe
- 2021-2024 Polaris General XP 4 1000 Deluxe Ride Command Edition
- 2016 Polaris Ranger 325 ETX EFI
- 2020-2024 Polaris Ranger 1000 Full Size
- 2017-2024 Polaris Ranger 500 4x4 EFI
- 2014 Polaris Ranger 570 EFI
- 2016-2024 Polaris Ranger 570 EFI
- 2017-2018 Polaris Ranger 900 Diesel
- 2022-2024 Polaris Ranger Crew 1000
- 2014-2024 Polaris Ranger Crew 570 EFI
- 2022-2024 Polaris Ranger Crew 570 4x4 Full Size
- 2013-2017 Polaris Ranger Crew 900
- 2019 Polaris Ranger Crew XP 1000 EPS
- 2021 Polaris Ranger Crew XP 1000 EPS
- 2017-2018 Polaris Ranger Crew XP 1000
- 2021-2024 Polaris Ranger Crew XP 1000
- 2013-2019 Polaris Ranger Crew XP 900
- 2014-2017 Polaris Ranger Diesel 1000
- 2019 Polaris Ranger XP 1000 EPS
- 2017-2019 Polaris Ranger XP 1000
- 2021-2024 Polaris Ranger XP 1000
- 2021-2024 Polaris Ranger XP 1000 EPS
- 2016 Polaris Ranger XP 570
- 2015-2018 Polaris RZR 4 900 EPS
- 2015 Polaris RZR 4 XP 900
- 2017-2020 Polaris RZR 570 EFI
- 2022-2024 Polaris RZR 570 EPS
- 2015 Polaris RZR 900 INTL
- 2014-2024 Polaris RZR 900
- 2022-2024 Polaris RZR Pro XP
- 2022-2024 Polaris RZR PRO XP 4
- 2022-2024 Polaris RZR PRO XP 4 Ultimate
- 2018-2024 Polaris RZR RS1 EPS 1000 EFI F/C
- 2017 Polaris RZR S 570 EPS
- 2020 Polaris RZR S 900
- 2015-2017 Polaris RZR S 900
- 2021-2024 Polaris RZR Trail 570
- 2022-2024 Polaris RZR Trail 900
- 2022-2024 Polaris RZR Trail S 1000 Premium
- 2022-2024 Polaris RZR Trail S 900
- 2022-2024 Polaris RZR Turbo R 4 Sport
- 2016-2019 Polaris RZR XP Turbo 900
- 2021 Polaris RZR XP Turbo 1000
- 2014-2017 Polaris RZR XP 1000 EPS INTL
- 2014 Polaris RZR XP 1000 EPS
- 2016-2024 Polaris RZR XP 1000 EPS
- 2016-2019 Polaris RZR XP 4 Turbo 900
- 2021 Polaris RZR XP 4 Turbo 1000
- 2014-2018 Polaris RZR XP 4 1000 EPS
- 2021-2024 Polaris RZR XP 4 1000 EPS
- 2017-2024 Polaris Scrambler 850
- 2017-2024 Polaris Scrambler XP 1000 EPS
- 2019 Polaris Sportsman 450 4X4 EFI F/C
- 2021-2024 Polaris Sportsman 450 HO
- 2019 Polaris Sportsman 570 Utility HD EFI
- 2019 Polaris Sportsman 570 Touring EFI EPS F/C
- 2020 Polaris Sportsman 570 Latin
- 2020 Polaris Sportsman 570 Utility Edition EPS
- 2017-2018 Polaris Sportsman 570
- 2018-2019 Polaris Sportsman 570 6x6
- 2019-2020 Polaris Sportsman 570 EFI
- 2019-2024 Polaris Sportsman 570 EPS
- 2020-2024 Polaris Sportsman 570 Touring
- 2020-2024 Polaris Sportsman 570 Utility HD
- 2021-2024 Polaris Sportsman 570
- 2021-2024 Polaris Sportsman 570 6x6
- 2021-2024 Polaris Sportsman 570 Touring EPS
- 2022-2024 Polaris Sportsman 570 Trail
- 2017-2019 Polaris Sportsman 850
- 2017-2019 Polaris Sportsman 850 High Lifter Edition
- 2021-2024 Polaris Sportsman 850
- 2021-2024 Polaris Sportsman 850 High Lifter Edition
- 2021-2024 Polaris Sportsman 850 Touring EPS
- 2017 Polaris Sportsman ACE 570
- 2019 Polaris Sportsman SP 570 EFI F/C
- 2019 Polaris Sportsman SP 570 Touring EFI F/C
- 2017-2019 Polaris Sportsman SP 850 Touring
- 2018-2019 Polaris Sportsman SP 850
- 2019 Polaris Sportsman X2 570 EPS Tractor EFI F/C
- 2019-2024 Polaris Sportsman X2 570 EPS
- 2017-2019 Polaris Sportsman XP 1000 Tractor
- 2017-2019 Polaris Sportsman XP 1000 Touring Tractor
- 2017-2019 Polaris Sportsman XP 1000 High Lifter Edition
- 2017-2019 Polaris Sportsman XP 1000 Touring
- 2017-2024 Polaris Sportsman XP 1000
- 2021-2024 Polaris Sportsman XP 1000 Touring
- 2022-2024 Polaris Sportsman XP 1000 High Lifter Edition
