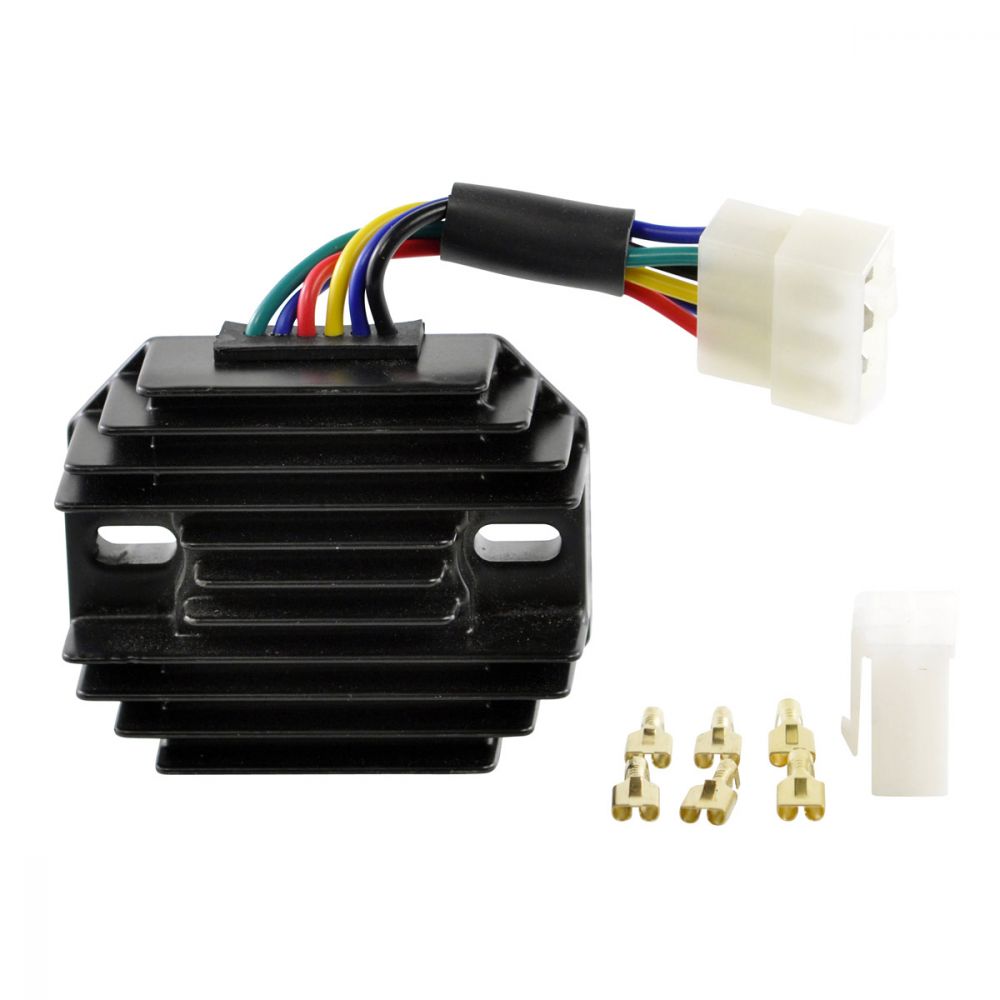

RMStator Voltage Regulator RMS020-102842

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Width: 68 mm
Length: 83 mm
Height: 28 mm
Wires length: 70 mm
Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 1
Number of pins: 6
Number of wires: 6

Wire color and function:
(2) Blue Wires: Stator AC in
Red Wire: Battery +
Black Wire: Battery ?
Yellow: Ignition switch +
Green: Low charge indicator light

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-102842

Fitment:

• 2008-2017 Kubota RTV500 4X4

Note: Image is for reference only, actual product may vary slightly.
