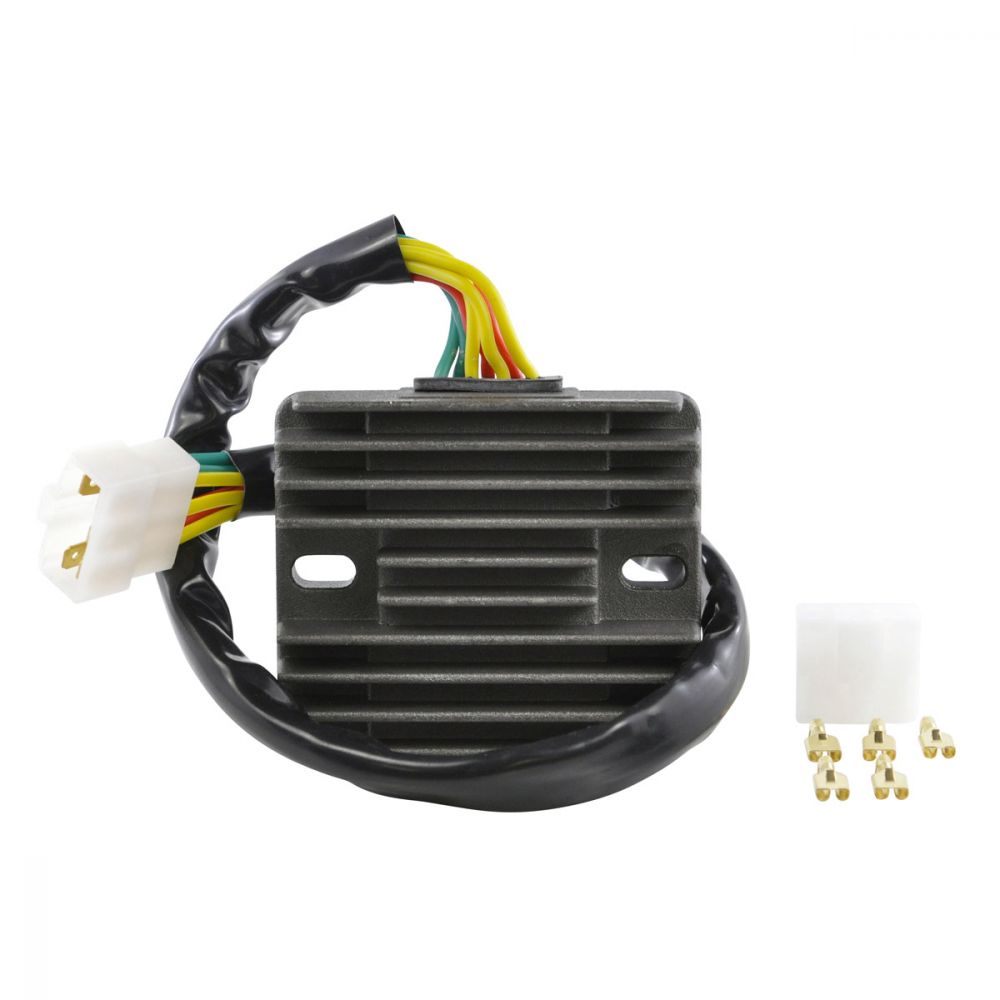

RMStator Regulator Rectifier RMS020-103273
Customer Ratings
RMStator Regulator Rectifier RMS020-103273
RMStator Regulator Rectifier RMS020-103273
Brand new aftermarket voltage regulator rectifier
- Direct replacement to your original unit.
- Plug-and-play, direct fit, easy installation.
- No assembly required
- Higher grade of electric components.
- The quality exceeds the OEM equipment
- All products shipped are tested
We have even included the opposite connector (main harness side) as we know these are often melted corroded defective and a major cause for repetitive electrical issues.
All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.
Technical Data
Dimensions:
Width: 80 mm
Length: 92 mm
Height: 25 mm
Wires length: 500 mm
Fixation holes center to center: 75 mm
Other specifications:
Number of plugs: 1
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A500W
Open Circuit Voltage: 15V
Operation Temperature: -20° to 85°
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-103273
Fitment:
- 2001-2005 Yamaha FZ1 1000
- 2001-2011 Yamaha V Star 650 XVS650 Custom
- 2013-2016 Yamaha V Star 650 XVS650 Custom
- 2005-2010 Yamaha V Star 650 XVS650 Midnight Custom
- 2001-2010 Yamaha V Star 650 XVS650A Classic
- 2003-2010 Yamaha V Star 650 XVS650AT Silverado
- 1999 Yamaha YZF750R
Note: Image is for reference only, actual product may vary slightly.
