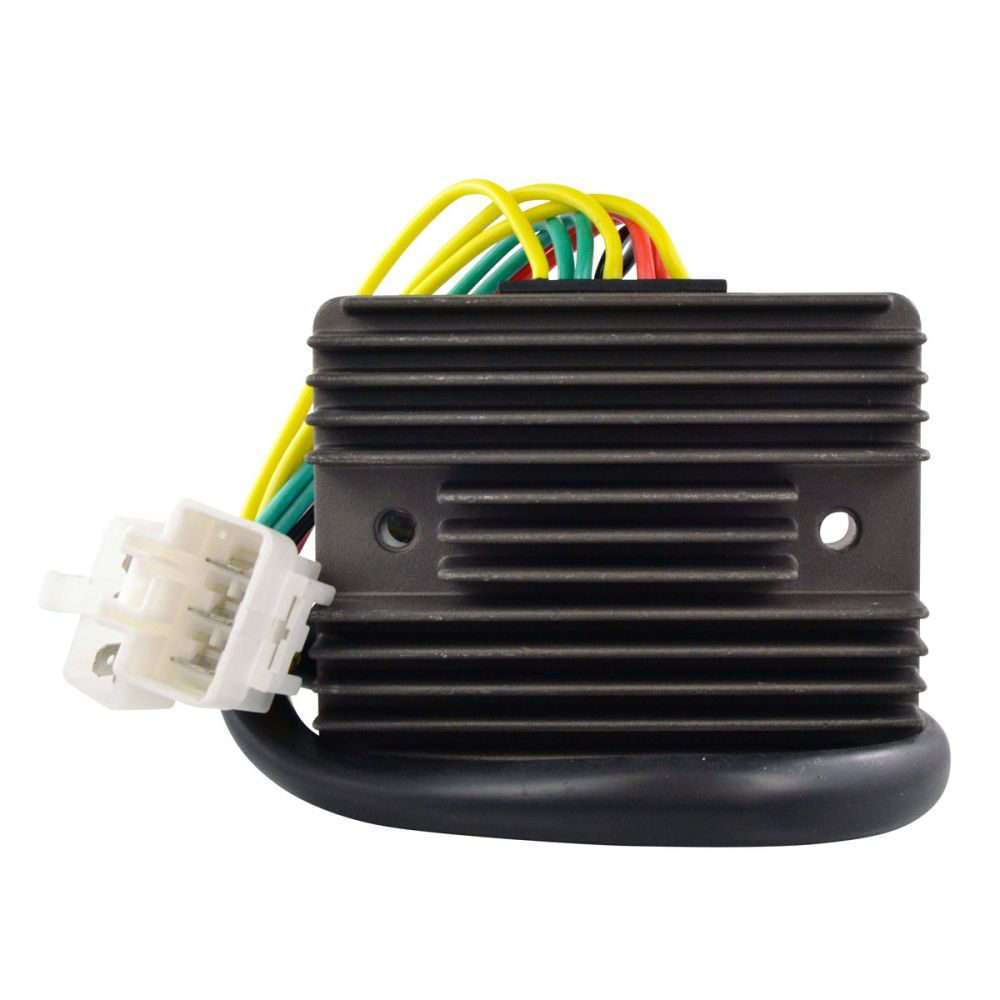

RMStator Voltage Regulator Rectifier For 2001-2003 Honda CBR1100XX RMS020-103673

Brand new aftermarket voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required
• Higher grade of electric components.
• The quality exceeds the OEM equipment
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Width: 110 mm
Length: 86 mm
Height: 38 mm
Wires length: 500 mm
Fixation holes center to center: 80 mm

Other specifications:
Number of plugs: 2
Number of pins: 8
Number of wires: 8
Minimum Charging Voltage: 14.5V +- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: 15V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-103673

Fitment:

• 2001-2003 Honda CBR1100XX

Note: Image is for reference only, actual product may vary slightly.
