RMStator 50 AMP Regulator RMS020-106974

WHY USE SERIES ENHANCED TECHNOLOGY?

This product is an advanced technology that lowers operating temperatures for extended longevity and better performance than the OEM part.

THE SERIES VOLTAGE REGULATION TECHNOLOGY

RMSTATOR's new SERIES voltage regulator brings better reliability and charging system performance. A SERIES regulator is a significant upgrade over typical shunt type voltage regulators. A shunt regulator controls battery voltage by grounding the stator coils to dissipate current as heat, rather than sending it on to the battery. SERIES regulators control battery voltage by intermittently disconnecting stator coils from the regulator electronics, limiting current flow through the unit and on to the battery completely. This results in lower regulator and stator temperatures, more accurate voltage regulation, and increased reliability of your charging system components.

THE ULTIMATE SOLUTION TO YOUR REGULATOR RECTIFIER PROBLEMS!It is time to update or replace your voltage regulator with the advanced series type.It runs cooler than all OEM, Shunt or MOSFET, diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• The quality exceeds the OEM equipment
• Improved heat sink and charging capabilities
• Higher grade of electric components
• All shipped products are tested

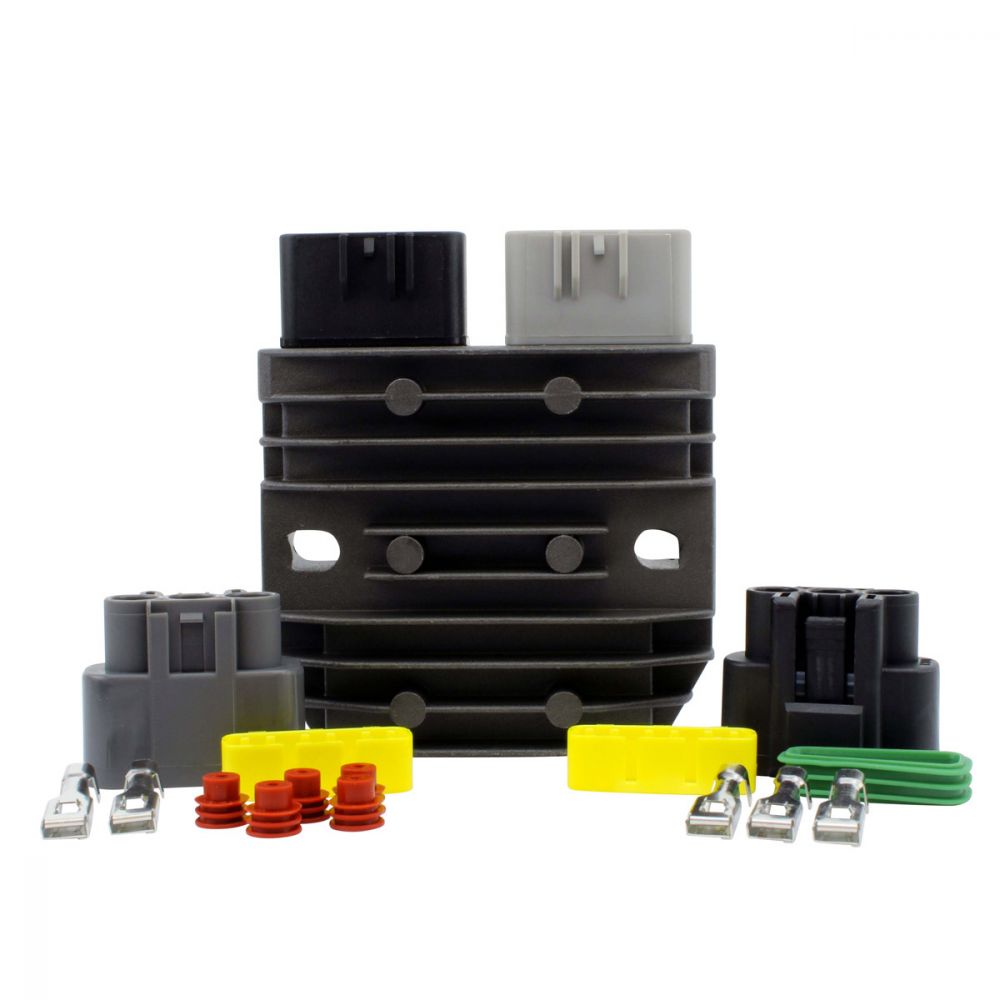

We even include the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Technical Data

Dimensions:
Width: 84 mm
Length: 90 mm
Height: 32 mm
Fixation holes center to center: 69 mm

Other specifications:
Number of plugs: 2
Number of pins: 5

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-106974

Fitment:

• 2017-2021 Bombardier Traxter 500 Automatic
• 2018-2019 Can-Am Defender HD10 4X4
• 2017-2021 Can-Am Defender HD5 4X4
• 2018-2019 Can-Am Defender HD8 4X4
• 2017-2022 Can-Am Outlander 450 4X4
• 2019-2022 Can-Am Outlander 450 4X4 T
• 2018-2019 Can-Am Outlander 450 4X4 T3 EFI F/C
• 2018-2022 Can-Am Outlander 570 4X4
• 2019-2022 Can-Am Outlander 570 4X4 T
• 2018 Can-Am Outlander 570 4X4 T3 EFI F/C
• 2019-2020 Can-Am Outlander 570 4X4 T3 PRO EFI L/C
• 2020 Can-Am Outlander 570 4X4 T3 Pro Nordic EFI L/C
• 2019 Can-Am Outlander 570 4x4 DPS
• 2021-2022 Can-Am Outlander 570 4x4 DPS
• 2019-2020 Can-Am Outlander 570 4x4 DPS T3 EFI F/C
• 2022 Can-Am Outlander 570 4x4 XMR DPS
• 2022 Can-Am Outlander 570 4x4 XT DPS
• 2015-2016 Can-Am Outlander L 450 4X4
• 2015 Can-Am Outlander L 500 4X4
• 2016 Can-Am Outlander L 570 4X4
• 2016 Can-Am Outlander L 570 4x4 XMR DPS
• 2015-2016 Can-Am Outlander L MAX 450 4X4
• 2015 Can-Am Outlander L MAX 500 4X4
• 2016 Can-Am Outlander L MAX 570 4X4
• 2017-2022 Can-Am Outlander Max 450 4X4
• 2020-2022 Can-Am Outlander Max 450 4X4 T
• 2019-2021 Can-Am Outlander Max 450 4X4 T3 EFI F/C
• 2017-2021 Can-Am Outlander Max 450 4x4 DPS
• 2019-2022 Can-Am Outlander Max 570 4X4
• 2019-2022 Can-Am Outlander Max 570 4X4 T
• 2018 Can-Am Outlander Max 570 4X4 T3 EFI F/C
• 2020 Can-Am Outlander Max 570 4x4 XT DPS
• 2008-2009 Can-Am Spyder GS Roadster SE5 990
• 2008-2009 Can-Am Spyder GS Roadster SM5 990
• 2010-2012 Can-Am Spyder RS Roadster SE5 990
• 2010-2012 Can-Am Spyder RS Roadster SM5 990
• 2012 Can-Am Spyder RS-S Roadster SE5 990
• 2018 Can-am Traxter HD8
• 2012 Lynx 49 Ranger 600
• 2011-2012 Lynx 59 YETI 600
• 2012 Lynx 69 YETI 600
• 2010-2012 Lynx Adventure 1200 GT
• 2011-2012 Lynx Adventure 600 GT
• 2021 Ski-doo Backcountry 600 Sport EFI L/C
• 2010-2017 Ski-doo Expedition 1200 4 TEC TUV EFI L/C
• 2010-2019 Ski-doo Expedition 1200 SE 4-TEC TUV EFI L/C
• 2015 Ski-doo Expedition 600 Sport ACE L/C
• 2021 Ski-doo Expedition 600 Sport EFI L/C
• 2015-2021 Ski-doo Expedition 900 SE ACE EFI L/C
• 2016-2017 Ski-doo Expedition 900 Sport ACE EFI L/C
• 2018 Ski-doo Expedition 900 SWT ACE EFI L/C
• 2020-2021 Ski-doo Expedition 900 SWT ACE EFI L/C
• 2010-2018 Ski-doo Grand Touring 1200 SE 4 TEC EFI L/C
• 2016-2018 Ski-doo Grand Touring 600 LE HO E-TEC EFI L/C
• 2011-2014 Ski-doo Grand Touring 600 Sport ACE EFI L/C
• 2019-2021 Ski-doo Grand Touring 600 Sport ACE EFI L/C
• 2015 Ski-doo Grand Touring 600 Sport Carb L/C
• 2017-2021 Ski-doo Grand Touring 900 LE ACE EFI L/C
• 2019-2021 Ski-doo Grand Touring 900 Limited ACE Turbo EFI L/C
• 2009-2015 Ski-doo GSX 1200 SE 4 TEC EFI L/C
• 2009 Ski-doo GTX 1200 SE 4 TEC EFI L/C
• 2009-2014 Ski-doo MXZ 1200 Adrenaline 4 TEC EFI L/C
• 2017-2018 Ski-doo MXZ 1200 Adrenaline 4 TEC EFI L/C
• 2016 Ski-doo MXZ 1200 Blizzard 4-TEC
• 2009 Ski-doo MXZ 1200 Renegade 4 TEC EFI L/C
• 2009 Ski-doo MXZ 1200 Renegade X 4 TEC EFI L/C
• 2009-2016 Ski-doo MXZ 1200 TNT EFI L/C
• 2021 Ski-doo MXZ 600 Sport EFI L/C
• 2009-2016 Ski-doo MXZ X 1200 4-TEC EFI L/C
• 2010-2018 Ski-doo Renegade 1200 Adrenaline 4-TEC EFI L/C
• 2016-2018 Ski-doo Renegade 1200 Enduro 4-TEC
• 2021 Ski-doo Renegade 600 Sport EFI L/C
• 2016 Ski-doo Renegade 900 Adrenaline ACE EFI L/C
• 2016-2018 Ski-doo Renegade 900 Enduro ACE
• 2010-2015 Ski-doo Renegade X 1200 4-TEC EFI L/C
• 2021 Ski-doo Skandic 600 Sport EFI L/C
• 2012-2014 Ski-doo Skandic 600 SWT ACE EFI L/C
• 2016-2017 Ski-doo Skandic 600 SWT ACE EFI L/C
• 2011-2021 Ski-doo Skandic 600 WT ACE
• 2021 Ski-doo Skandic 600 WT EFI F/C
• 2015-2017 Ski-doo Skandic SWT 900 EFI L/C
• 2019-2021 Ski-doo Skandic SWT 900 EFI L/C
• 2015-2021 Ski-doo Skandic WT LC 900 EFI L/C
• 2012-2017 Ski-doo Tundra 600 LT ACE EFI L/C
• 2019 Ski-doo Tundra 600 LT ACE EFI L/C
• 2021 Ski-doo Tundra 600 LT ACE EFI L/C
• 2021 Ski-doo Tundra 600 LT EFI F/C
• 2012-2018 Ski-doo Tundra 600 Sport ACE EFI L/C
• 2020-2021 Ski-doo Tundra 600 Sport ACE EFI L/C
• 2021 Ski-doo Tundra 600 Sport EFI L/C
• 2019-2020 Yamaha Grizzly 700 YFM700D 4x4 FI
• 2020 Yamaha Kodiak 450 YFM450 4x4 Auto
• 2019-2020 Yamaha Kodiak 700 YFM700K 4x4 FI
• 2018-2020 Yamaha MT-07
• 2019 Yamaha Niken MXT 900
• 2019-2020 Yamaha Niken GT MXT 900
• 2021 Yamaha Tenere 700 XTZ07
• 2019-2020 Yamaha Tracer 900
• 2021-2022 Yamaha Wolverine RMAX4 1000 YXF10
• 2021 Yamaha Wolverine RMAX4 1000 YXF10 Limited Edition
• 2021-2022 Yamaha Wolverine X2 850 YXE85 4x4 XT-R
• 2021-2022 Yamaha Wolverine X4 850 YXF85 4x4 XT-R
• 2021 Yamaha YXF 850 Wolverine XE
• 2019-2020 Yamaha YXZ1000R EPS
• 2022 Yamaha YXZ1000R EPS
• 2019-2022 Yamaha YXZ1000R SS EPS

Note: Image is for reference only, actual product may vary slightly.
