RMStator Voltage Regulator RMS020-107335
Customer Ratings
RMStator Voltage Regulator RMS020-107335
RMStator Voltage Regulator RMS020-107335
Why use Mosfet Enhanced technology?
Runs cooler
Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas
Less load on the stator, less work, less fuel is used and you save.
Regulated energy
The power charging your battery is steadier and smooth.
?
Extended battery life
Extends the battery's life and cold cranking capacity.
More engine power
Removes stator load resulting in more engine power.
Optimized power
Optimize power delivery by switching the stator coils on or off.
With?
design
This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.
Brand new Mosfet Voltage Regulator Rectifier
STOP BURNING YOUR REGULATOR RECTIFIER !It is time to update or replace your voltage regulator with the advanced MOSFET type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- The quality exceeds the OEM equipment
- Improved heat sink and charging capabilities
- Higher grade of electric components
- All shipped products are tested
All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.
We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.
Technical Data
Dimensions:
Width: 98mm
Length: 112mm
Height: 46mm
Wires length: 130mm
Distance between fixation holes center to center: 80 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20°C to 85°C
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-107335
Fitment:
- 2013-2015 Victory Boardwalk
- 2015-2017 Victory Gunner
- 2008-2017 Victory Hammer
- 2012-2017 Victory High Ball
- 2008-2016 Victory Jackpot
- 2013-2017 Victory Judge
- 2008-2012 Victory Kingpin
- 2011-2012 Victory Vegas
- 2016-2017 Victory Vegas
- 2008-2016 Victory Vegas 8 Ball

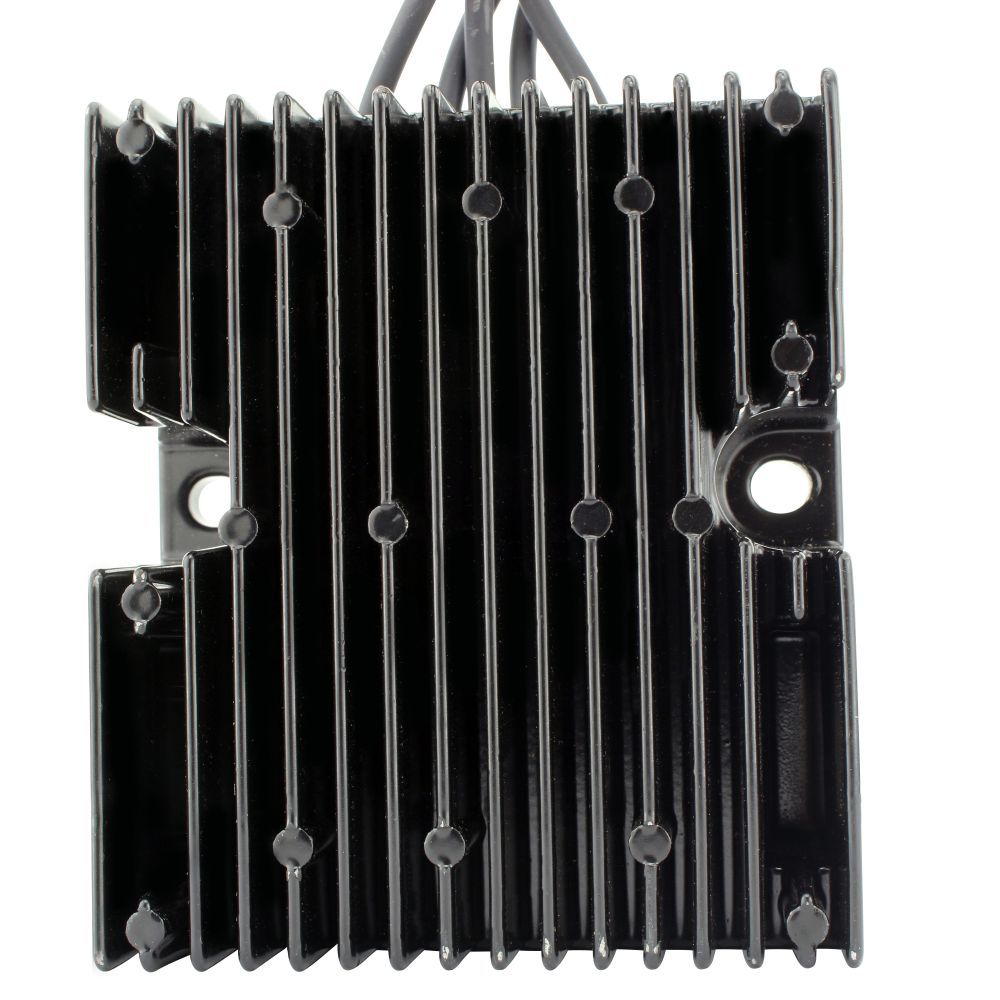

Note: Image is for reference only, actual product may vary slightly.
