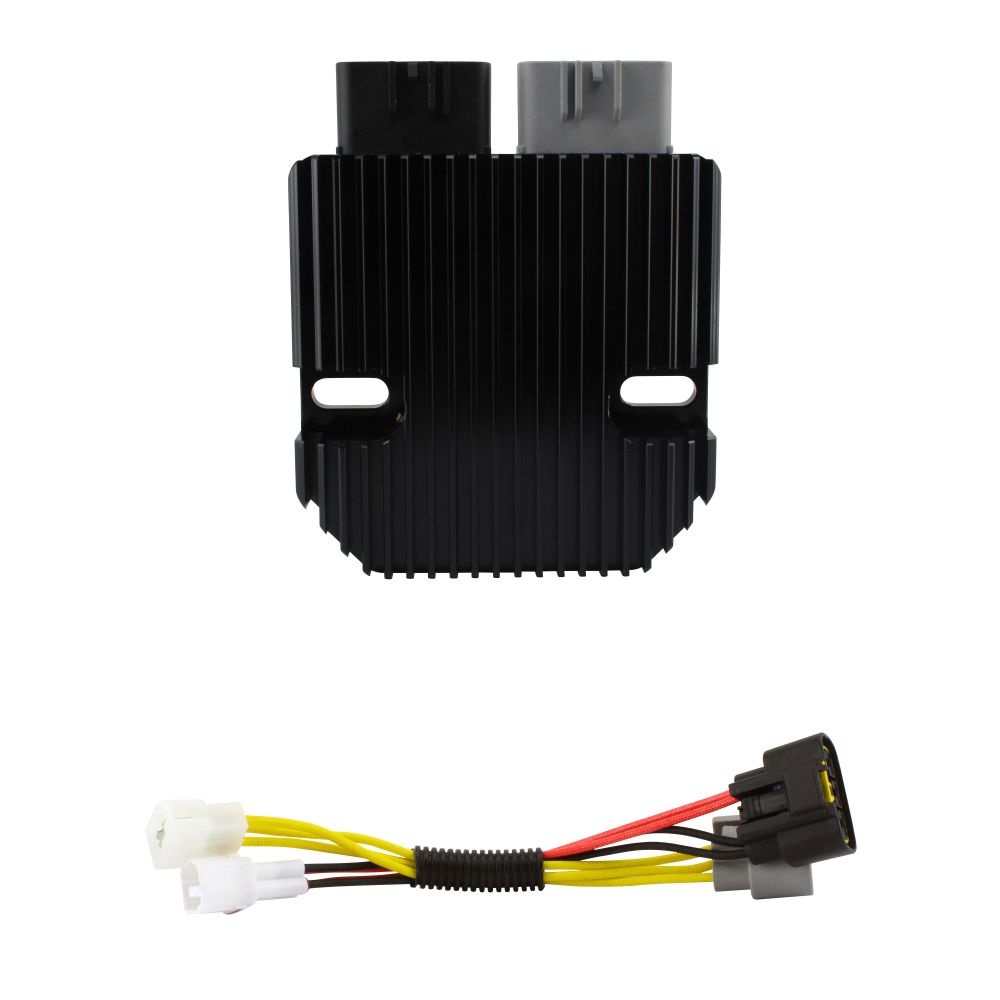

RMStator REVOLT Revolt Voltage Regulator RMS020-107861

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Technical Data

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&deg C to 85&degC

Wires length : 150 mm
Number of yellow wires : 3
Number of red wires : 1
Number of green wires : 1
Number of plugs : 3

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-107861

Fitment:

• 2007-2009 Suzuki Bandit 1250S GSF1250S
• 2016 Suzuki Bandit 1250S GSF1250S
• 2008-2009 Suzuki B-King GSX1300BK
• 2005-2009 Suzuki Boulevard C50 VL1800
• 2011-2017 Suzuki Boulevard C50 VL1800
• 2019 Suzuki Boulevard C50 VL1800
• 2004 Suzuki Boulevard C50T VL800T
• 2006-2009 Suzuki Boulevard C50T VL800T
• 2011-2017 Suzuki Boulevard C50T VL800T
• 2005-2009 Suzuki Boulevard C90 VL1500
• 2005-2009 Suzuki Boulevard C90T VL1500T
• 2005-2009 Suzuki Boulevard M50 VZ800
• 2013-2017 Suzuki Boulevard M50 VZ800
• 2011 Suzuki GSX1250FA ABS
• 2005-2009 Suzuki GSXR1000
• 2011-2016 Suzuki GSXR1000
• 2006-2009 Suzuki GSXR600
• 2011-2019 Suzuki GSXR600
• 2006-2009 Suzuki GSXR750
• 2011-2019 Suzuki GSXR750
• 2015-2016 Suzuki GSXS750
• 2008-2009 Suzuki Hayabusa GSX1300R
• 2011-2012 Suzuki Hayabusa GSX1300R
• 2001-2005 Suzuki Intruder Volusia 800 VL800
• 2008-2009 Suzuki Katana 650 GSX650F
• 2005-2006 Suzuki King Quad 700 LTA700X 4x4
• 2009 Suzuki SFV650 Gladius
• 2014-2015 Suzuki SFV650 Gladius
• 2017 Suzuki SV650
• 2008-2009 Suzuki Vstrom 650 DL650
• 2011-2017 Suzuki Vstrom 650 DL650
• 2019 Suzuki Vstrom 650 DL650

Note: Image is for reference only, actual product may vary slightly.
