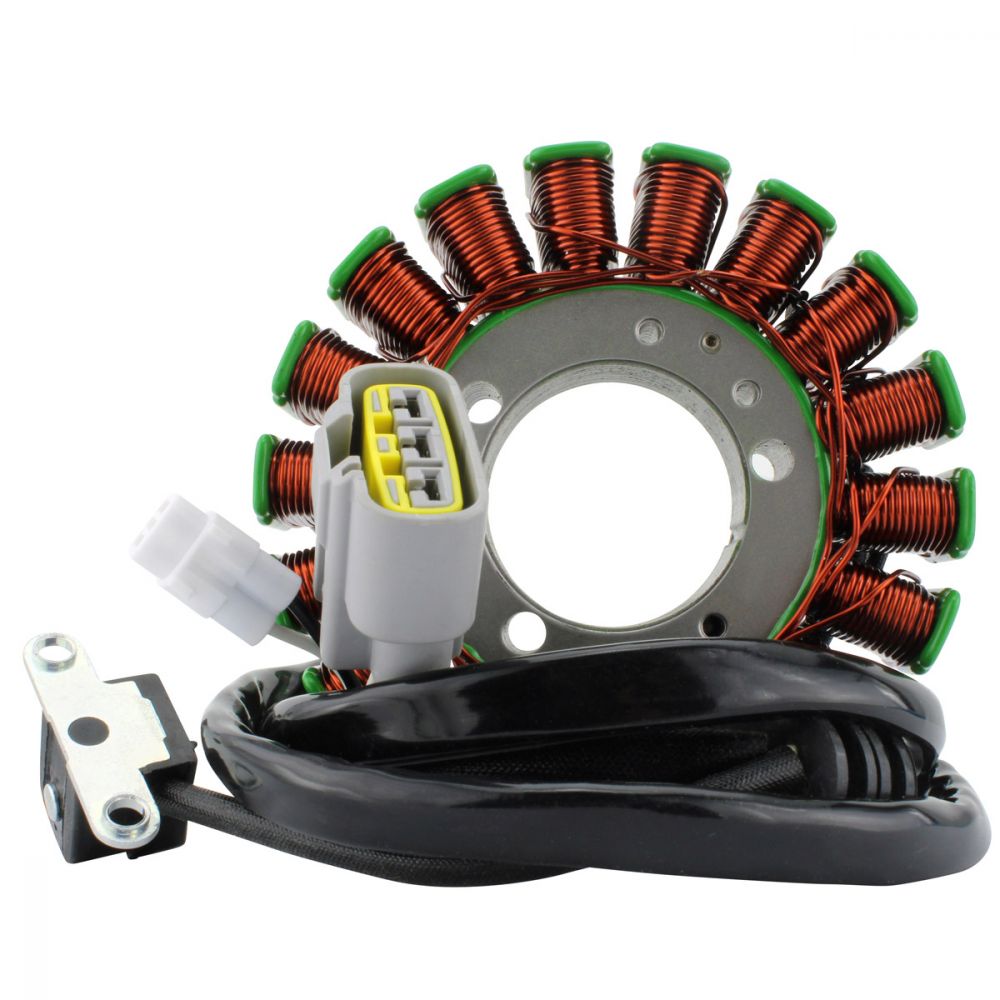

RMStator Spylt Stator Kit With Flywheel And Puller Tool RMS020-107992

Name: RMStator Spylt Stator Kit With Flywheel And Puller Tool RMS020-107992
Brand: RMStator
SKU: RMS020-107992-RMSTATOR-0924-A
Price: 1224.23 USD
Availability: OutOfStock
Rating: 5.0 (3 reviews)

$1,224.23~~$1,500.00~~

Customer Ratings

4.9/5 (546 Reviews)

4.81/5 (1,689 Reviews)

Customer Reviews ⭐️ Lionparts has awesome customer service and can’t thank them enough for their help in getting my order/setup correct! - Tom M. ⭐️ Best customer service I have experienced in a very long time. Product is high quality and fits perfect - Christy ⭐️ LionParts has been very consistent, and helpful finding the necessary parts for my needs! - Curtis ⭐️ Had an awesome experience with Lionsparts! I bought my KFI snow plow from them through Trevor who was very knowledgeable and helpful! - Eric

RMStator Spylt Stator Kit With Flywheel And Puller Tool RMS020-107992

$1,224.23~~$1,500.00~~

MPN: RMS020-107992

Questions? Call or text us at:888-927-3076

Item is in stockOnly 0 left in stockItem is out of stock Item is unavailable

RMStator Spylt Stator Kit With Flywheel And Puller Tool RMS020-107992

Brand new REVOLT Voltage Regulator

Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!

RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products on the market

SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.

DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.

PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.

LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.

Join REVOLT, the new era of voltage regulation!

Solve your Polaris RZR & Sportsman charging system issues today, once and for all, with RMSTATOR!

IMPORTANT NOTICE: This kit includes two wiring harness according to Polaris recal # Z-16-01-C (OEM # 2206620, 2206367,2206473). We strongly suggest you to relocate both of your regulators to make sure they do not wear out prematurely due to mud, dust or rocks.

All item pictures are accurate, matching exactly what you will receive.

Technical Data

Dual Output Stator Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires Stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm & 550 mm

Other specifications :

Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18

Wire to wire resistance :

Alternator: Yellow/Black to Yellow/Black = 0.5 ohms +-20%

REVOLT Voltage Regulator Rectifier :

Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm

Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20&deg C to 85&degC

Harness :
Wires length : 620 mm
Number of yellow wires : 3
Number of red wires : 1
Number of black wires : 1
Number of plugs : 2

Flywheel Dimensions :
Exterior Diameter: 140.6 mm
Interior Diameter: 127.8 mm
Interior Diameter Center Housing: 22.4 mm
Exterior Diameter Center Housing: 50 mm
Thickness (exterior): 49.3 mm
Thickness (interior): 38.7 mm

Diameter of the Shaft largest to the narrowest :

37.4 mm
27.8 mm
22.4 mm

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS020-107992

Fitment:

2016 Polaris ACE 325 EFI L/C
2017-2019 Polaris ACE 500
2017-2019 Polaris ACE 570 EFI
2016-2019 Polaris ACE 900 XC Edition
2017 Polaris Farmhand 450
2016-2020 Polaris General 1000 EPS
2017-2020 Polaris General 4 1000
2015 Polaris Hawkeye 325
2017-2020 Polaris Ranger 500 4x4 EFI
2017 Polaris Ranger 500 4x4 EFI ETX
2014-2020 Polaris Ranger 570 EFI
2017-2018 Polaris Ranger 900 Diesel
2014-2020 Polaris Ranger Crew 570 EFI
2014-2017 Polaris Ranger Crew 900
2017-2018 Polaris Ranger Crew XP 1000
2017-2019 Polaris Ranger Crew XP 900
2015-2016 Polaris Ranger ETX 325 EFI
2017-2018 Polaris Ranger XP 1000
2013-2019 Polaris Ranger XP 900
2014-2018 Polaris RZR 4 900 EPS
2013-2014 Polaris RZR 4 900 EPS INTL
2014-2020 Polaris RZR 4 XP 1000 EPS
2012-2013 Polaris RZR 4 XP 900
2015 Polaris RZR 4 XP 900
2012-2020 Polaris RZR 570 EFI
2013 Polaris RZR 570 EPS
2015-2016 Polaris RZR 570 EPS
2014-2020 Polaris RZR 900
2014 Polaris RZR 900 INTL
2019-2020 Polaris RZR RS1 EPS 1000 EFI F/C
2017 Polaris RZR S 570 EPS
2015-2017 Polaris RZR S 900
2020 Polaris RZR S 900
2016-2020 Polaris RZR XP Turbo 900
2014-2020 Polaris RZR XP 1000 EPS
2014 Polaris RZR XP 1000 EPS INTL
2016-2020 Polaris RZR XP 4 Turbo EPS 900
2012-2013 Polaris RZR XP 900
2017-2019 Polaris Scrambler 850
2017-2020 Polaris Scrambler XP 1000 EPS
2019 Polaris Sportsman 450 4X4 EFI F/C
2016-2018 Polaris Sportsman 450 HO
2014-2018 Polaris Sportsman 570
2019 Polaris Sportsman 570 6x6
2019 Polaris Sportsman 570 EFI
2019 Polaris Sportsman 570 EFI HD F/C
2019 Polaris Sportsman 570 EFI UTE
2019 Polaris Sportsman 570 EPS
2014-2018 Polaris Sportsman 570 Touring
2019 Polaris Sportsman 570 Touring EFI EPS F/C
2017-2019 Polaris Sportsman 850
2017-2019 Polaris Sportsman 850 High Lifter Edition
2014-2015 Polaris Sportsman ACE 325
2015-2017 Polaris Sportsman ACE 570
2015 Polaris Sportsman ETX 325
2019 Polaris Sportsman SP 570 EFI F/C
2019 Polaris Sportsman SP 570 Touring EFI SP F/C
2017-2019 Polaris Sportsman SP 850 Touring
2015-2018 Polaris Sportsman X2 570
2019 Polaris Sportsman X2 570 EPS
2019 Polaris Sportsman X2 570 EPS Tractor EFI F/C
2016-2020 Polaris Sportsman XP 1000
2016-2019 Polaris Sportsman XP 1000 Tractor
2017-2018 Polaris Sportsman XP 1000 High Lifter Edition
2017-2018 Polaris Sportsman XP 1000 Touring
2017-2019 Polaris Sportsman XP 1000 Touring Tractor

Note: Image is for reference only, actual product may vary slightly.
