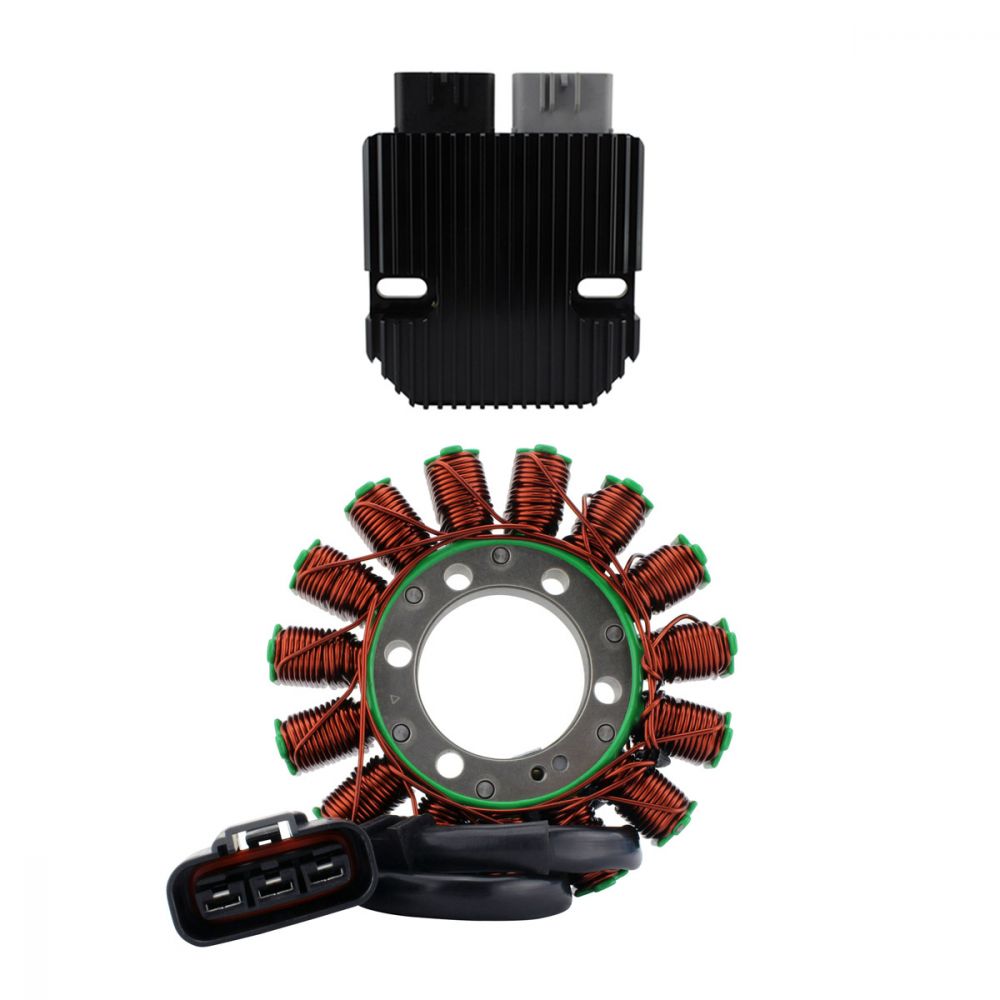

RMStator Generator Stator Kit For 2013-2022 Honda CBR600RR RMS020-108024
Customer Ratings
RMStator Generator Stator Kit For 2013-2022 Honda CBR600RR RMS020-108024
RMStator Generator Stator Kit For 2013-2022 Honda CBR600RR RMS020-108024
Brand new REVOLT Voltage Regulator
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!
RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products on the market
SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN NORTH AMERICA
REVOLT is engineered, designed, and manufactured in North America under strict quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
Join REVOLT, the new era of voltage regulation!
Generator Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
Technical Data
REVOLT Voltage Regulator Rectifier :
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C
Dimensions:
Interior diameter: 42 mm
Exterior diameter: 115 mm
Thickness: 12 mm
Length of wires stator to grommet: 100 mm
Length of wires grommet to plug: 365 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of pins: 3
Number of poles : 15
Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-108024
Fitment:
- 2013-2022 Honda CBR600RR
Note: Image is for reference only, actual product may vary slightly.
